Continuous High Quality PU Sandwich Panel Production Line

FOB Reference Price:Get Latest Price
$500,000.00 - $900,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
HS
Model Number:
custom made
Effective width:
400-1000mm
Steel thickness:
0.3-0.8mm
PU thickness:
30-200mm
PU Panel usage:
cold room, roofing, wall cladding, etc
Machine type:
Continuous working
Controlling:
PLC VF control
Raw material:
PPGI, GI, Aluminum
Voltage:
380V 50HZ 3phase
Certification:
CE ISO
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using film cover the machine for dustproof
Port
Shanghai
Lead Time :
about 120-150 days

Continuous High Quality PU Sandwich Panel Production Line



This PU sandwich panel production line is to make sandwich PU panel with the middle layer of anti-combustion polyurethane and with steel sheet/aluminum as the top and bottom surface layers. The sandwich PU can be 30-200mm in thickness, 1000mm in width, length determined by the customer.

The operation principle of this line is as follows: raw materials of rigid-foam are delivered into the mixing head through the metering pump on the injection machine and then injected onto the bottom facing sheet going to conveyors along with the top superficial sheet. Between the upper and lower conveyors, the liquid materials are hardened into solidity, then by an automatic tracking cutting mechanism, cut into segments according to the preset length. The line mainly consists of Decoiler, Roll forming machine, platform frame, PU foaming machine, belt conveyer, Cutting system, Control cabinet, etc.





Production process flow:

Upper decoiling – film covering -- roll forming

Bottom decoiling – film covering -- roll forming – Pre heating – PU foaming & injecting – PU solidifying – length cutting – run out – Auto stacking(optional)





Main technical parameters of the production line:

1. Production type: totally continuous production with PLC controlling

2. PU foam thickness: 30-200mm

3. Standard Sandwich Panel Size: max.1000mm in Width

4. Sandwich panel length: as per the customer need

5. Linear speed of production: 2-8m/min

6. Reciprocating times of injection head per minute: <60

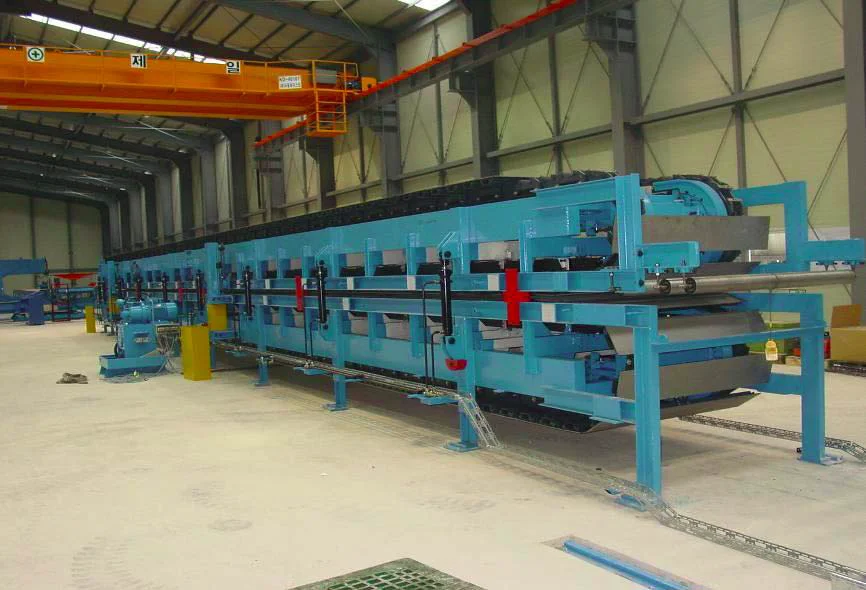

7. Conveyer structure: Double belt conveyer aluminum caterpillar

8. Foaming system: totally automatically continuous foaming, quantity of foaming could be stepless adjustable

9. Main Power of production: Depends on machine configuration

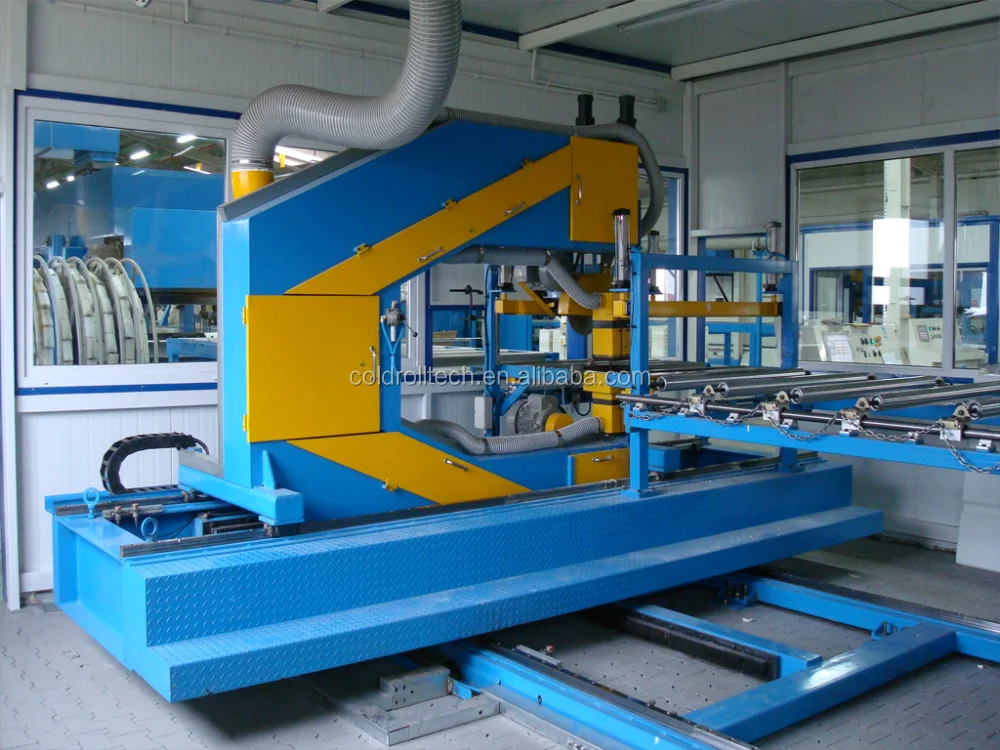

10. Length cutting: pneumatic piston driving, non-stop cutting via sliding table

11. Electronic controlling system: PLC controlling system, touch screen operation
