VPI Vacuum Pressure Impregnating Equipment for Motors and Transformers

FOB Reference Price:Get Latest Price
$20,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
HAOSHUO
Model Number:
custom made
Type:
VPI equipment
Tank size:
custom made
Limit vacuum:
50Pa
Leakage rate:
<100Pa.L/s
Working temperature:
to 80C
Fore pump:
Leybold Germany
Controlling system:
Mitsubishi PLC
Touch screen:
VienView HMI
Color:
As per customer need
Certificate:
ISO9001/CE
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
the tank covered with water proof cloth, other main parts are packed by wooden case
Port
Shanghai
Product Description

Product Application

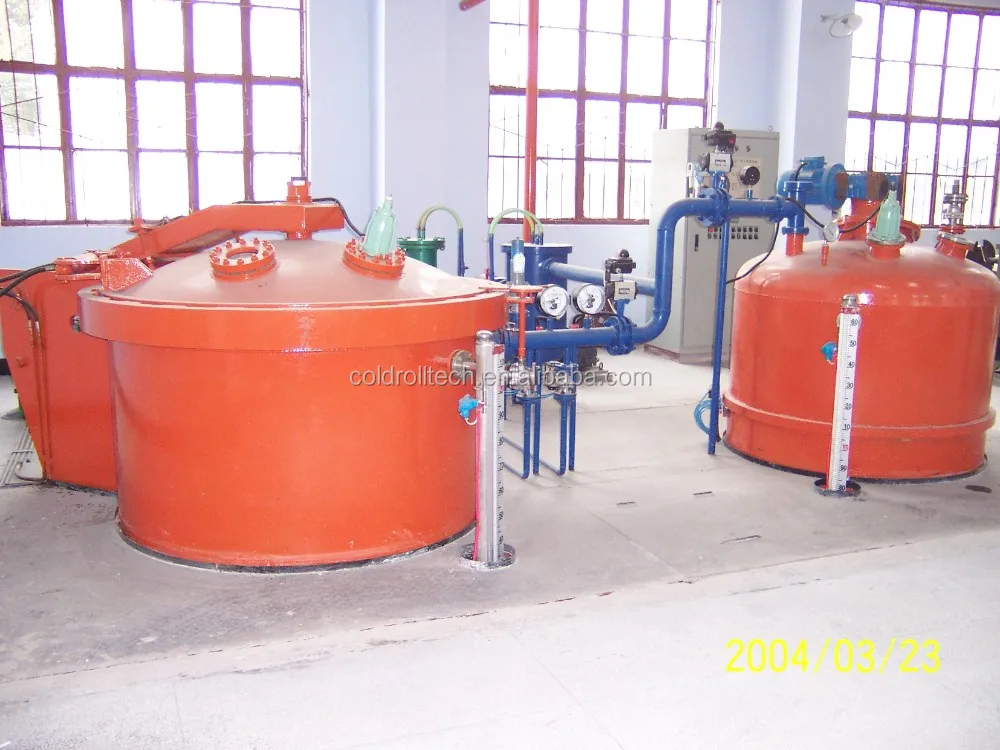

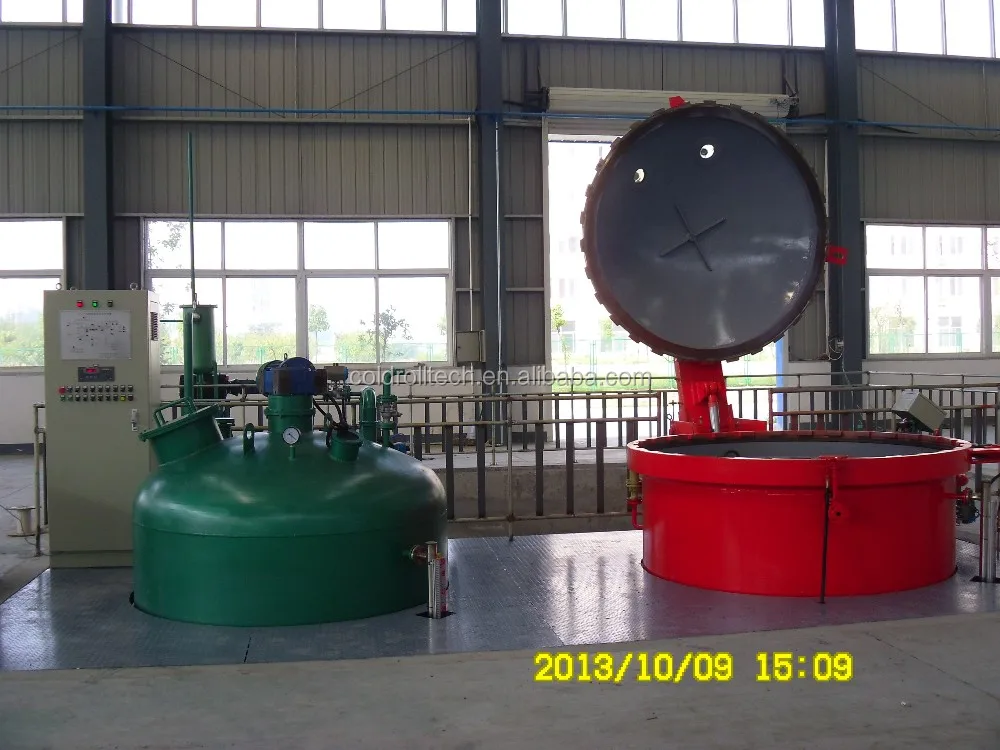

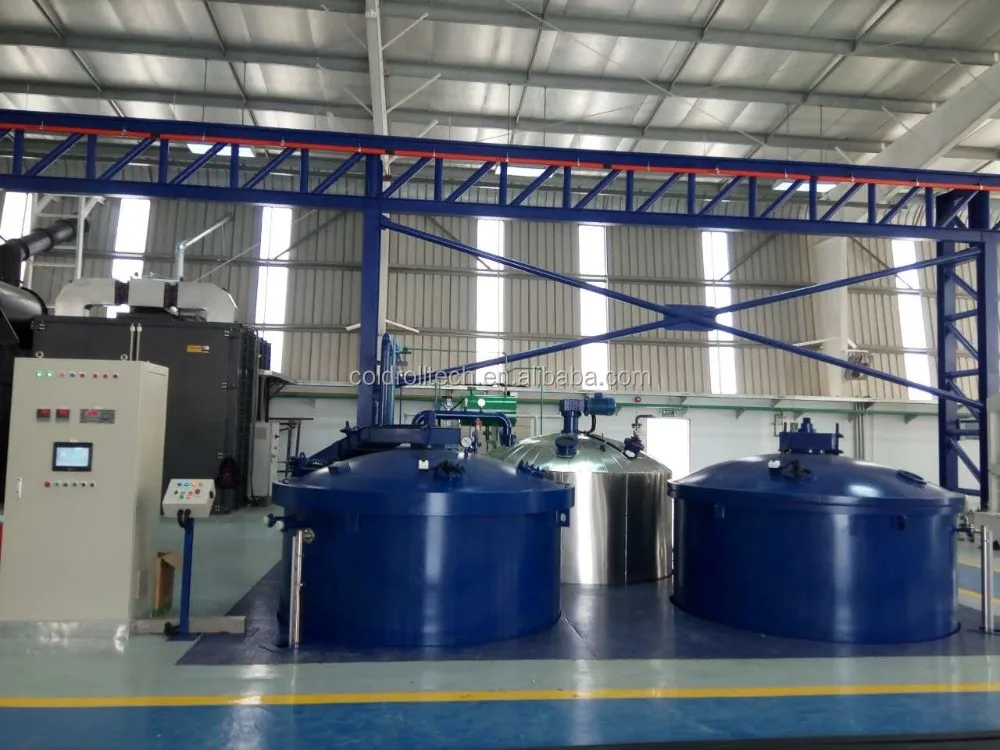

This VPI vacuum impregnation equipment is specially applicable to heat insulation treatment of high voltage motors, traction motors, special motors, anti-explosion pumps, magnetic motors, transformer coils, and other high voltage products. It effectively reduces the fault rate, improves the insulation performance, and prolongs its service life of the finished product. We can design and make equipment according customers’ requirements.

First, put workpieces into the vacuum pressure tank, evacuate the moisture and air from workpieces under vacuum condition. Then fill impregnation liquid into vacuum tank by pressure difference or pump. In order to impregnate fully, add certain pressure to let impregnation liquid impregnate into gaps of workpiece.

SPECIFICATIONS FOR VPI EQUIPMENT




VPI tank
effective inner size
mm
as per customer need
limit vacuum
Pa
50
leakage rate
Pa.L/s
<100
working pressure
Mpa
0.7
working temperature
°C
up to 80


Storage tank
working vacuum
Pa
100-1000
working temperature
°C
-10 to 80
Mixer
multilayer impeller mixing


Heating and Cooling system
heating power
KW
depends on tank size
heating efficiency
°C/h
5
cooling system
PC-3 cooling water system
cooling efficiency
°C/h
6

Controlling system
PLC
Mitsubishi Japan
HMI
VienView Taiwan
electrical element
Schneider France

Main Features

1) High quality and top brand products for the equipment components

2) PLC automatic cotnrolling with touch screen operating

3) High dielectric property and high efficiency, resin material recycle use

4) Equipped with complete safety alram and interlocking protection devices

Our Service

Pre-Sales Service

* Inquiry and consulting and technical support.

* Turn-key project one stop service.

* Visiting our factory and have face to face meeting.

After-Sales Service

* Installation and commissioning at site.

* Training the operating and maintenance for Buyer.

* Technical supporting and home service

Packing & Delivery
Packaging
Size
depends on the tank size
Container
one 20 feet or 40 feet FR container



Packaging Details

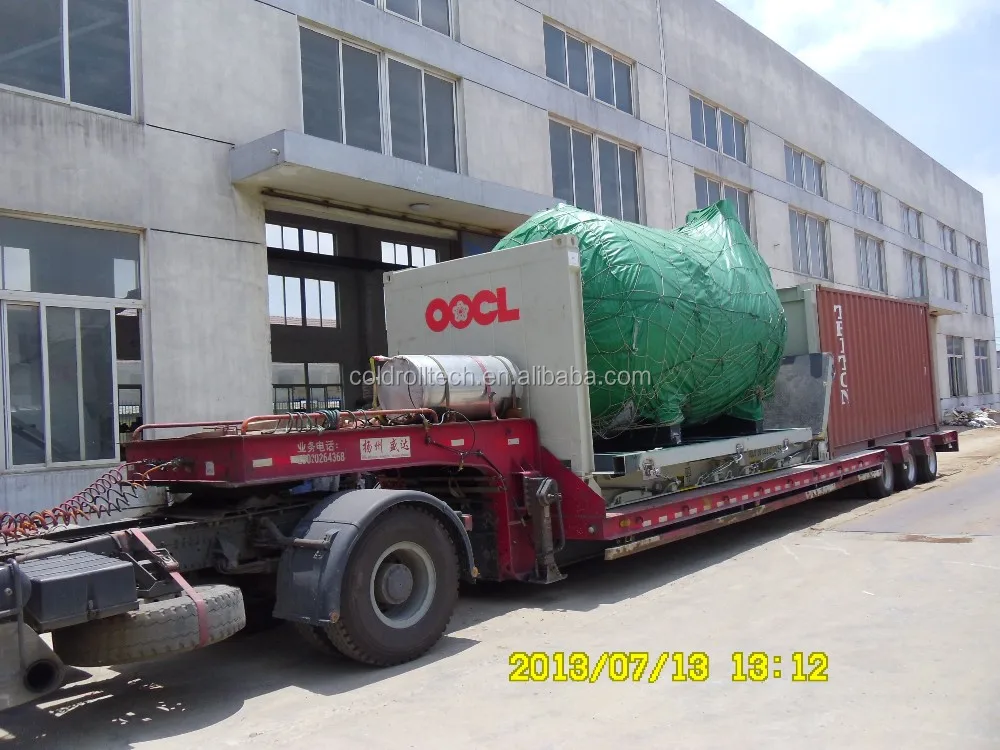

The tank is covered by water-proof cloths and tighted. The round tank will be fasten and welded on a steel plate, and then fixed on the container by wire rope.  In case customer need special packing such as wooden case, we can arrange as per need.
Packaging
Size
depends on equipment configuraion
container
one 20 feet GP container

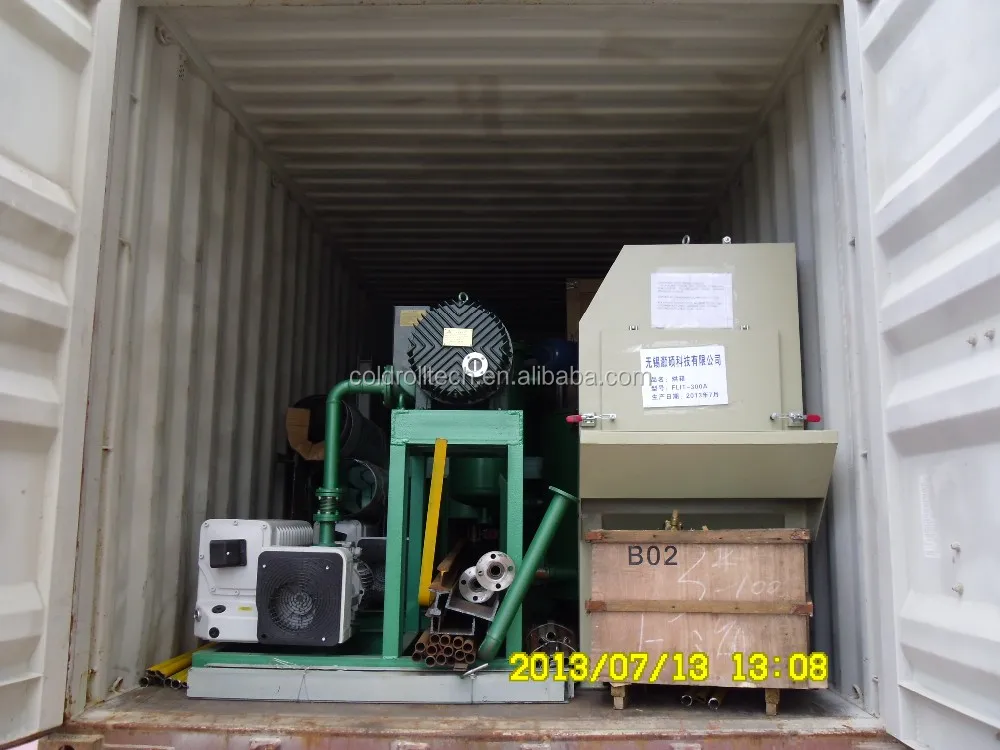

Packaging Details
The compoents and parts will be loaded into container and fastened by timber block. and then fixed and tighted by wire rope. In case customer need special packing such as wooden box, we can arrange as per need.
