Automatic Vertical coil winding machine for transformer

FOB Reference Price:Get Latest Price
$80,000.00 - $120,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Model Number:
LRJ-10
Condition:
New
Chuck rotating speed/ rpm:
0-10
Max capacity/t:
10
Chuck elevating:
0.5
Max torque/Nm:
9000
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Port
Shanghai
Lead Time :
Shipped in 45 days after payment
Product Description

Automatic Vertical coil winding machine for transformer

Product Application

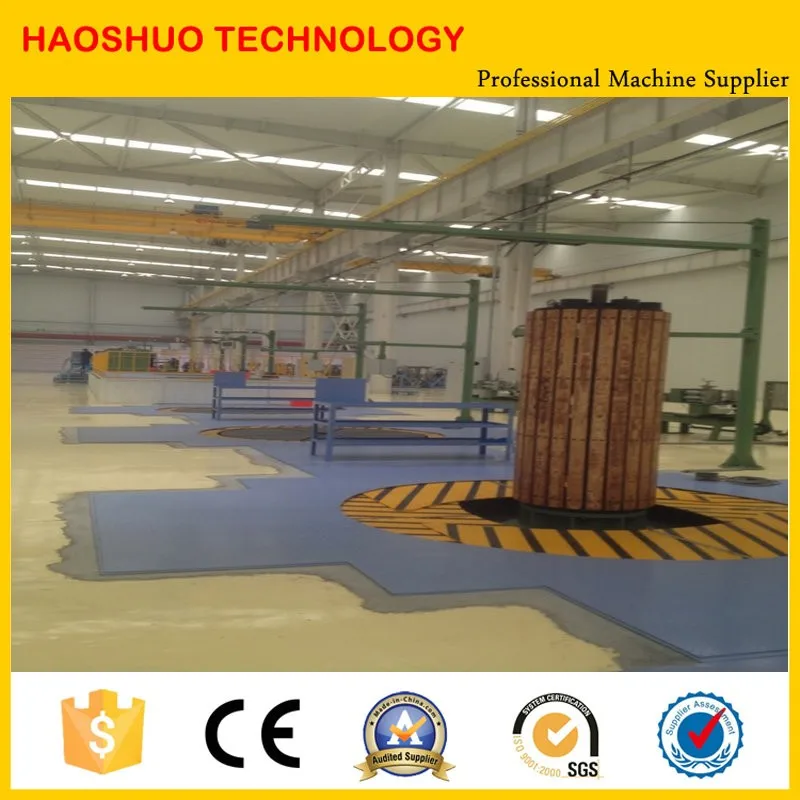

Vertical coil winding machine is winding coils for high voltage and super high voltage transformers. The machine has pit type and ground type, which is chosen based on workshop height.
The chuck can lift according to the height of coil and keep the working height. The machine adopts inverter control, it has stable start-up, low noise and easy operate etc advantages. The machine is equipped with electronic counter which can reduce turns when reversing. The machine is able to stop at pre-set turns automatically.

Automatic Vertical coil winding machine for transformer
Item
LRJ-10
LRJ-20
LRJ-25
LRJ-30
Max capacity/t
10
20
25
30
Chuck diameter/mm
φ1500
φ2900
φ2200
φ2800
Max turning diameter/mm
φ2200
φ3000
φ3400
φ3500
Chuck elevating stroke/mm
2200
3000
3000
3500
Max torque/mm
9000
15000
16500
23000
Chuck rotating speed/ rpm
0-10
0-10
0-10
0-10
Chuck elevating speed/mpm
0.5
0.5
0.5
0.5
Covering plate stretching speed/mpm
2.5
2.5
2.5
2.5
Covering plate stretching range/mm
Φ680-φ2232
Φ1040-φ3040
Φ1800-φ3600
Φ1800-3600
Dimension/mm
5086x4586x4263
6500x6000x5020
6856x6356x5020
6856x6356x5020
Quality Control

1. We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Alibaba with SGS assessment (Audit report can be provided).
