WRJ-10 Horizontal coil winding machine for transformer

FOB Reference Price:Get Latest Price
$80,000.00 - $120,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Model Number:
WRJ-10
Condition:
New
Certificates:
CE, ISO
Warranty:
12 Months
Max coil diameter/mm:
1800
Chuck diameter/mm:
1000
Height of main spindle/mm:
1400
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Port
Shanghai
Lead Time :
Shipped in 45 days after payment
Product Description

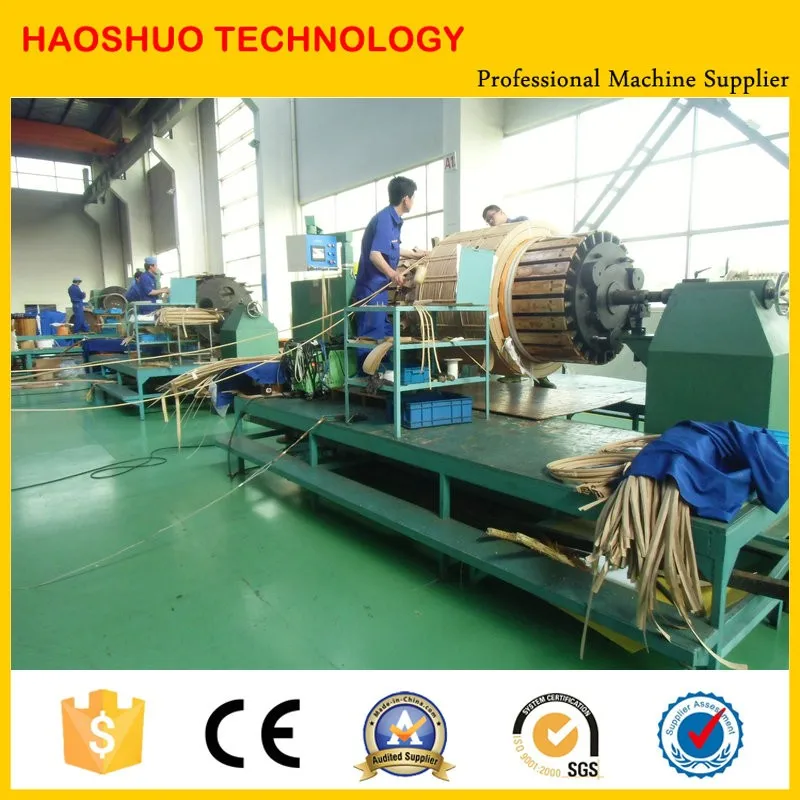

WRJ-10 Horizontal coil winding machine for transformer

Product Application

Horizontal coil winding machine is used for coil winding of big capacity transformers and reactors from 5 tons to 35 tons. The machine can be equipped with vertical and horizontal compacting devices and so the winding is more compact and even, and thus assures the quality of winding coils.
Equipped with advanced electronic counter which can count both positive and reverse turns, and also has power-off memorizing function.

WRJ-10 Horizontal coil winding machine for transformer
Item
WRJ-5
WRJ-10
WRJ-15
WRJ-20
Max load/t
5
10
15
20
Max coil diameter/mm
1500
1800
2000
2800
Chuck diameter/mm
750
1000
1400
1800
Distance between chuck and tail/mm
3000
3000
3500
4600
Height of main spindle/mm
1200
1400
1600
1800
Stroke of tail stock/mm
2000
2000
2000
2600
Turning range of compacting device
35°
Stroke of compacting head
500
750
750
750
Speed of main spindle/ r/min
0-10
0-10
0-10
0-10
Max. Vertical compacting force/ N
1200
1600
1600
1600
Max. Horizontal compacting force/N
2500
3000
3000
3000
Max. Torque/Nm
8000
15000
20000
25000
Quality Control

1. We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Alibaba with SGS assessment (Audit report can be provided).
