Automatic coil winding machine for HT transformer coils

FOB Reference Price:Get Latest Price
$11,000.00 - $20,000.00 / Sets | 1 Set/Sets Automatic coil winding machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Automatic coil winding machine
Model Number:
GRX-600, 800, 1200
Condition:
New
Name:
Automatic coil winding machine
Wire spec:
flat and round wire
Flat wire size:
4x15mm
round wire size:
0.3-3mm
Winding height:
600, 800, 1200 mm
Winding speed:
0-200, 150, 100 rpm
Control:
Servo control
System:
PLC and HMI
Voltage:
380v/50HZ(as Customers' Request )
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
machine packed by wooden case, the approx packed dimension is 2500x2200x1800mm
Port
shanghai
Lead Time :
60 days
Product Description

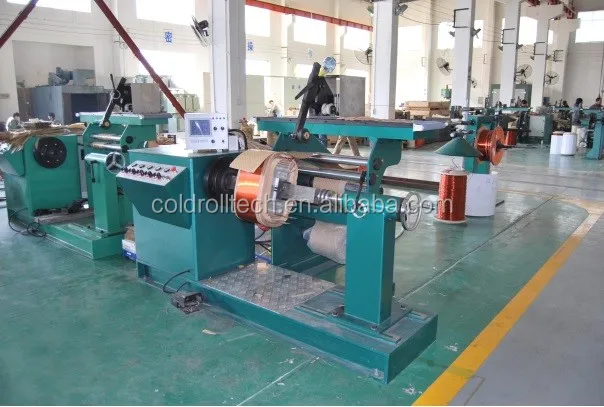

Automatic coil winding machine is suitable for alll types of small and medium sized distribution transformer coil windin. It consist of winding main machine, automatic wire arrangement, layer insulation supply device, a two-axis tension wire decoiler, pneumatic system, PLC and servo control system, etc. This machine is able to do coil winding axial tightness and firmness, especially suitable rectangular coil winding.

Main Features


●High precision conductor traversing

●Hard gear speed adjusting system

●Servo controlling for high quality winding

●PLC control, touch screen operating

●Relibale and sensitive starting and braking

Main Specification
Item
Data
Suitable coil outer diameter
≤600 mm
Suitable coil inner diameter
≥80 mm
Axis length
≤800 mm
Total weight
≤500 kg
Wire spec
width 0.4mm-10mm, round or flat
Work torque
600mm
Winding speed
0-200r/min
Counter max set
9999.9
Auto wire arrangement
wire distance min 0.01mm
Total weight
1600kg
Outer dimension
2500mm*1300mm*1200mm
