Automatic Radiator Production Line for Transformers

FOB Reference Price:Get Latest Price
$400,000.00 - $1,000,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
320, 380, 480, 520
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 180 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Condition:
New
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Application:
Transformer Industries
Type:
Fully Automatic
Product Type:
Steel pressed panel radiator
Radiator Size:
320, 380, 480, 520
Raw material:
Carbon steel, Stainless steel
Thickness:
0.9 - 1.2 mm
Product length:
500 - 4000 mm
Controlling system:
PLC+Touch Screen
Power:
315KVA
Capacity:
2000 - 2500 Ton / Year
Supply Ability
Supply Ability:
10 Set/Sets per Year
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 180 To be negotiated
Product Description

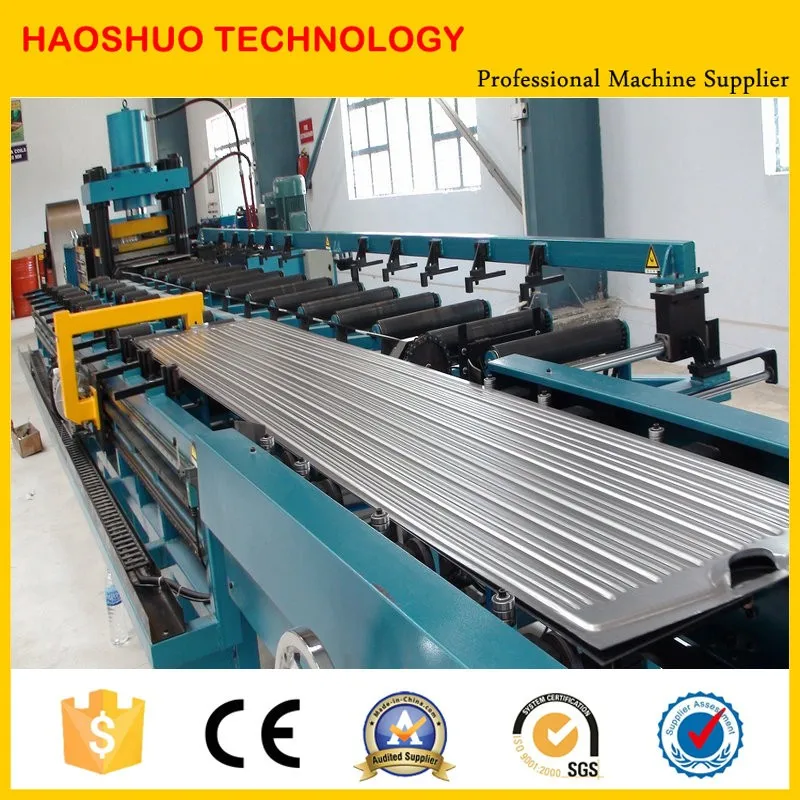

Automatic radiator production line for transformer

Product Application

Our automatic radiator (for transformer) production line is quality and stable line with fully automatic working. Our machine performance reaches the international standard class, and the price is much economical and competitive. The whole line is composed of automatic decoiler, roll former, turn over platform, multiple spot welder, side seam welding machine, head welding machine, side shearing machine, head cutting machine, and forwarding table, etc. The size is 320, 460, 480, 520, 535, or custom-design (as per client's actual requirement). Panel length is 500mm-4000mm.The whole line is fully automatic, the product quality is good, and the performance reaches the first-rate in the world.


The specifications of Automatic radiator production line for transformer

Item
Data
Standard panel size
310mm, 320mm, 460mm, 480mm, 520mm, 535mm, etc
Panel length
500-4000mm
Length tolerance
±1.0mm
Panel bearing pressure
Positive pressure≥ 0.15Mpa, negative pressure ≥ 133Kpa, without deformation
Panel material
ST12, SPCC, DC01 cold rolled steel, 1.0-1.2mm
Total power
Approx 315KW
Total line dimension
46.5m X 3.5m
Oil fluits size
Steel thickness 1.0mm
≥ 11mm
Steel thickness 1.2mm
≥ 11.5mm
Number of oil fluits
Panel 310mm, 320mm
3
Panel 460mm, 480mm
5
Panel 520mm, 535mm
6
Input coil width
Panel 310mm
325mm
Panel 460mm
475mm
Panel 520mm
535mm
Quality Control

1. We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.
