Low voltage foil winding machine for dry type transformers

FOB Reference Price:Get Latest Price
$40,000.00 - $100,000.00 / Sets | 1 Set/Sets Low voltage foil winding machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Low voltage foil winding machine
Model Number:
Low voltage foil winding machine
Name:
Low voltage foil winding machine
Color:
Requirement
Certification:
CE ISO
Warranty:
1 Year
Material:
Steel Material
Voltage:
380V 50Hz 3Phase/Customized
Type:
Fully Automatic
Function:
Low voltage foil winding machine
Machine type:
winding
Product name:
Low voltage foil winding machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
45 Set/Sets per Year Low voltage foil winding machine
Packaging & Delivery
Packaging Details
Low voltage foil winding machine
one 40 feet container for shipment seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using film cover the machine for dustproof
Port
shanghai
Lead Time :
45
Product Description

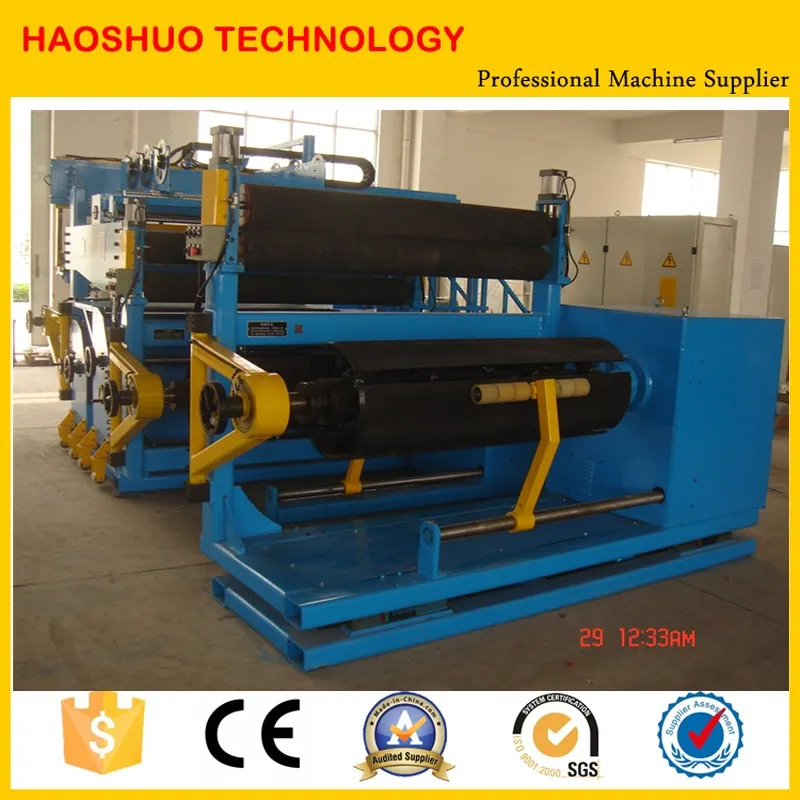

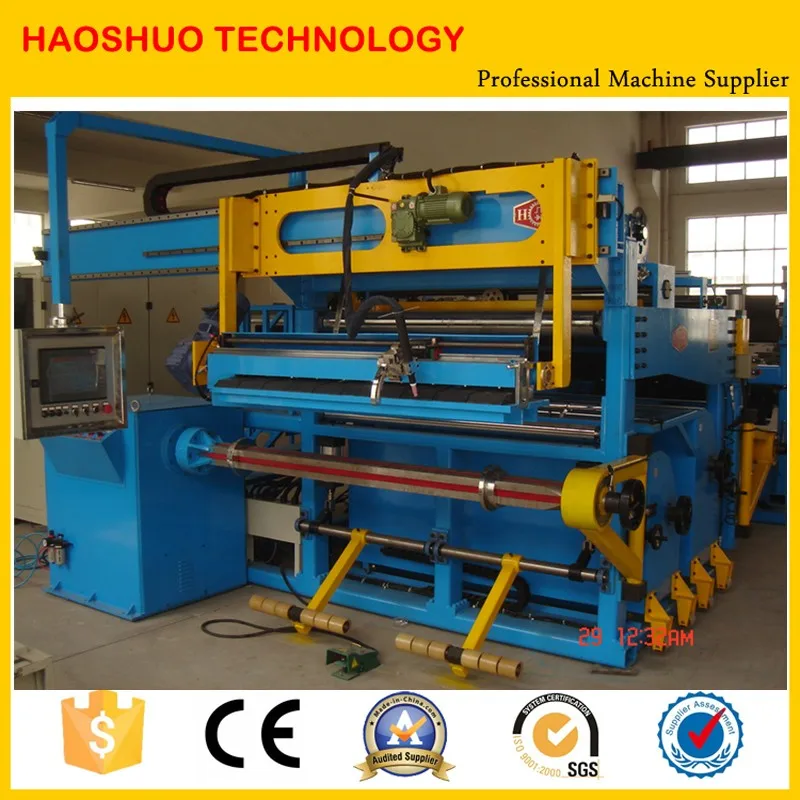

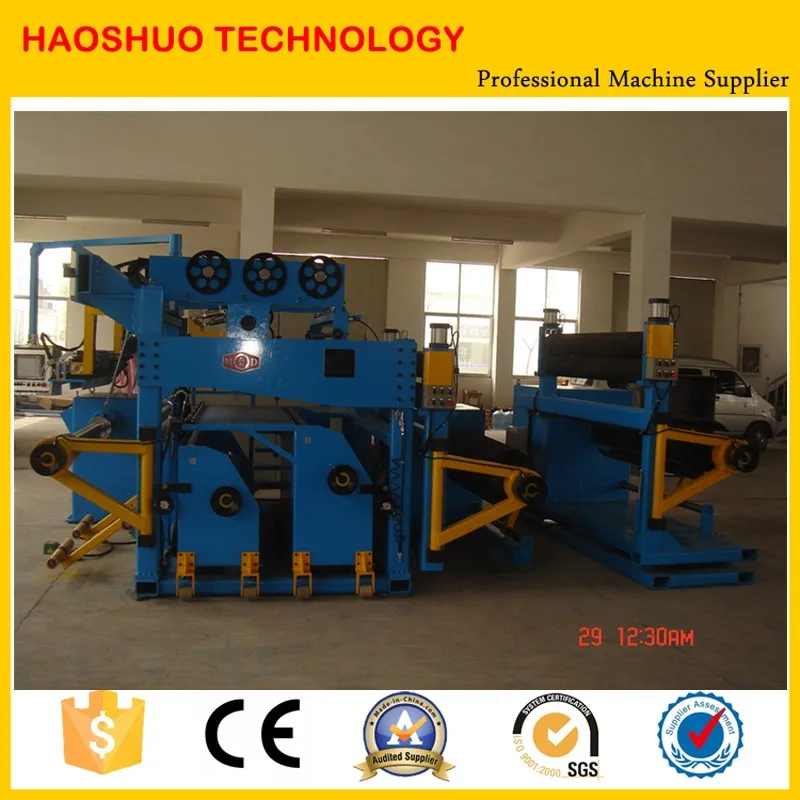

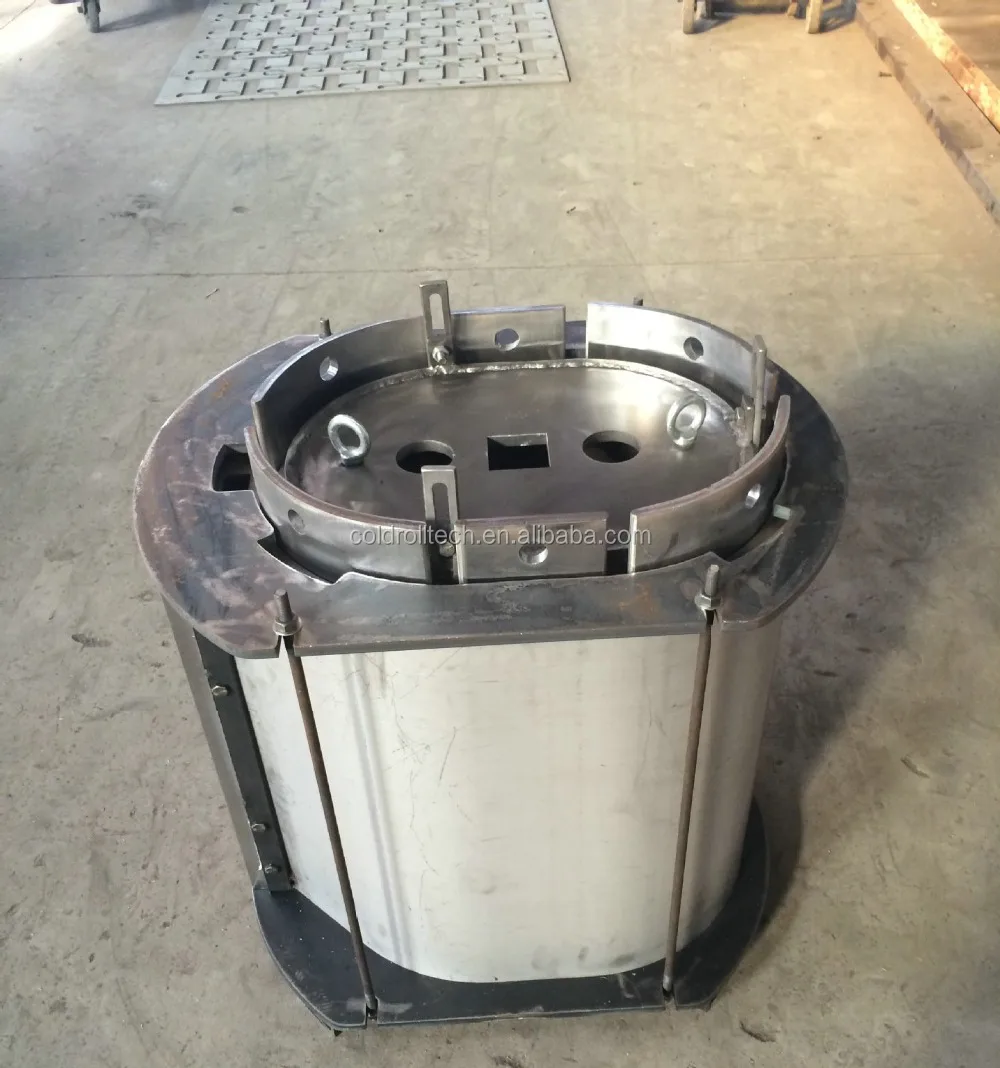

This Low Voltage Foil Winding Machine is suitable for voltage under 1KW level transformer windings.The machine can lap winding and duplex winding for two layers of copper or aluminum foil. The machine equipped with welding unit and two sets of shears. All the production parameters are set on the Human-Computer Interface and the machine works in fully automatic.

Main Components
Main Machine Components

●VF controlling stepless speed foil winding unit

●Main machine frame with foil pressing, insulation edge cutting, photoelectric correction, conductor traction

●AC/DC water- coolng rotatable TIG welding unit

●Eletrical conductor sheating unit, 2 sets

●Insulation decoiling car, 2 sets

●Conductor decoiling car, 2 sets

●Pneumatic positioning end insulation filling system, 2 sets

●PLC controlling and touch screen operation system

Main Specification
Techniacl Parameter
BRJ400-2
BRJ600-2
BRJ800-2
BRJ1000-2
BRJ1400-2
Foil width
400mm
600mm
800mm
1000mm
1400mm
Winding diameter
φ130-600
φ130-800
φ130-800
φ130-1000
φ130-1000
Winding type
Round / Rectangle
Material thickness
Copper : 0.2-2.0mm, Aluminum: 0.3-3.0 mm
Foil decoiler capacity
500KG
1000KG
1500KG
2000KG
2500KG
Winding power
11KW
11KW
11KW
15KW
22KW
Winding speed
0-30r/min
0-26r/min
0-24r/min
0-20r/min
0-18r/min
Welding type
TIG
Cutting type
Electrical roll cutting
Layer insulation width
≤450mm
≤650mm
≤850mm
≤1050mm
≤1450mm
Instation diameter
φ76-400mm
φ76-400mm
φ76-400mm
φ76-400mm
φ76-400mm
Rectification
Photoelectric sensor automatic rectifying
Rectification precisio
±0.5 (mm)
±0.5 (mm)
±0.5 (mm)
±0.5 (mm)
±0.5 (mm)
Controlling
PLC automatic control
Recording
0--9999.9, precision 0.1
