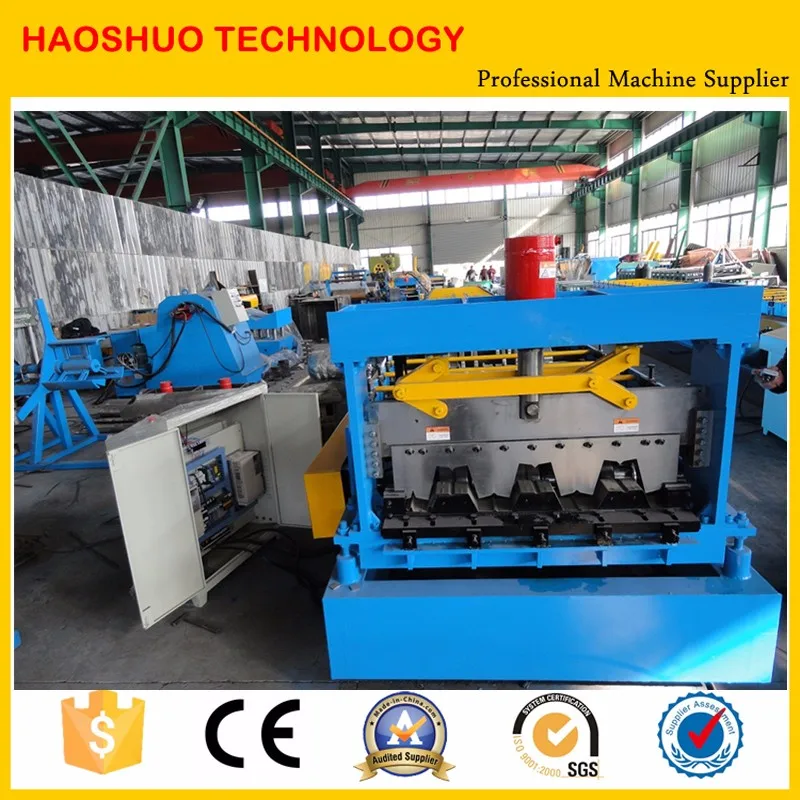

Floor Decking Tile Forming Machine

FOB Reference Price:Get Latest Price
$28,000.00 - $50,000.00 / Sets | 1 Set/Sets Steel Floor Deck Roll Forming Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Steel Floor Deck Roll Forming Machine
Production Capacity:
8-12m/min
Power(W):
5.5KW
Certification:
CE/ISO9001
Condition:
New
Tile Type:
Steel
Use:
Roof
Place of Origin:
Jiangsu, China
Brand Name:
Steel Floor Deck Roll Forming Machine
Model Number:
Steel Floor Deck Roll Forming Machine
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
6500*1300*1100
Weight:
3.2T
Forming profile:
Steel deck, as per your drawing
Forming thickness:
0.8-1.2mm, or more
Forming material:
Galvanized steel, etc
Forming stands:
26
Main power:
22KW
Encoder:
Omron, Japan
Inverter:
Yaskawa/Panasonic
Control system:
Panasonic/Mitsubishi PLC
Operation:
touch screen operation with switch button
Work speed:
8-15m/min
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
10 Set/Sets per Month linesSteel Floor Deck Roll Forming Machine
Packaging & Delivery
Packaging Details
One 40 GP and one 20GP containers for shipment
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Lead Time :
about 40-60 days
Product Description

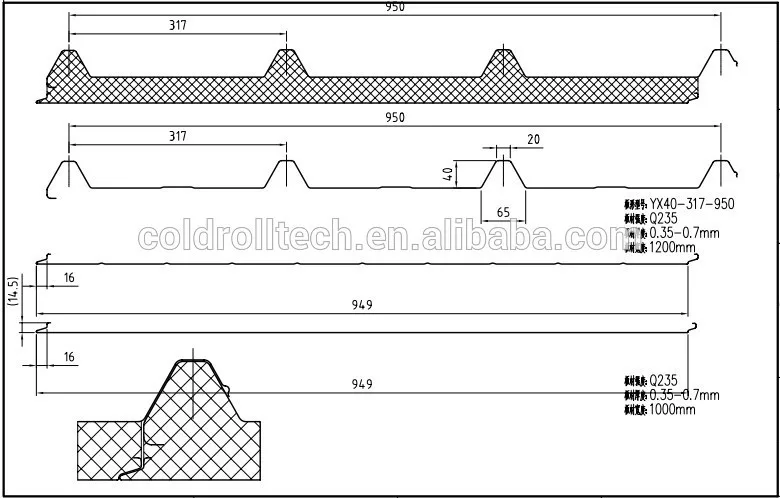

We can also design detal deck roll forming machine according to your specific profile drawing.

MAIN TECHNICAL PARAMETERS OF EQUIPMENT
Material of roller
GCr15 quenching
Hydraulic oil
46# hydraulic oil
Drive type
Gearbox driven/Chain drive
Control system
PLC Panasonic
Voltage parameters
380v,50Hz,3 phase
Gear oil
18# hyperbolic gear oil
Srength of material sheet
>350Map
Hydraulic power
5.5kw - 7.5kw - 11kw
Cutting device
Hydraulic cutting/Flying saw cutting
Suitable material
low carbon steel ,galvanized steel coil,etc
Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

4) No need foundation, easy operation

Our Service
Packing & Delivery

Our normal packaging is: All the conponents of machine totally fixed by angle steel or ropes,with PE film covered,in one 20gp container or 40ft container.If you have any special requirement on packaging,we will do for you.

Our Company
FAQ

1.Q:What's the MOQ
    A:One set.

2.Q:Are you manufacturer?Where is your factory?
    A:Yes,we are manufacturer.We manufacture and sell the whole equipments of roll forming line,including manual or                     hydraulic decoiler,the whole roll forming roller,universal or automatic stacker,punching machine etc.Our factory is located       in Wuxi city,Jiangsu Province,China,very near Shanghai airport.Warmly welcome you to visit our factory.

3.Q:Is there any guarantee of your machine?
    A:We have 12 months warranty period.During the warranty period,we can provide enginners over sea service if you                     need.After out of warranty,we will provide all the technical support all the uselife.

4.Q:This is my first time buying machine overseas,how can I trust you?
    A:We have many customers all over the world.Some customers have become our agents later.Just give us the chance,we         will definitely not disappoint you.
