New Model CZ profile changeable C Z Purlin Roll Forming Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $60,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Power(W):
approx 30KW
Certification:
ISO
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
235---550 Mpa
Production Capacity:
8-12m/min
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Model Number:
100 - 300
Voltage:
380V/50HZ 3Phase(as Customer's Request)
Dimension(L*W*H):
20000X1800X1600mm
Weight:
approx 12 tons
Control system:
PLC and touch screen
Production:
100 - 300 C and Z sections
Size adjusting:
Motor driven automatic
Punching:
2 sets
Cutting:
Hydraulic pre-cutting
Shaft material:
45# High Grade Steel
Roller material:
Cr12 Steel Quenched
Cutting blade material:
Cr12Mov
Decoiler:
Manual
Raw material:
Cold rolled steel, GI
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Lead Time :
about 45-60 days
Product Description

WHAT'S C Z PURLIN MACHINE?

This C Z purlin forming machine is used to manufacture series of C and Z sections. The machine is mainly composed of uncoiler, flattening device, punching device, cutting equipment, roll forming machine, collection table, hydraulic station, and control system, etc. It can produce 100 - 300 wide C and Z purlins, height from 45 - 80mm. The raw material is cold rolled steel, galvanized steel, etc, material thickness is 1.5 - 3mm.


WHAT'S THE PROPERTIES OF THIS MACHINE ?

One machine can produce C and Z sections.  Rotate the forming stands, can easily change C to Z production. The width and height adjusting by motors, directly operate on touch screen.

Machine frame heat treatment for interior stress release, the surface is precision milled. Rollers, shafts are using high grade steel,  ensure the durable and reliable quality.

Online has two sets of punching device, to punch the connecting and screw holes. After roll forming there is calibrating rolls to straight the profiles

Machine adopts PLC and touch screen operating, all parameters can be set on the screen. Very easy to manage.


HOW TO OPERATE ?

The machine is totally controlled by PLC system. So only by inputting related production data such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and carry out relevant operation.

Main Parameters

UNCOILER
1
Coil Inner Diameter: 508mm
2
Coil Outer Diameter: max 1400mm
3
Loading Weight: 5T
4
Material width: max 600mm
5
Type: Munally

FEEDING DEVICE

1 .Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
2 .Feeding type: Adjustable
3 .Feeding type: Adjustable
4 .Entrance and guide roller: Diameter is ¢65mm, material is SAE1045, HRC48-52° surface with chrome

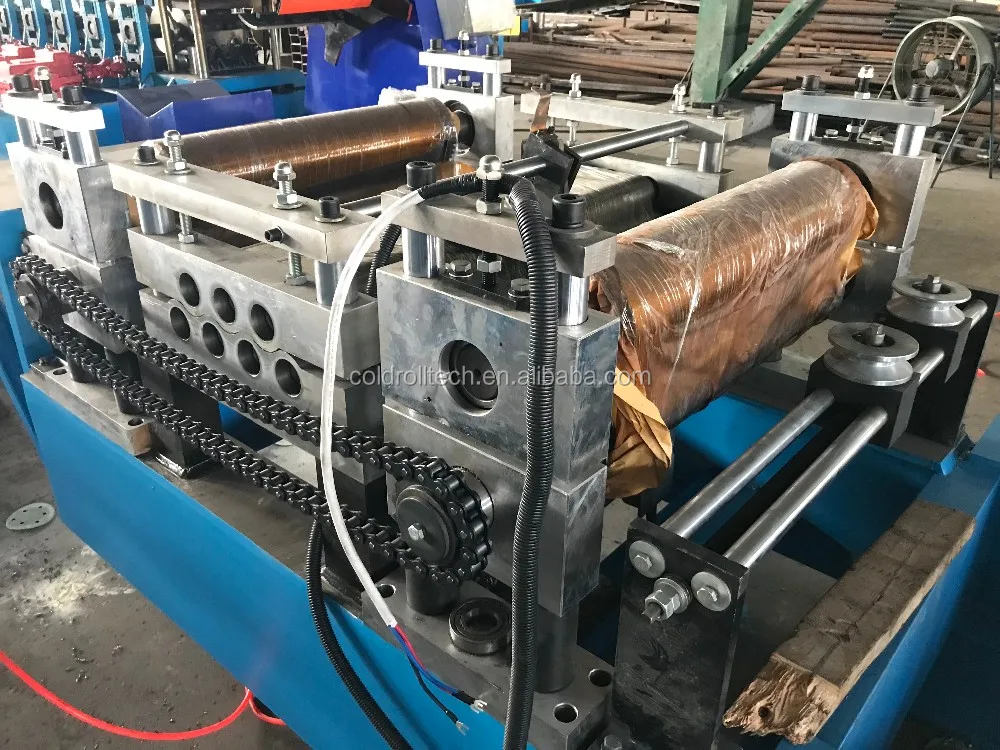

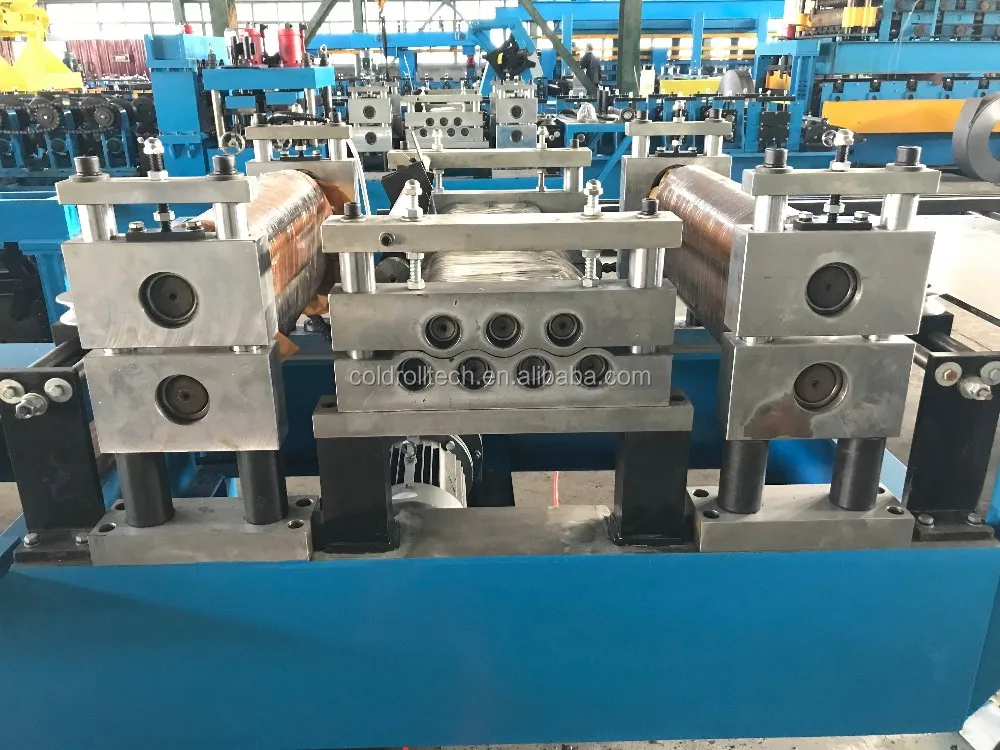

LEVELING DEVICE

1 ..The quantity of leveler rolls must be planned according to thickness 1.5mm to 3.0mm.
2 ..Flattener roller: Upper is 3 rollers, down is 4 stations(total is 7 rollers)
3 ..Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
4 ..Diameter of flattener shaft: ¢76mm, material is SAE 1045, hardening and tempering
5 ..Drive by motor: 4kw AC motor (guomao of china)

PUNCHING HOLES DEVICE

1 ..Base on customer provide punching drawing, this machine need adopt two units hydraulic punching system
2 ..The punches will be connected to a single hydraulic unit having tank, motor, pump, pressure control valves, pressure gauges, solenoid valves, hydraulic hoses, all designed to operate safely at the required operating pressure; also to facilitate changing O-ring they must be of standard size, also consider suitable cooling unit.
3 ..The punches and dollies will be CR-12, hardness HRC 58-62 and chrome coating both punches and dolies should be easily replaceable without requiring disassembly of complete units.
4 ..The whole punching operation should be automated and controlled by a program installed in the PC which is located in the operator's console.
5.. Hydraulic power: 5.5kw

PRE-CUTTING DEVICE

1..Cutting type: Hydraulic, connect with the punching hydraulic unit
2.. Cutting power by hydraulic, 5.5KW AC motor
3 ..Hydraulic working pressure: 12-16Mpa
4 ..Cutting before forming: Cut the sheet before roll forming to required length
5.. Feeding of the last cut profile from the equipment: Automatic if the length of the last profile is not less than 1500 mm
6 ..Profile transversal cutting device units allowing to cut the bent profile without damaging the metal coating and to assure a smooth cut
7.. Cutting motion: The roll forming part is NON-stop when cutting
8 ..Material of blade:Cr12 with heat treatment
9 ..Length measuring: Automatic encoder length measuring, brand: Omron

MAIN ROLL FORMING MACHINE

1.. Material of the profile: Steel sheets for cold bending according to EN 10346 or equivalent requirements, steel grades to (at least) S450 GD, or other grade of steel with equivalent yield strength, with metal coating from Z100 to (at least) Z350;
2 ..Thickness range: 1.5-3.0mm
3 ..Maximum production speed: Not less than 10 meters per minute (for non-perforated profiles, excluding cutting)
4.. Main motor power:22kw, AC motor, motor inside of main machine (brand: Guomao of china)
5 ..Adjust flange and width motor: 1.5KW x3 motor inside of main machine (brand: Guomao of china)
6.. Machine voltage, frequency, phase:380 V, 60 hz, 3Phase
7.. Roll station:20 stations
8.. Roller material:ASTM52100 chrome plated surface with hardness 58-62 degree ,CNC,
9.. Shaft diameter: ¢76mm material: SAE1045 with quenching and tempering
10.. Transmission: By chain, one inch, double line
11.. Roll former has leveling bolts in the base for adjust the leveling
12 ..Machine base frame adopt H beam welding steel
13.. In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
14 ..Machine adopt iron cast as station to make machine in strong
15.. To avoid accidents,all of drive part adopt protect cover
16.. Color of machine: Blue and yellow (or base on customer request)
