Vacuum Pressure Impregnation Equipment for rotor, stator of the big motors

FOB Reference Price:Get Latest Price
$30,000.00 - $150,000.00 / Sets | 1 Set/Sets Vacuum pressure impregnation equipment (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Vacuum pressure impregnation equipment
Model Number:
Vacuum pressure impregnation equipment
Condition:
New
Application:
vacuum pressure impregnating
Voltage:
380v/50HZ(as Customers' Request )
Certification:
CE ISO
Tank size:
Custom made
Control:
PLC / IPC
Limit vacuum:
50 Pa (0.5mbar)
Max pressure:
0.7Mpa
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Quarter Vacuum pressure impregnation equipment
Packaging & Delivery
Packaging Details
Vacuum pressure impregnation equipment
This kind of machine should adopt nude packaging and sea shipping by container.
Port
shanghai
Lead Time :
60 days
Product Description

This kind of equipment is mainly application of insulation processing for electrical products, such as high voltage motor, generator, H class dry type transformer, power capacitor, cable insulation, and motor repairing, etc. For example, coil windings of motor or transformer can be evaporated at vaccum condition to reduce influence from moisture, air or other impurities. With pressure imoregnation, resin can be immersed into inner side to make the high insulation class. VPI equipment is also used in material industru for improving material performance.

Technology Advantage


Easilly evaporate moisture and air

Residual water rate less than 10ppm, good insulation performance

Good humidity resistance

High dielectric property

Resin materials recycle use

High efficency with good quality

Equipment Features


Integrated pressure vessel, vacuum, pressurization, cooling,heating and automatic controlling

PLC controlling and touch screen operating

Equipment with safety alarm and inerlock protection device

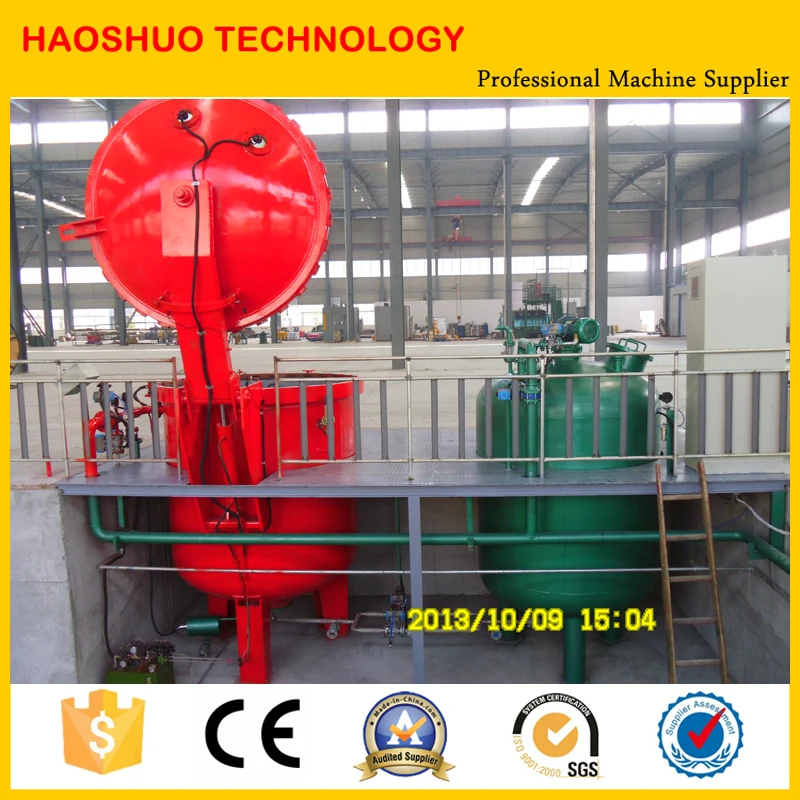

Main Components
1

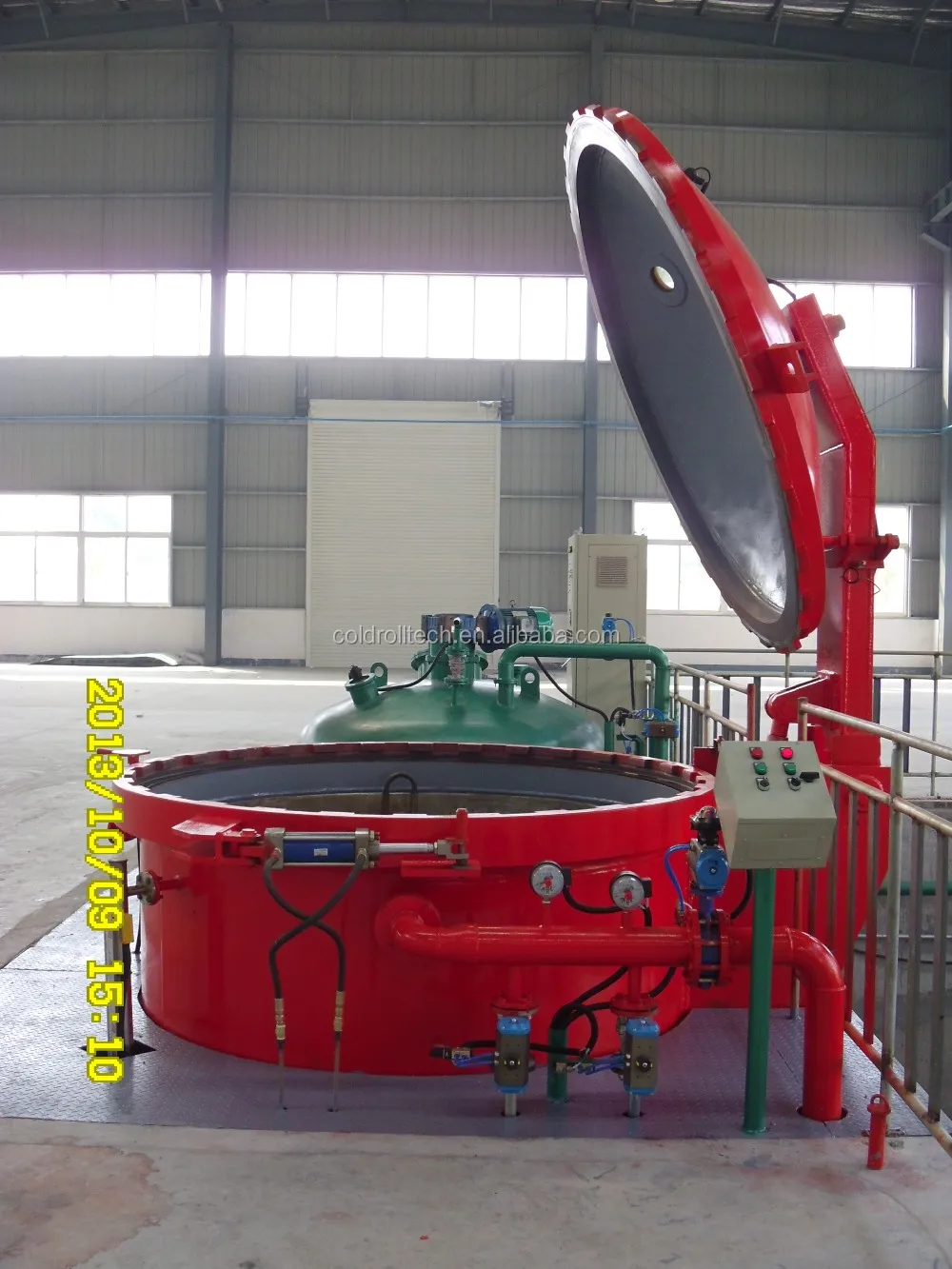

Vacuum pressure impregnating tank
2
Vacuum storge tank
3
Vacuum pump system
4
Compressed air filter
5
Heating and Cooling system
6
Hydraulic sysytem
7
Resin feedback system
8
Controlling system
9
Ventilation system
10
Steel platform
