Containerized Portable Bemo Sheet/ Standing Seam Roll Forming Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
C-bemo
Power(W):
5.5KW
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Tile Forming Machine
Production Capacity:
8-15M/Min
Certification:
CE/ISO9001
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Tile Type:
Glazed Steel
Use:
Roof
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
5000*800*1200Mm
Weight:
3.2T
Shaft material:
High grade 45# steel
Shaft diameter:
76mm
Material of forming rollers:
45# steel, hard Chrome Coated with 0.05mm
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Touch Screen:
MCSG
Material of Cutting Blade:
Cr12
Cutting type:
Hydraulic Cutting
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment.
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
A LETTER FOR YOU

Dear buyer,

1. Please feel free to contact us.

2. Send us details, so that we can make a quotation for you.

3. Click ' Add to Compare' if you have any interest.

Waiting for your inquiry!

Thanks&regards,

Shirley

Whatsapp: 0086 18800561506
Wuxi Haoshuo Technology Co., Ltd.

Product Description

This roll forming machine for standing seam roof is equipped with high durability and convenient management. It is available to produce roof products of plate and arch types. The angle and length of arch can be easily adjusted. Fabricated products are rigid without damage on the surface, and it is easy to install. The equipment can be mounted in a 40 ft container, then it is available to manufacture products at construction sites, as it can be used as traveling equipment.

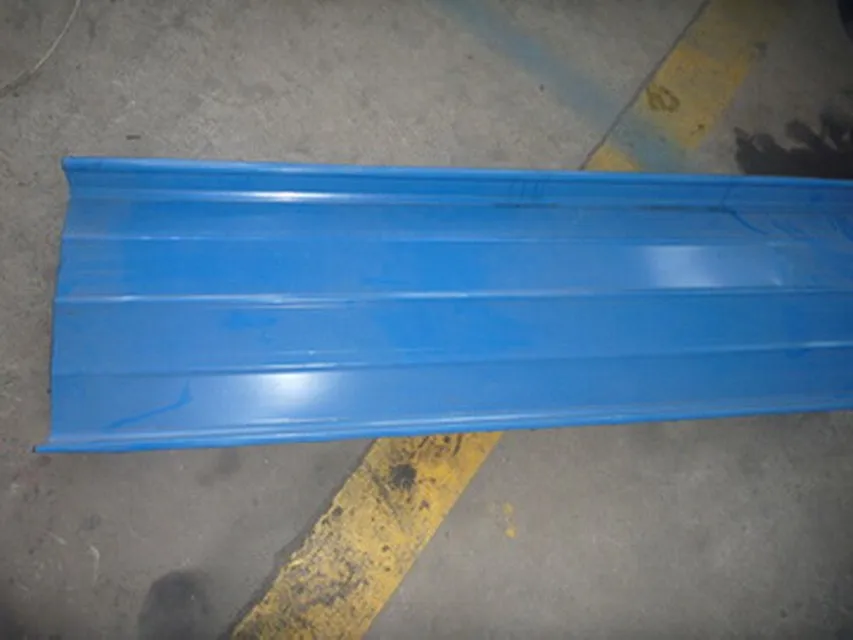

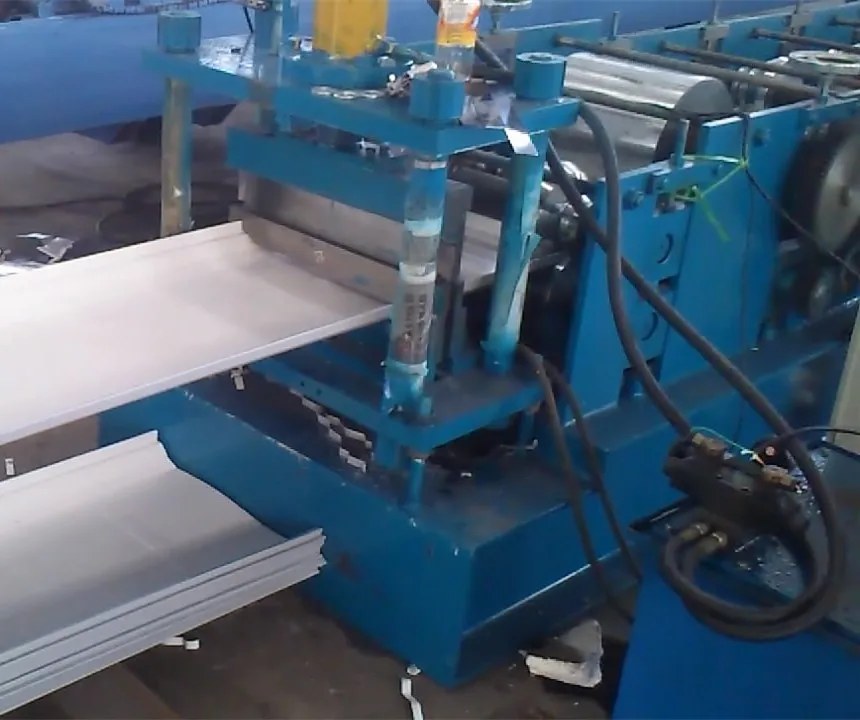

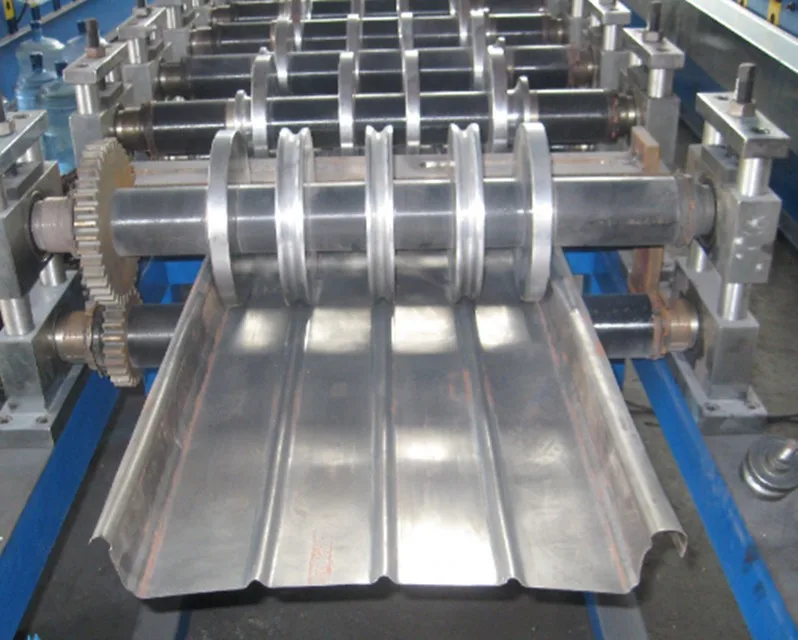

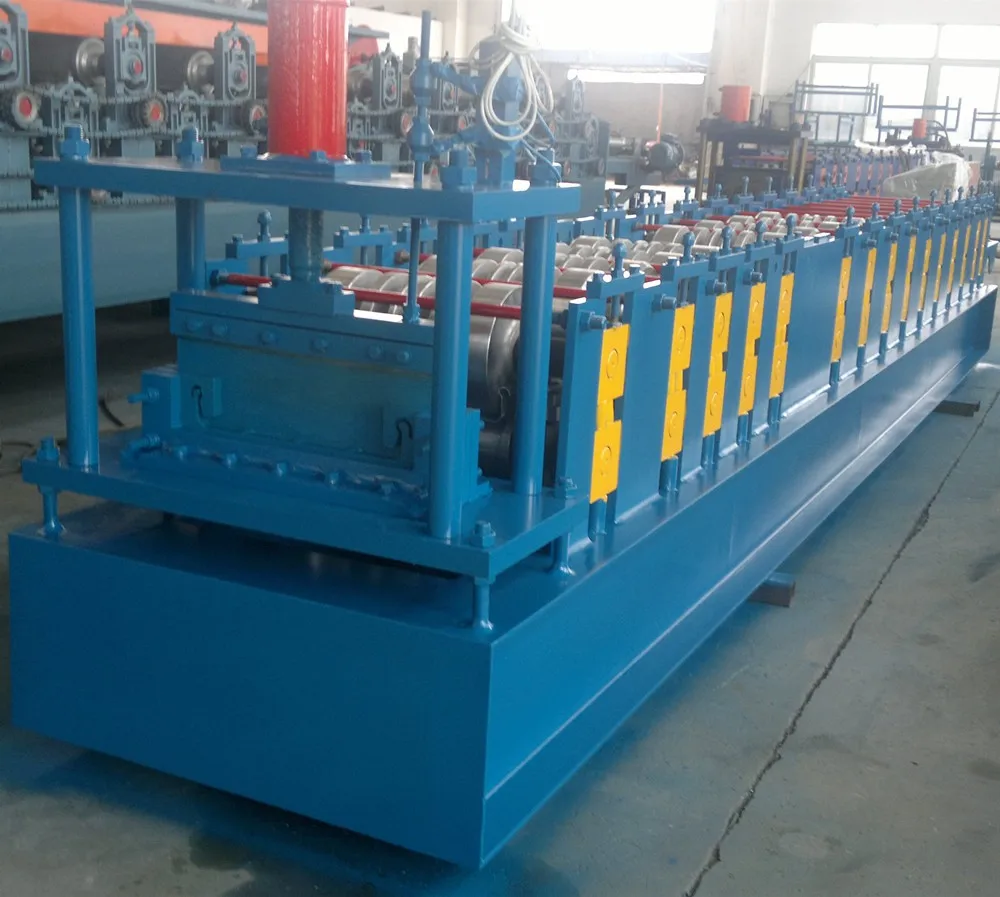

Detailed Images
CONTAINERIZED BEMO SHEET ROLL FORMING MACHINE
Thickness
As per your requirement
Raw Material
PPGI, PPGL, GI, GL, etc.
Max. Coil Weight
5 ton
Forming Speed
8- 15m/ min( not include cutting)
Shaft Diameter and Material
¢76mm, 45# steel with heat treatment HRC50-55
Roller Material
45# steel with quenching treatment and chroming of 0.05mm thickness
Motor Power
5.5-11kw
Hydraulic Station Power
3- 5.5kw
Material of Blade
Cr12, HRC 58-62, chrome coated
Tolerance
+/-1.5mm
Forming Station
12-24 stations
Encoder
Omron
