Trapezoidal Roofing Sheet Making Machine / Metal Sheet Roll Forming Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $25,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YX18-76-836
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
10-15m/min
Power(W):
5.5 Kw
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Application:
Roof
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Brand Name:
HS
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
6500*1300*1100
Weight:
3.5 T
Features:
Automatic
Certification:
ISO CE
Shaft material:
High grade 45# steel
Shaft diameter:
76mm
Material of forming rollers:
45# steel, hard Chrome Coated with 0.05mm
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Touch Screen:
MCSG
Color:
Buyer's Request
Cutting type:
Hydraulic Cutting
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment.
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Product Description

Trapezoidal widespan is a roofing and cladding profile designed to provide an economic alternative to deeper box rib profiles without losing the aesthetic appeal of a square fluted profile. The trapezoidal profile offers greater covering. Trapezoidal roof sheets are available in a wide range of materials displaying various structural properties.

Detailed Images

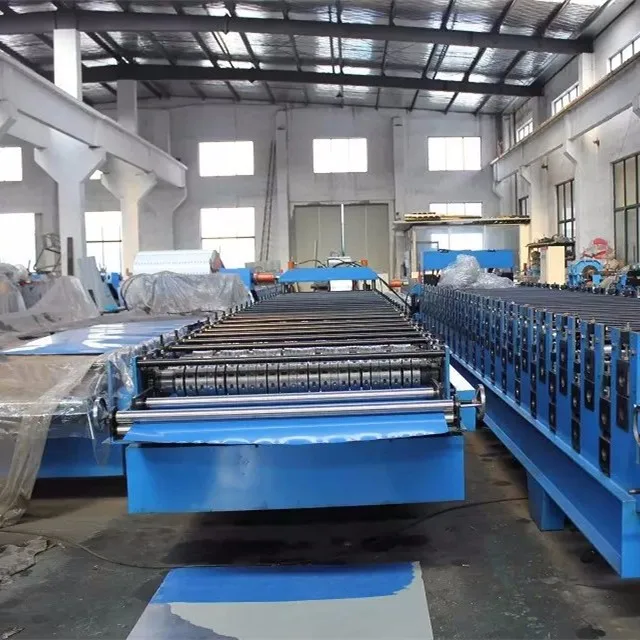

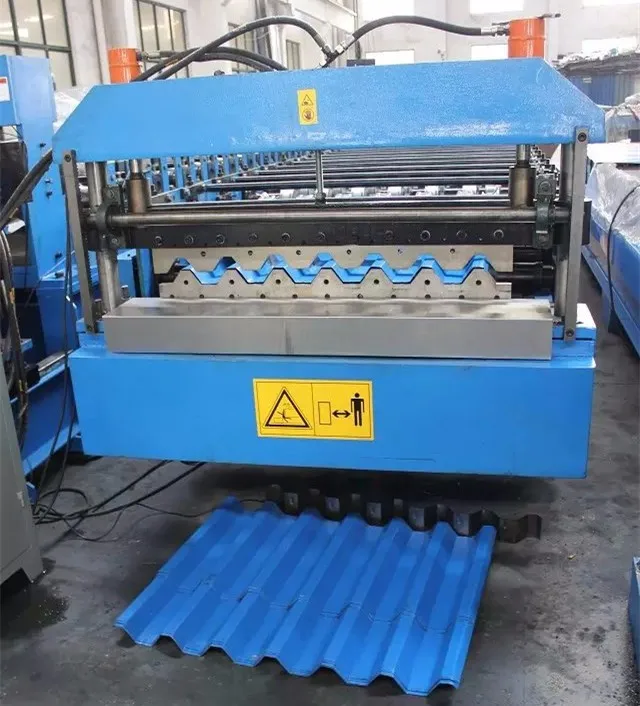

Trapezoidal Sheet Roll Forming Machine
Suitable Thickness
0.3-0.8mm
Raw Material
Coating rolled steel, galvanized sheet, etc.
Max. Coil Weight
5 ton
Forming Speed
15m/min(not include cutting)
Shaft Diameter
¢75mm
Shaft Material
45# steel with heat treatment HRC50-55

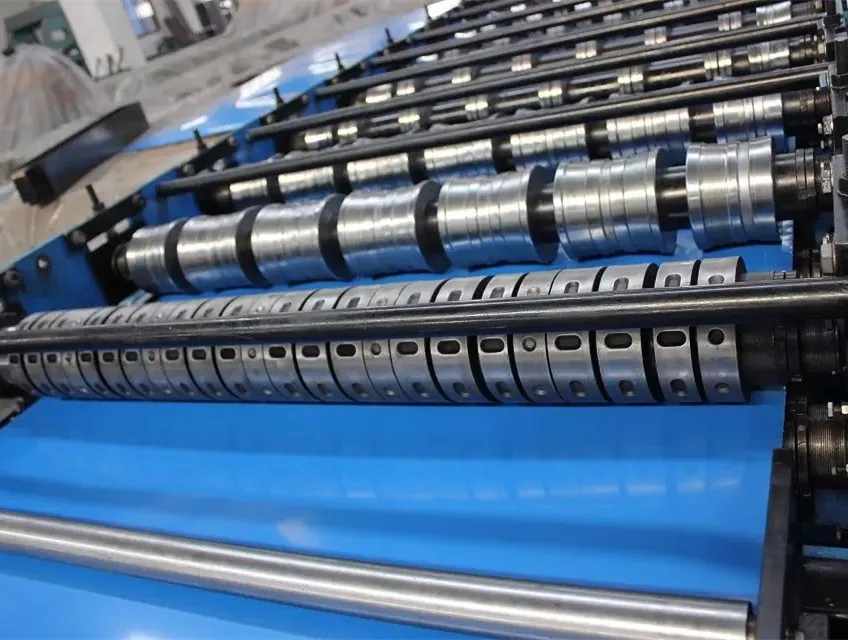

Roller Material
45# Steel With Quenching Treatment and Chroming of 0.05mm Thickness
Transition
Chain and gear
Motor Power
5.5/7.5kw
Hydraulic Station Power
3-5.5kw

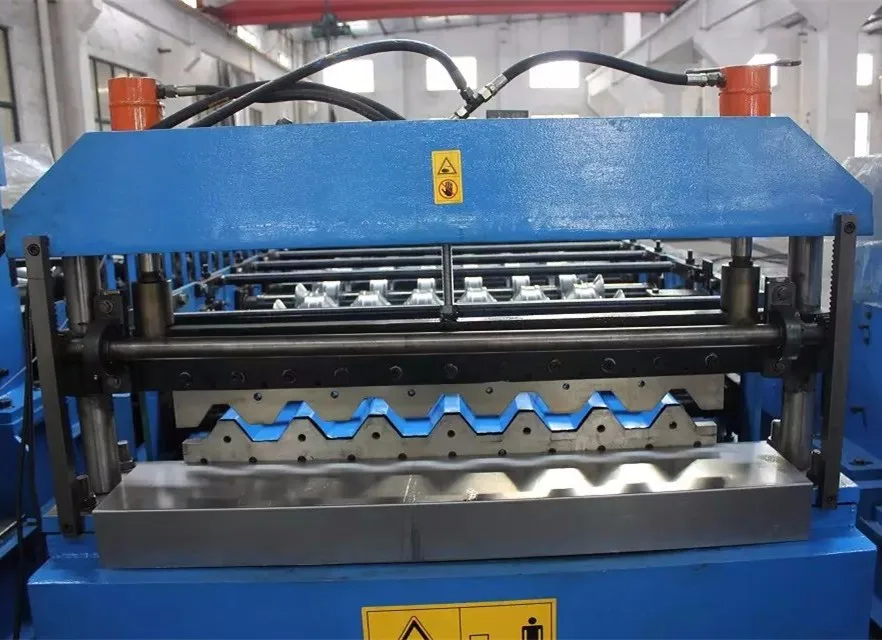

Material of Blade
Cr12, HRC 58-62, chrome coated
Tolerance
+/-1.5mm
Forming Station
14 stations (subjected to final design)
PLC Control System
Panasonic
Encoder
Omron
