South Africa Full Hard 686 IBR Roofing Sheet Roll Forming Machine

FOB Reference Price:Get Latest Price
$18,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
686
Power(W):
5.5KW
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Tile Forming Machine
Production Capacity:
8-15M/Min
Certification:
CE/ISO9001
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Tile Type:
Glazed Steel
Use:
Roof
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
6500*1300*1100
Weight:
3.5T
Shaft material:
High grade 45# steel
Shaft diameter:
76mm
Material of forming rollers:
45# steel, hard Chrome Coated with 0.05mm
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Touch Screen:
MCSG
Material of Cutting Blade:
Cr12Mov
Cutting type:
Hydraulic Cutting
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment.
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Product Description

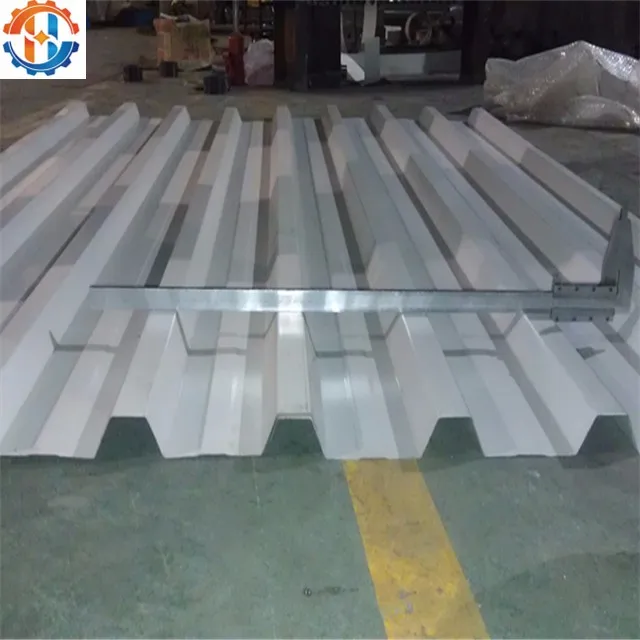

IBR roofing sheets are available in a wide range of materials displaying various structural properties. It should be noted that the load span characteristics are only to be used as a broad guideline as purlin spacing is also depend on other factors such as the prevailing winds in a certain area, snow during winter periods, the presence of dust and other particles in industrial areas, the type of structure that is being erected etc.. We therefore recommend that an engineer is consulted to determine the purlin spacing for a specific application.

Detailed Images

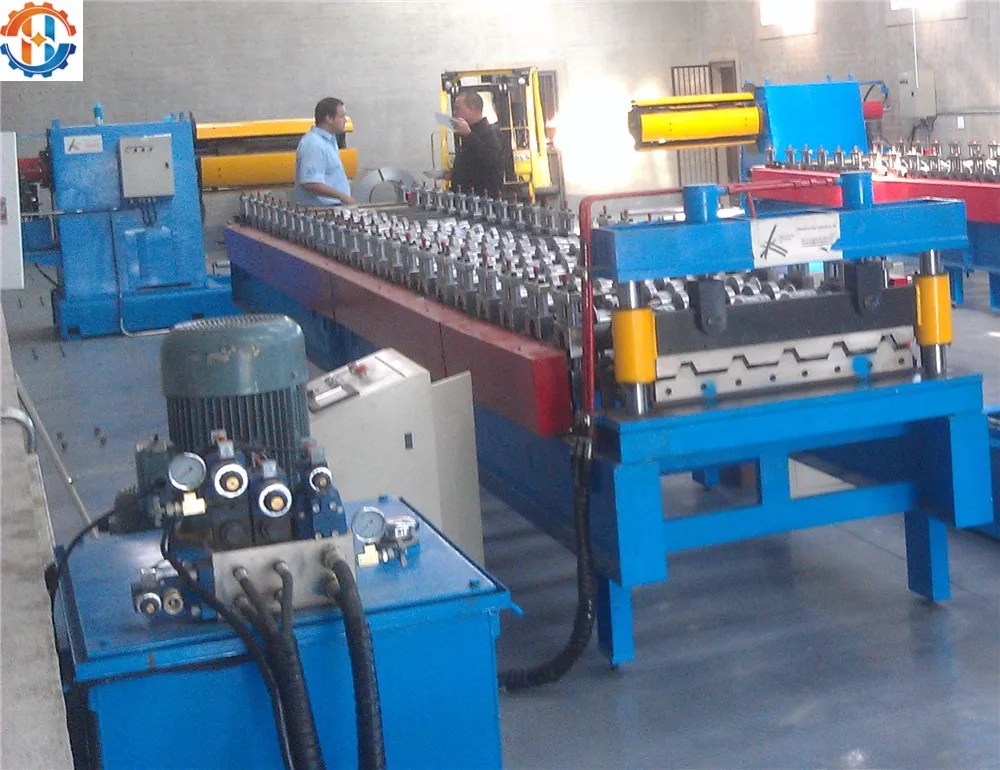

IBR Sheets Roll Forming Machine
Material Thickness
0.3-0.8 mm or as per your requirement
Raw Material
PPGI, GI, GL, G550, etc.
Max. Coil Weight
5 ton
Forming Speed
10- 15m/ min( not include cutting)
Shaft Diameter and Material
¢76mm, 45# steel with heat treatment HRC50-55
Roller Material
45# steel with quenching treatment and chroming of 0.05mm thickness
Transition
Chain and gear
Motor Power
5.5-11kw
Hydraulic Station Power
3- 5.5kw
Material of Blade
Cr12, HRC 58-62, chrome coated
Tolerance
+/-1.5mm
Forming Station
12-24 stations
PLC Control System
Panasonic/ Siemens
Encoder
Omron
Solenoid Valve
Being Huade
