Economic Type Continuous Rubber Belt Type PU Sandwich Panel Production Line For Roof And Wall

FOB Reference Price:Get Latest Price
$160,000.00 - $250,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YX18-76-836
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
4-8m/min
Power(W):
5.5 Kw
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Application:
Wall
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Brand Name:
HS
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
58000*4000*1100
Weight:
46T
Features:
Automatic
Certification:
ISO CE

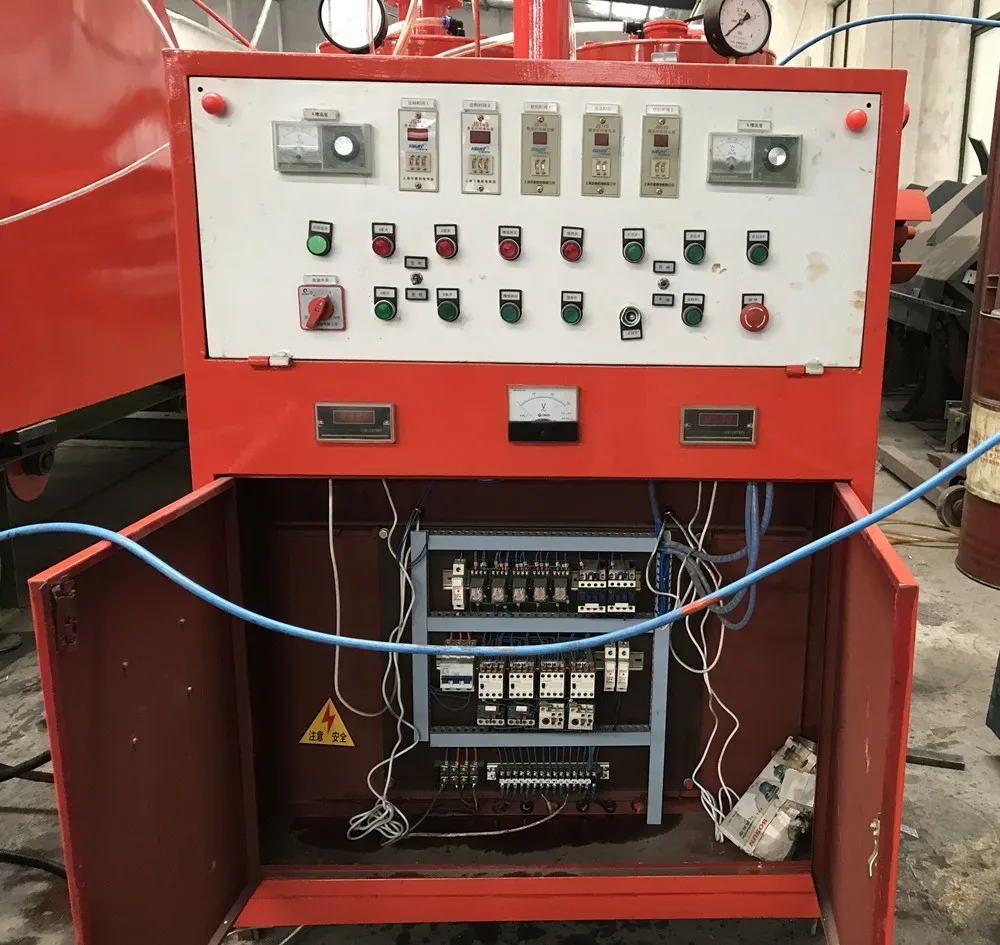

Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
PU foam thickness:
20-150
Line speed:
4-8m/min

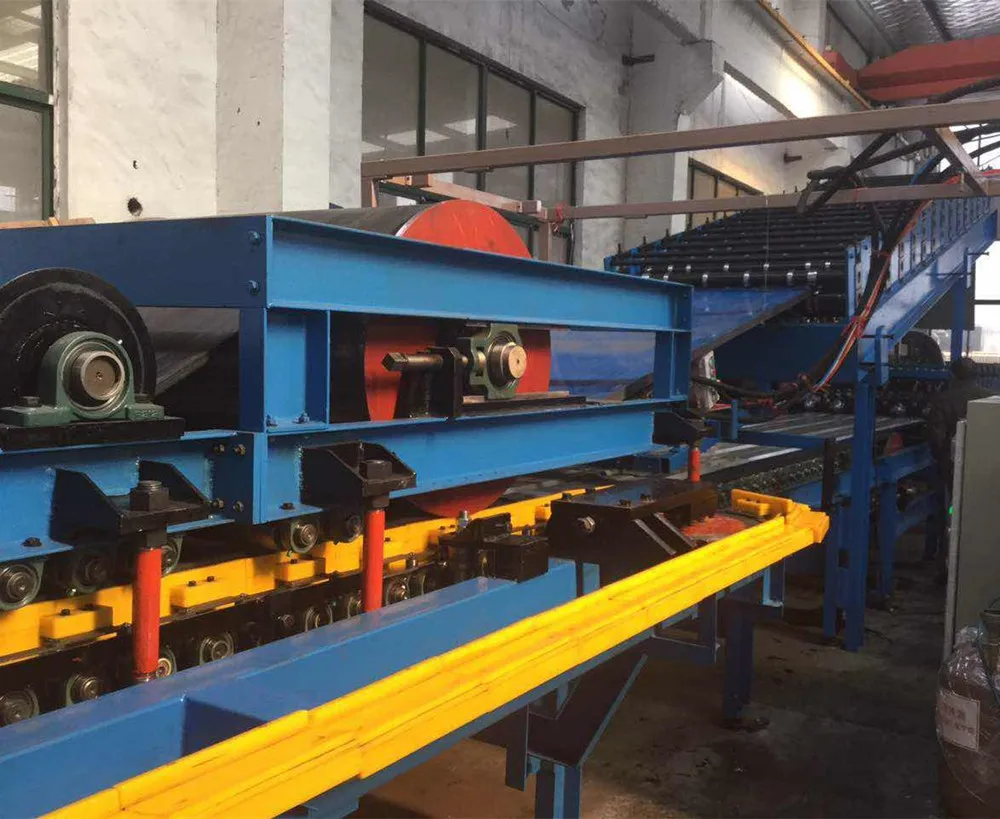

Composite structure:
position fixed by double rubber belt conveyer
Standard Sandwich Panel Size:
1000mm in Width
Machine dimension:
about 58 meter x 4 meter
Total gross weight:
about 46 tons
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
A LETTER FOR YOU

Dear buyer,

1. Please feel free to contact us.

2. Send us details, so that we can make a quotation for you.

3. Click ' Add to Compare' if you have any interest.

Waiting for your inquiry!

Thanks&regards,

Shirley

Whatsapp: 0086 18800561506
Wuxi Haoshuo Technology Co., Ltd.

Product Description

This production line is kind of specialized equipment for producing sandwich PU panel with the middle layer of anti-combustion polyurethane and with steel sheet as the top and bottom surface layers. The sandwich PU can be 20-200mm in thickness, length determined by the customer. The sandwich PU panel is mainly used for keeping warm. Different insulating panels with other soft facing layers can also be produced on the line.

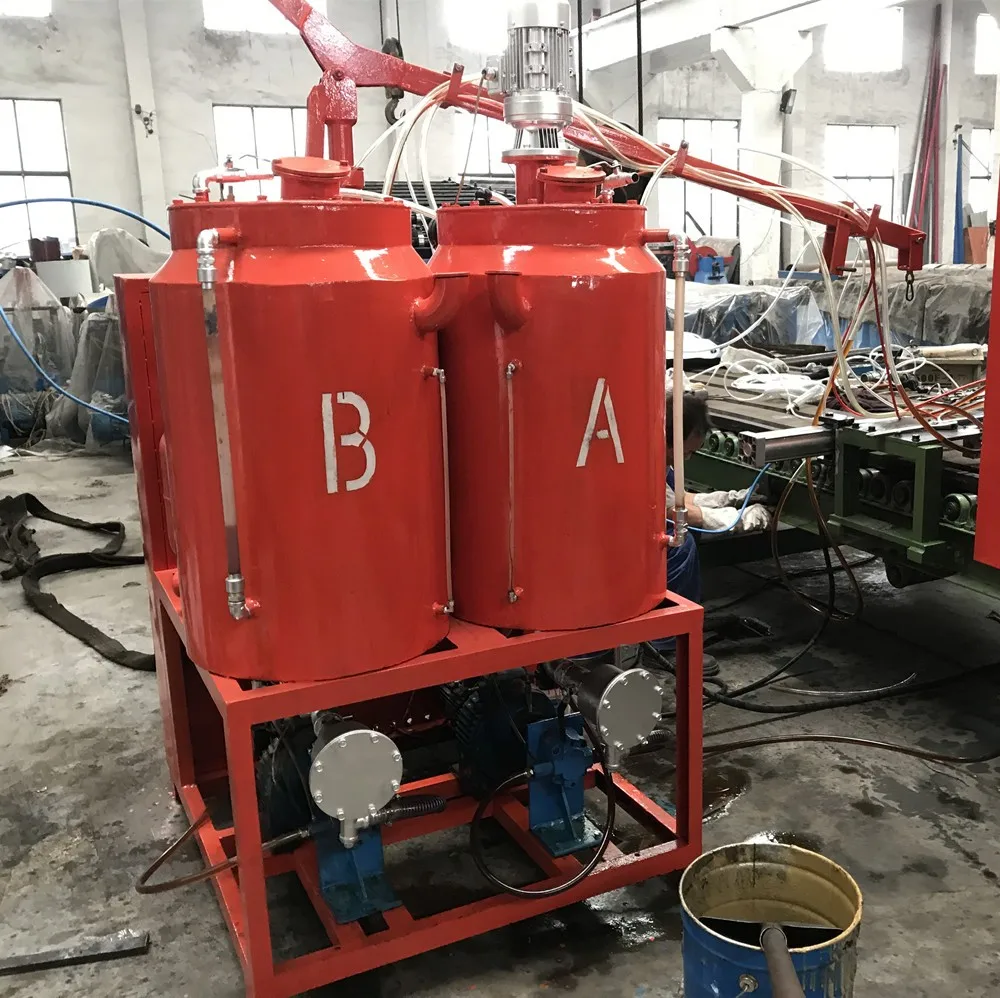

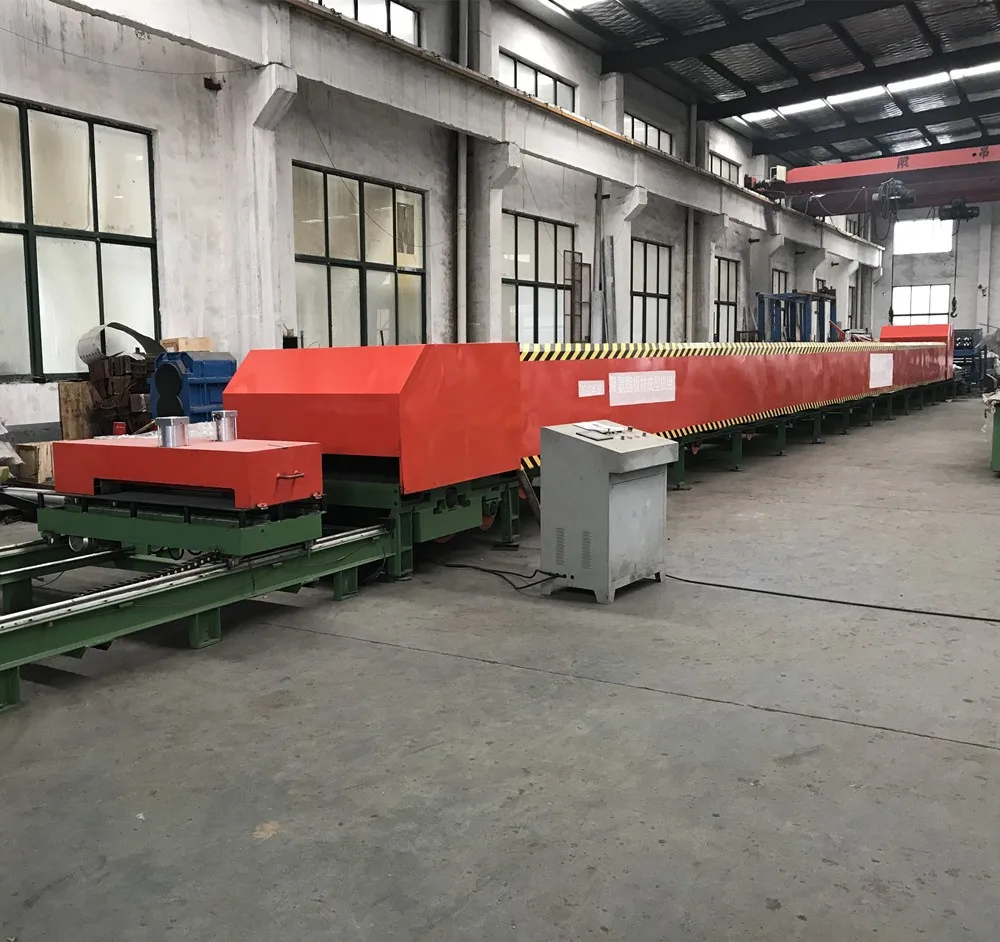

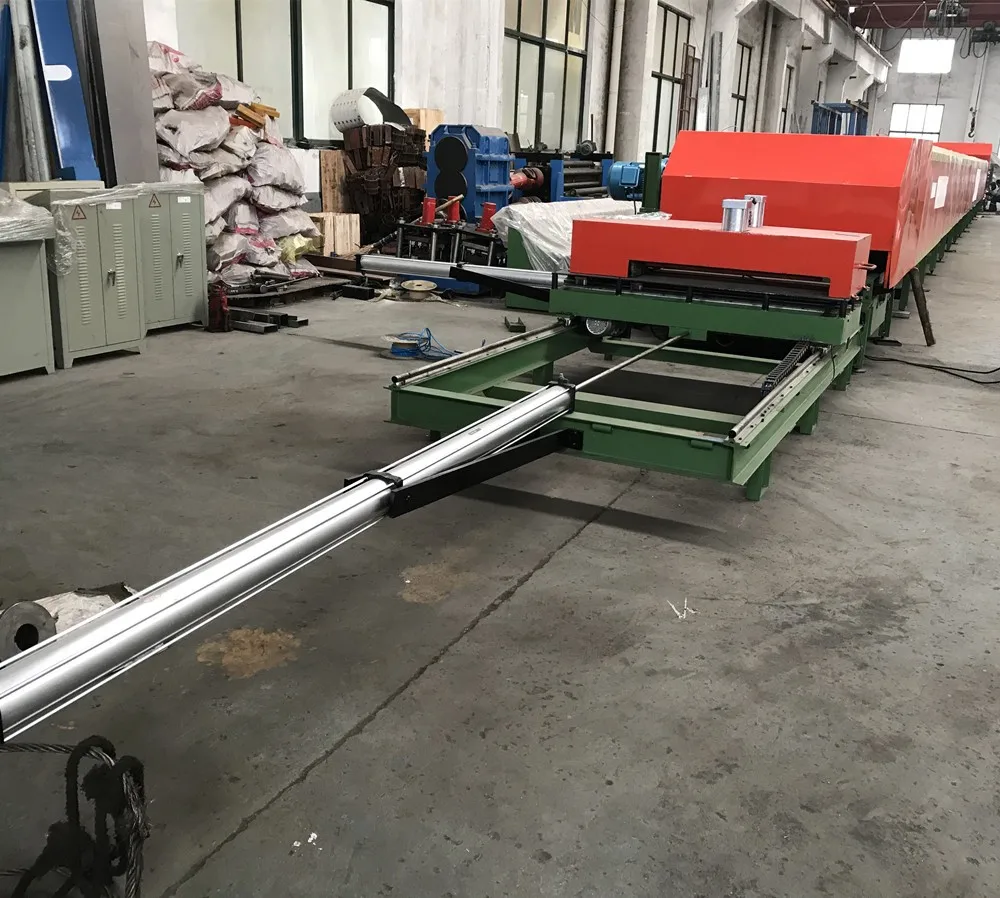

The operation principle of this line is as follows: raw materials of rigid-foam are delivered into the mixing head through the metering pump on the injection machine and then injected onto the bottom facing sheet going to conveyors along with the top superficial sheet. Between the upper and lower conveyors, the liquid materials are hardened into solidity, then by an automatic tracking cutting mechanism, cut into pieces according to the preset length.

Layout Line
