Fully Automatic PLC Control Z Purlin Roll Forming Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $60,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Z100-300
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
11kw
Certification:
CE Standard
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
12-16Mpa
Production Capacity:
8-15m/min
Place of Origin:
Jiangsu, China
Brand Name:
HS
Voltage:
380V/50HZ 3Phase
Dimension(L*W*H):
8000X1200X1200mm
Weight:
7 Ton
Shaft material:
High grade 45# steel
Shaft diameter:
76mm
Material of forming rollers:
GCr15, HRC58-62, Chroming of 0.05mm thickness
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Touch Screen:
MCSG
Material of Cutting Blade:
Cr12
Cutting type:
Hydraulic Cutting
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment.
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Product Description

The frame of Z purlin forming machine adopts joist steel integrity welding technology with strong carrying capacity and high strength. We adopt the cutting device and punching mould in one device. This machine employs combined mould design, thus it can manufacture many products of different specifications with low cost.

Detailed Images

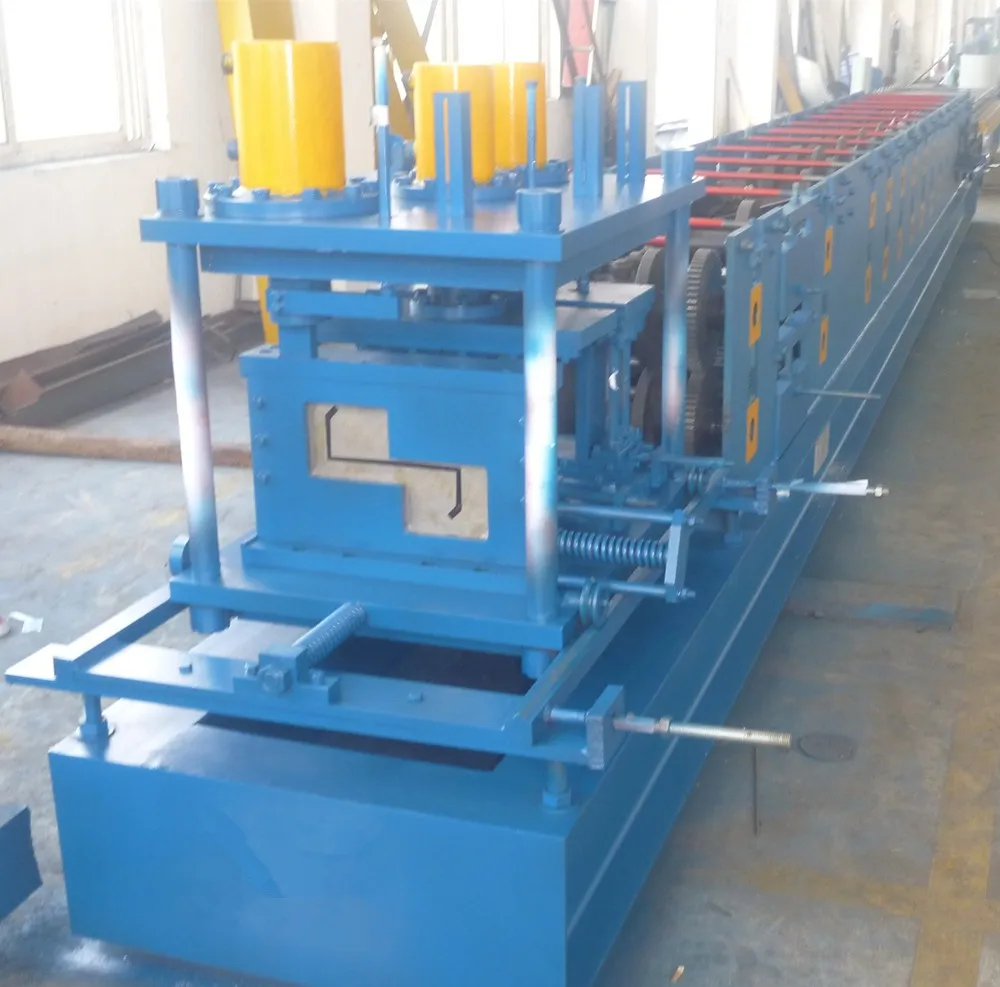

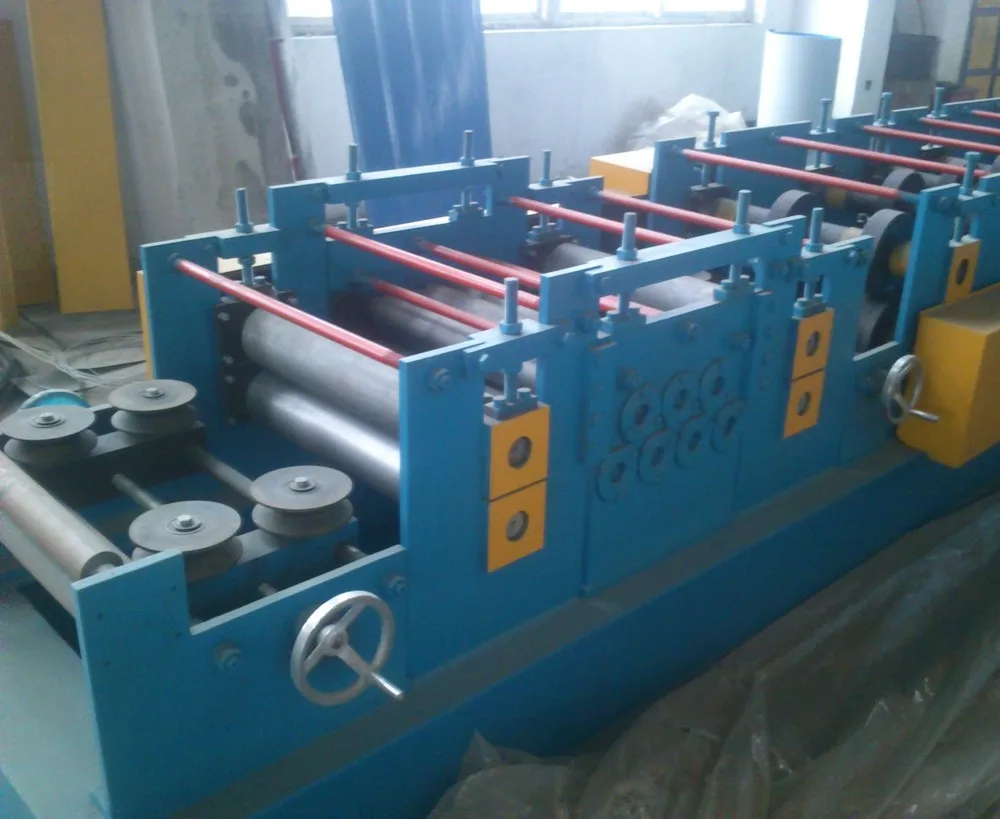

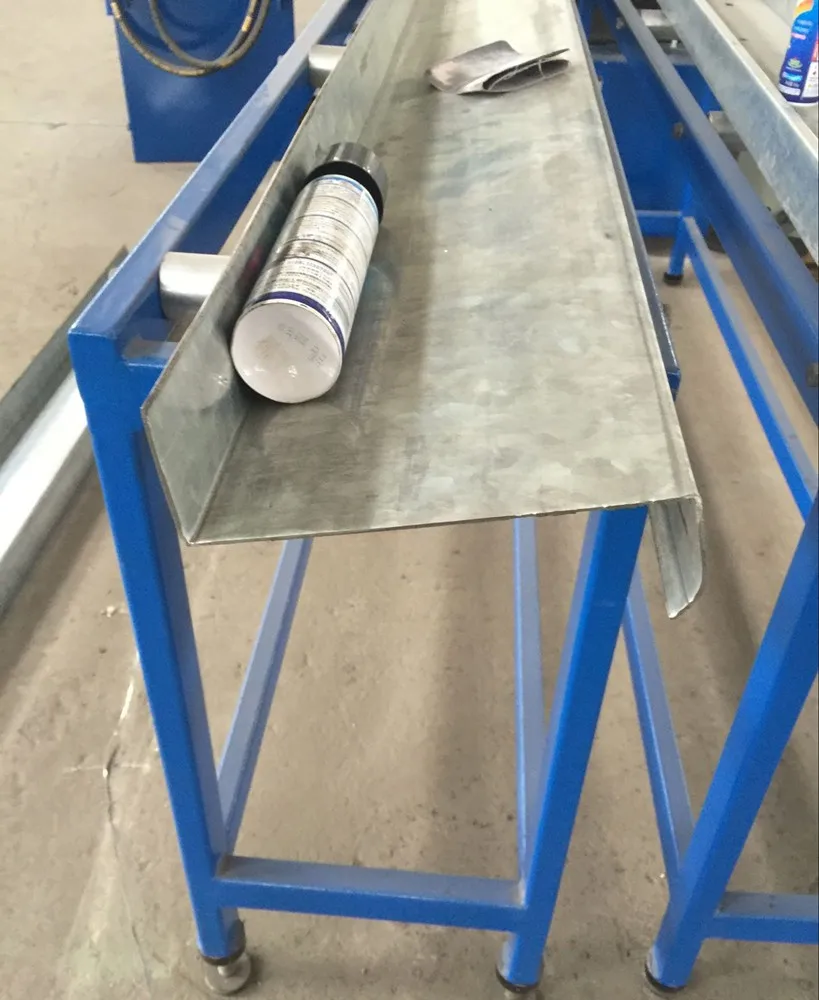

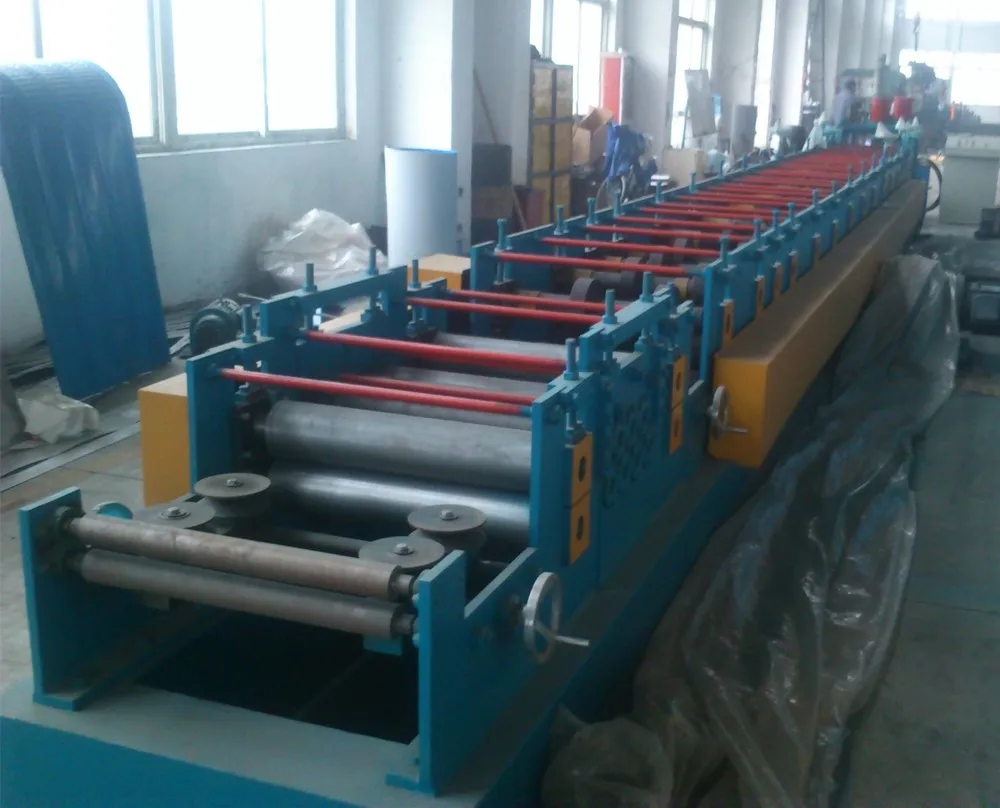

Z Purlin Roll Forming Machine
Material Thickness
Depend on your requirements
Raw Material
Carbon steel, Q235, etc.
Maximum Coil Weight
5T
Forming Speed
10-15m/min
Line Speed
6-8m/min
Shaft Diameter
¢75mm
Shaft Material
45# steel with heat treatment HRC50-55
Roller Material
GCr15, HRC 58-62, chroming of 0.05mm thickness
Motor Power
5.5-18.5kw
Hydraulic Station Power
3-7.5kw
Blade Material
Cr12 steel with quenched treatment HRC 60-62
Cutting Tolerance
+/-1.5mm
Forming Station
16 Stations
PLC Control System
Panasonic
Encoder
Omron
