DOUBLE DECK/DOUBLE PROFILE/ DOUBLE LAYER ROOFING SHEETS ROLL FORMING MACHINE

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Power(W):
5.5 Kw
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Tile Forming Machine
Production Capacity:
10-15m/min
Certification:
CE/ISO9001, ISO CE
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Tile Type:
Glazed Steel
Use:
Roof
Place of Origin:
Jiangsu, China
Brand Name:
HS
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
6500*1300*1500
Weight:
7 T
Shaft material:
High grade 45# steel
Shaft diameter:
76mm
Material of forming rollers:
45# steel, hard Chrome Coated with 0.05mm
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Material of Cutting Blade:
Cr12Mov
Cutting type:
Hydraulic Cutting
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment.
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
A LETTER FOR YOU

Dear buyer,

1. Please feel free to contact us.

2. Send us details, so that we can make a quotation for you.

3. Click ' Add to Compare' if you have any interest.

Waiting for your inquiry!

Thanks&regards,

Shirley

Whatsapp: 0086 18800561506
Wuxi Haoshuo Technology Co., Ltd.

Product Description

The double layer forming machine is totally controlled by PLC. This cold roll forming machine can make 2 different roofing sheets in one machine. For example, this double layer roll forming machine can produce 2 different trapezoidal roofing sheets, or 2 different roof cladding sheets, or one trapezoidal sheet and one corrugated sheet. Please send us the profile drawings to get a quotation.

Detailed Images

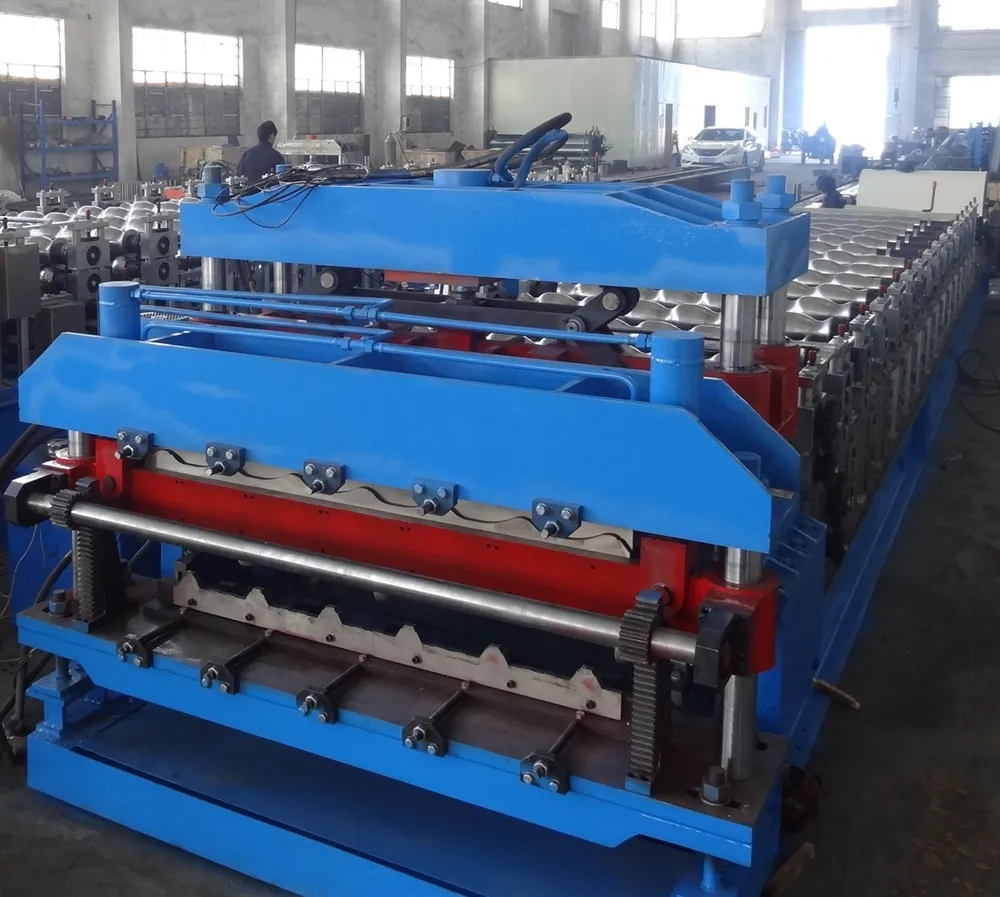

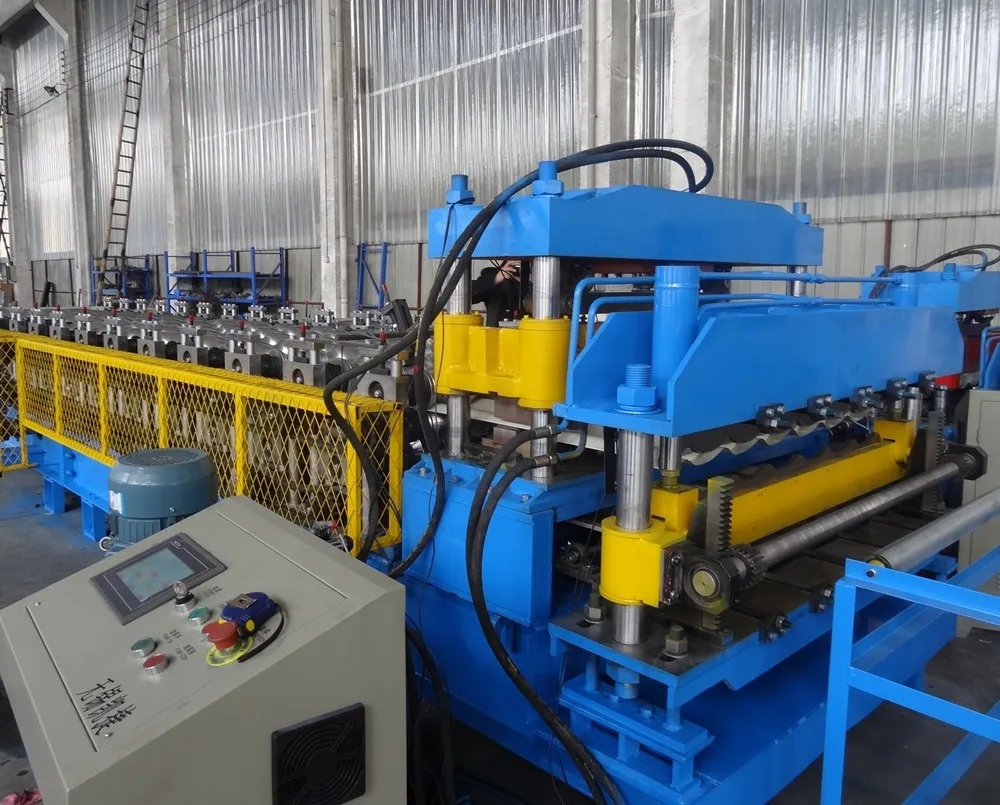

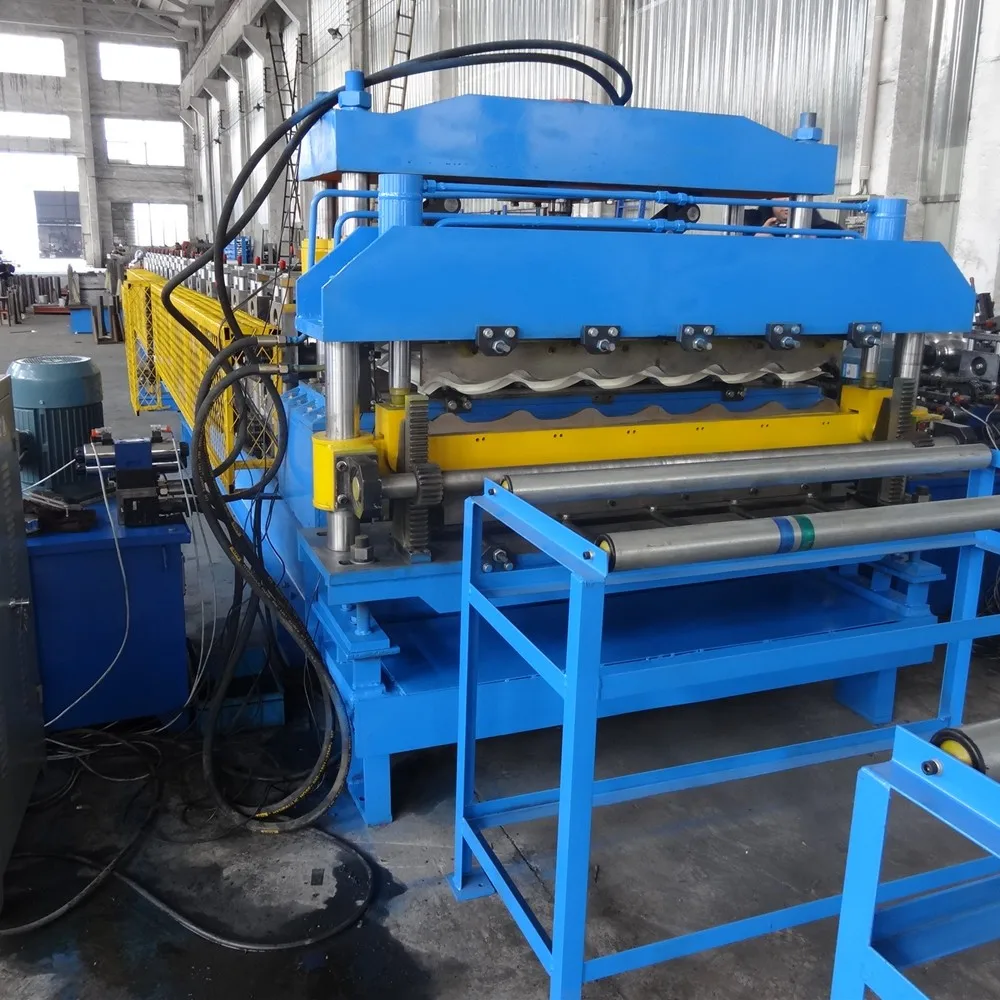

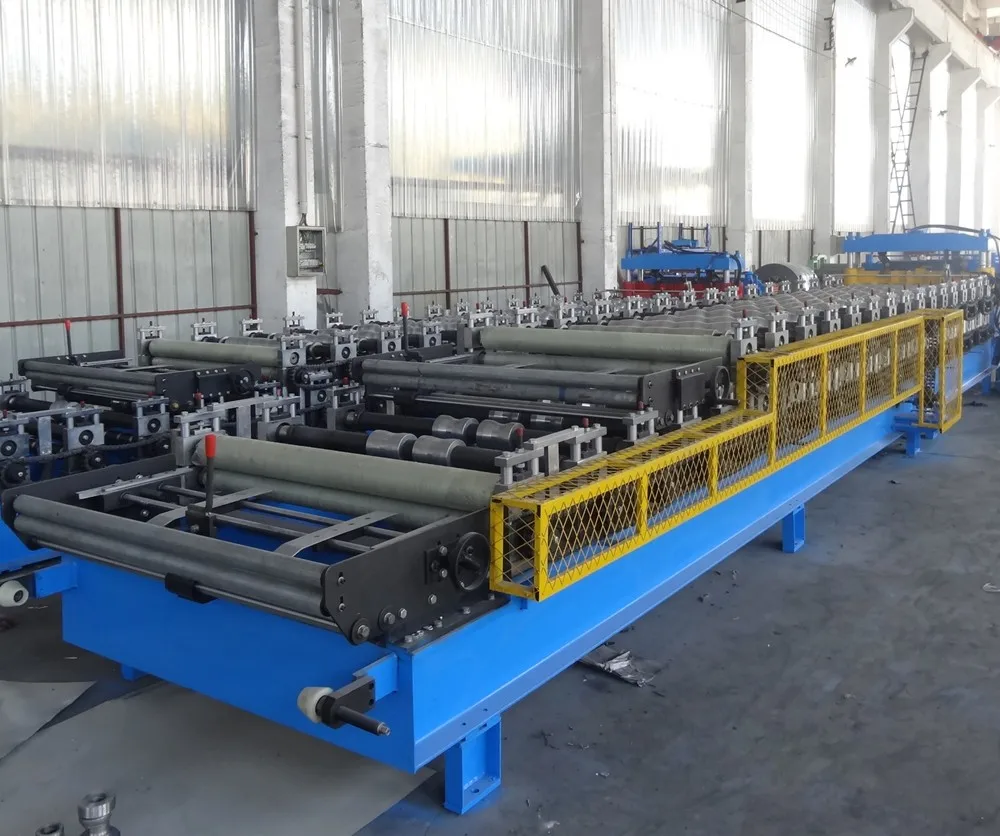

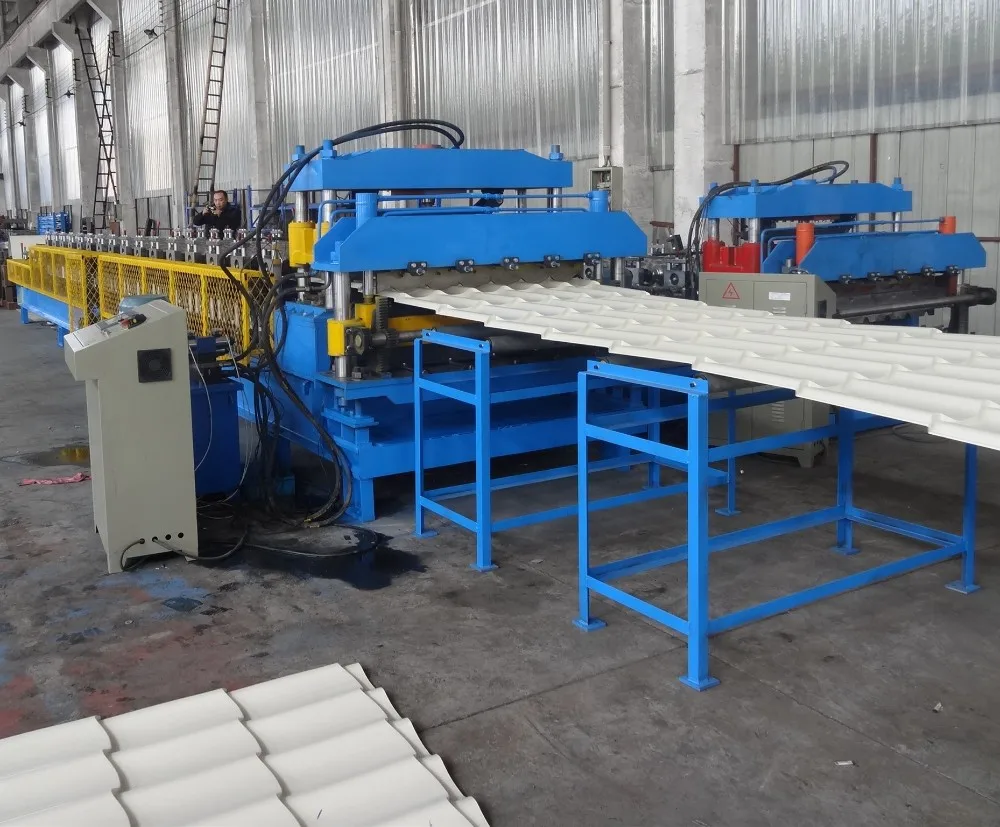

Double Layer Roll Forming Machine
Suitable Thickness
0.3-0.8mm
Raw Material
PPGI, GI, etc.
Maximum Coil Weight
5 ton
Forming Speed
12-15m/min
Diameter of Shaft
¢76mm
Material of Shaft
45# steel with heat treatment HRC50-55
Material of Roller
45#, hard Chrome Coated with 0.05mm
Transition
By chain
Main Bearing
6212
Upper Layer Station
12-24 stations
Bottom Layer Station
12-24 stations
Main Motor Power
5.5/7.5kw
Hydraulic Station Power
3-5.5kw
Material of Blade
Cr12 Mov
Number of Blade
2 sets
Tolerance
+/- 1.5mm
PLC Control System
Panasonic
Encoder
Omron
