Full Drywall Metal Stud And Track System/ Two In One Light Keel Roll Forming machine

FOB Reference Price:Get Latest Price
$8,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
C80-300
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
7.5kw
Certification:
CE Standard
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
12-16Mpa
Production Capacity:
8-15m/min
Place of Origin:
Jiangsu, China
Brand Name:
HS
Voltage:
380V/50HZ 3Phase
Dimension(L*W*H):
8000X1200X1200mm
Weight:
3.5 Ton
Shaft material:
High grade 45# steel
Shaft diameter:
76mm
Material of forming rollers:
GCr15, HRC58-62, Chroming of 0.05mm thickness
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Touch Screen:
MCSG
Material of Cutting Blade:
Cr12
Cutting type:
Hydraulic Cutting
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment.
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
A LETTER FOR YOU

Dear buyer,

1. Please feel free to contact us.

2. Send us details, so that we can make a quotation for you.

3. Click ' Add to Compare' if you have any interest.

Waiting for your inquiry!

Thanks&regards,

Shirley

Whatsapp: 0086 188 0056 1506
Wuxi Haoshuo Technology Co., Ltd.

Product Description

Our light keel roll forming machine can continuous form the steel sheet according to customer's requirement, automatically cut to length. we can design and manufacture different kinds of light steel frame forming machine, which is utilized to produce various steel structure formed steel.

Detailed Images

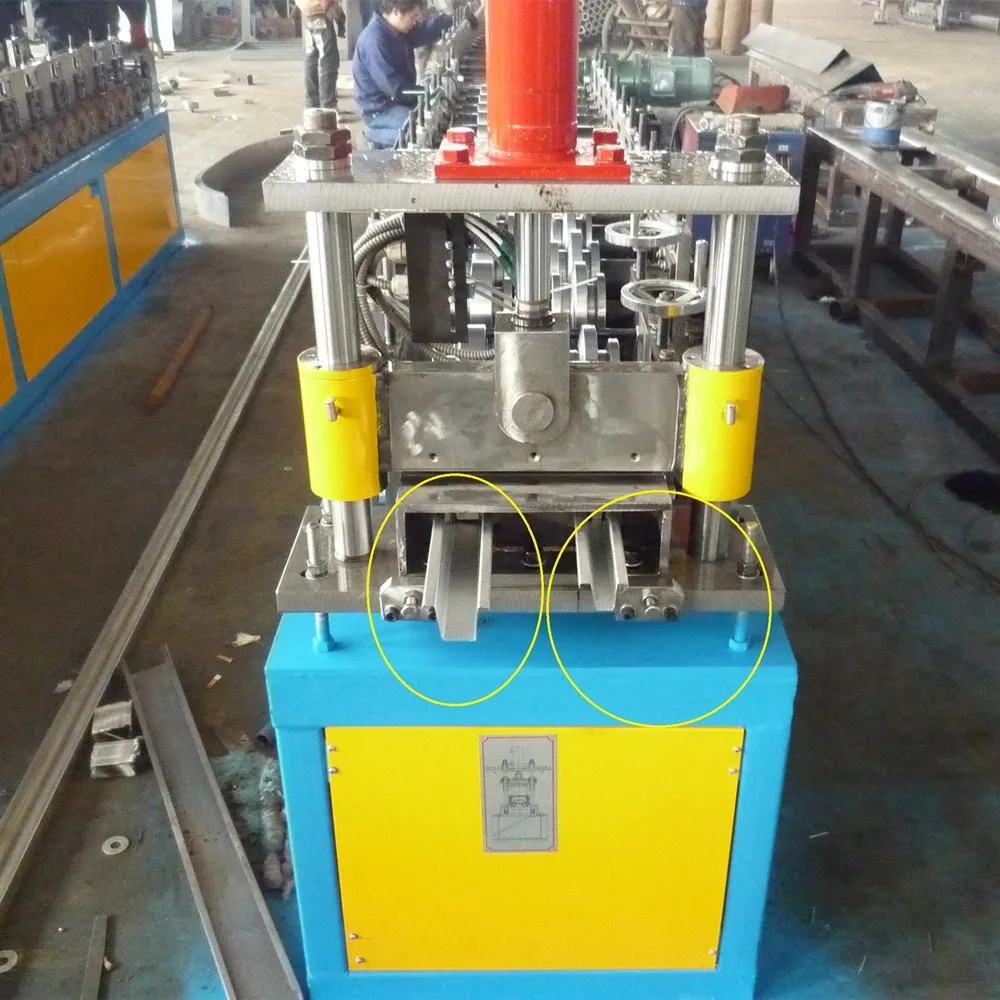

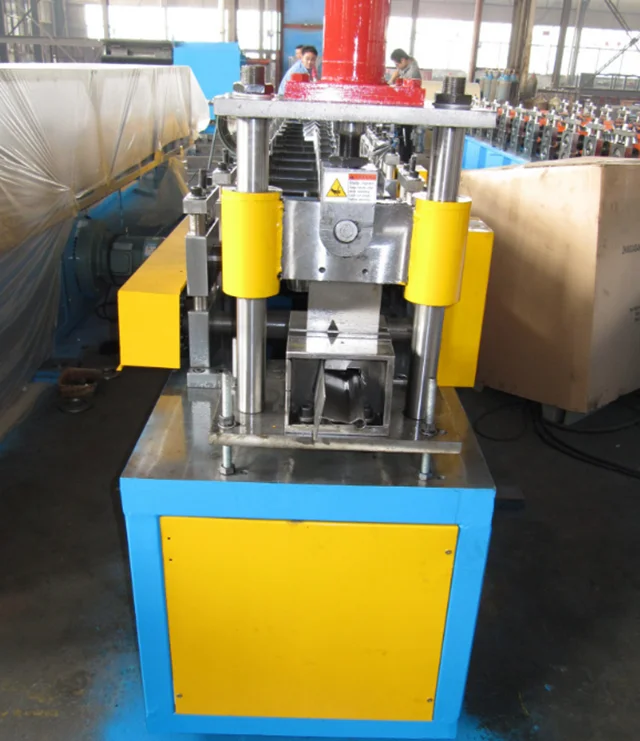

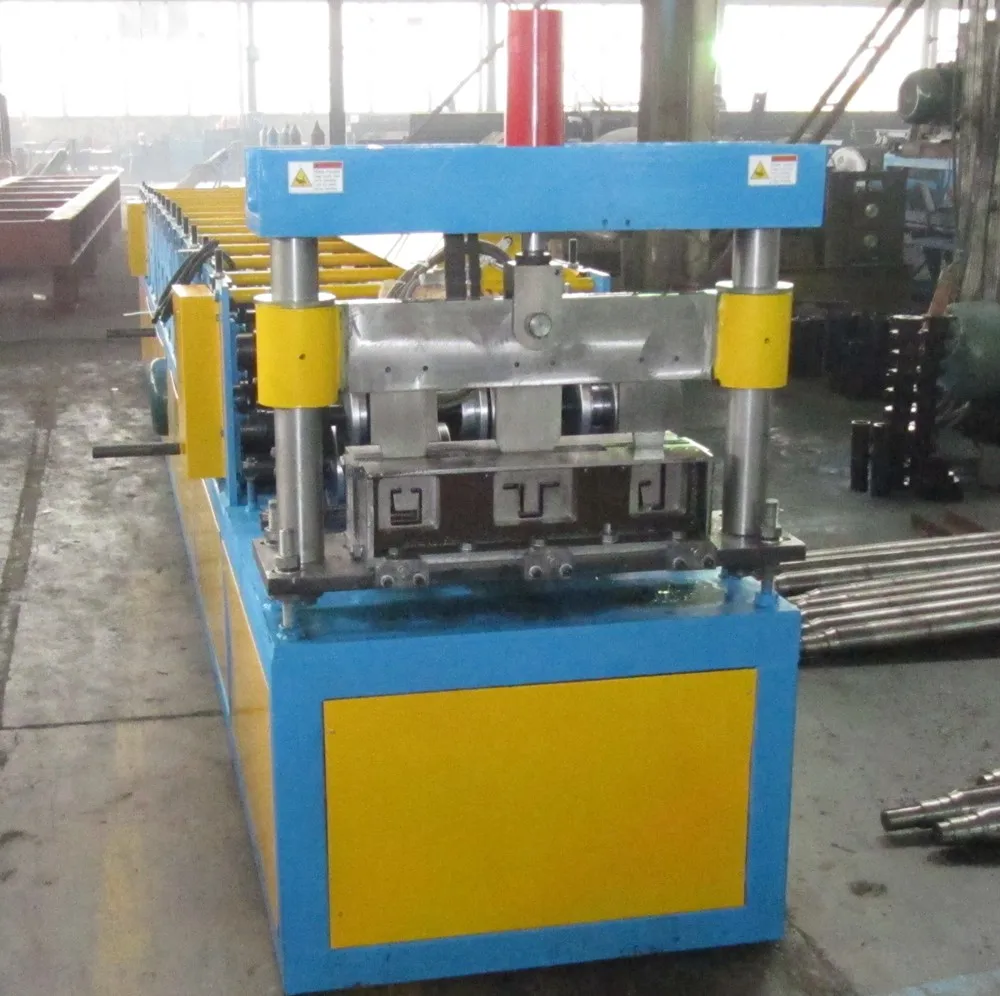

Light Keel Roll Forming Machine
Suitable Thickness
0.45-1.2mm
Raw Material
cold rolling coils, galvanized coils, etc.
Maximum Coil Weight
3T
Forming Speed
15m/min(not include cutting)
Shaft Diameter
¢75mm
Shaft Material
45# steel with heat treatment HRC50-55
Roller Material
45#, CNC lathes, hard Chrome Coated with 0.05mm
Motor Power
3-7.5kw
Hydraulic Station Power
3-5.5kw
Material of Blade
Cr12 steel with quenched treatment HRC 60-62
Cutting Tolerance
+/-1.5mm
Forming Station
16 Stations
PLC Control System
Panasonic
Encoder
Omron
