Metal Corrugated Roofing Panel Roll Forming Machine / Corrugated Sheets Roll Forming Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YX18-76-836
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
10-15m/min
Power(W):
5.5 Kw
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Application:
Roof
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Brand Name:
HS
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
6500*1300*1100
Weight:
3.5 T
Features:
Automatic
Certification:
ISO CE
Shaft material:
High grade 45# steel
Shaft diameter:
76mm
Material of forming rollers:
45# steel, hard Chrome Coated with 0.05mm
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Touch Screen:
MCSG
Material of Cutting Blade:
Cr12
Cutting type:
Hydraulic Cutting
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment.
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
A LETTER FOR YOU

Dear buyer,

1. Please feel free to contact us.

2. Send us details, so that we can make a quotation for you.

3. Click ' Add to Compare' if you have any interest.

Waiting for your inquiry!

Thanks&regards,

Shirley

Whatsapp: 0086 18800561506
Wuxi Haoshuo Technology Co., Ltd.

Detailed Images

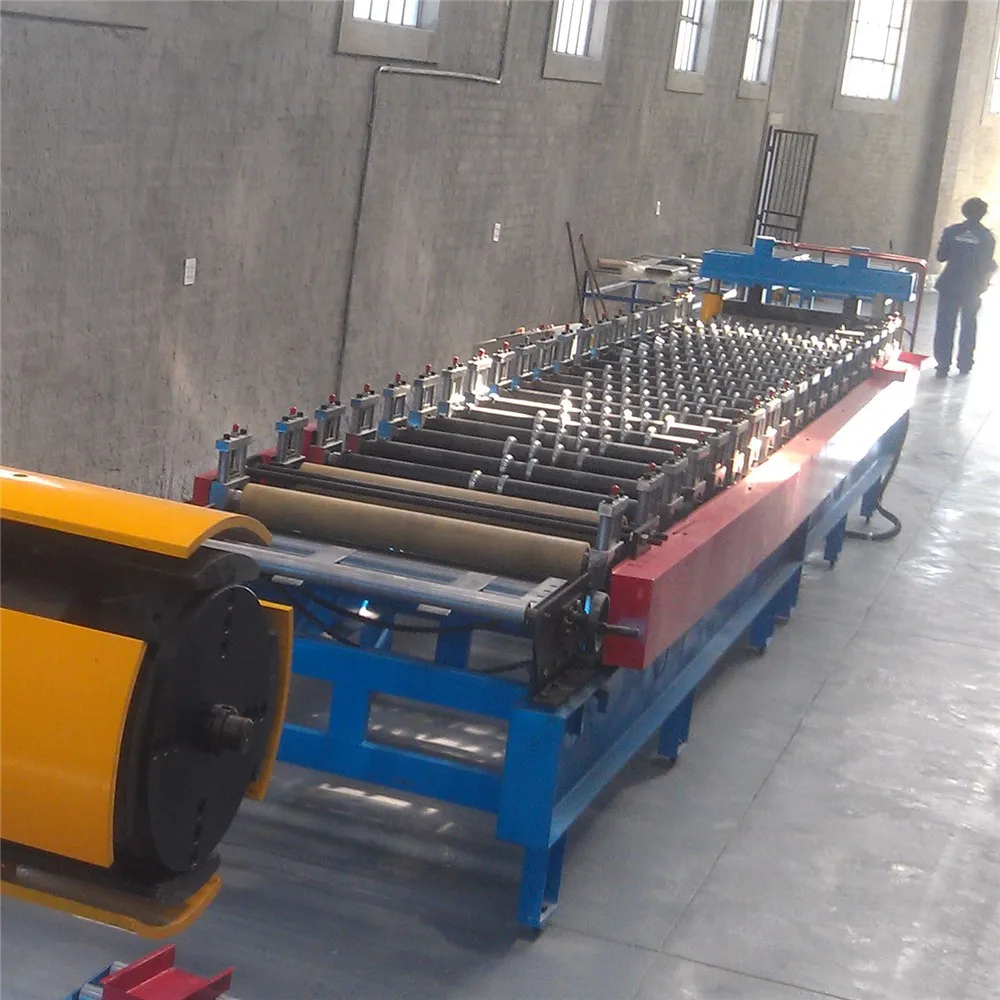

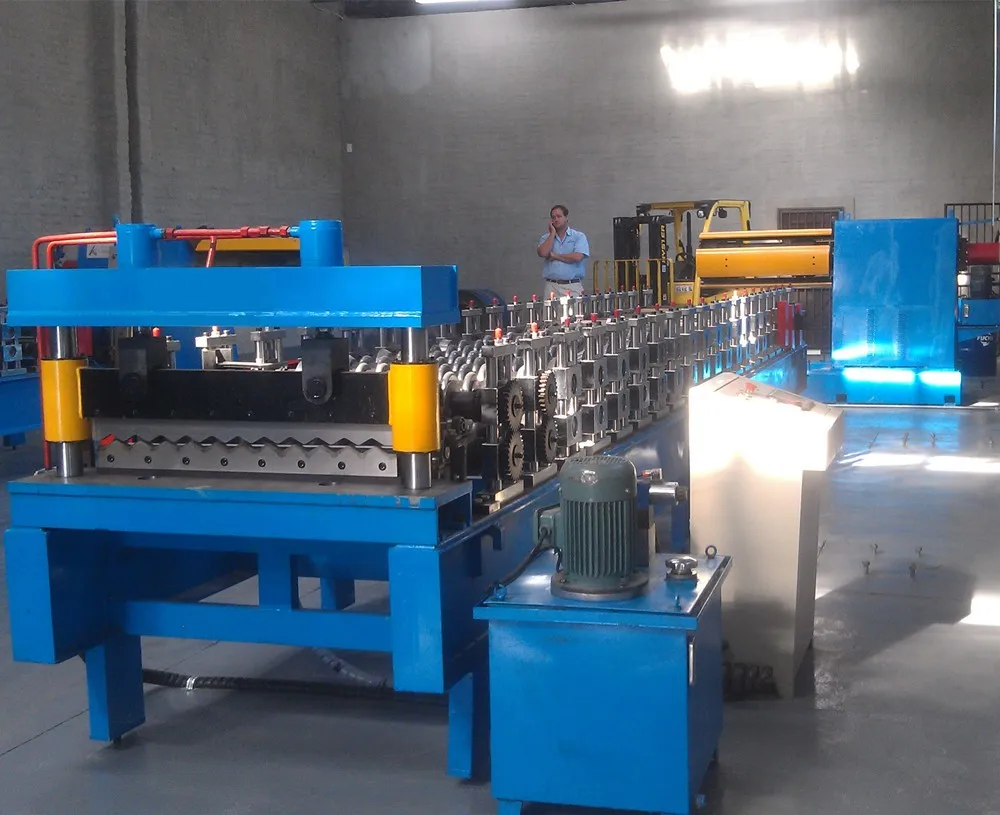

Corrugated Roofing Sheet Roll Forming Machine
Material Thickness
0.3-0.8 mm or as per your requirement
Raw Material
PPGI, GI, GL, G550, etc.
Max. Coil Weight
5 ton
Forming Speed
10- 15m/ min( not include cutting)
Shaft Diameter and Material
¢76mm, 45# steel with heat treatment HRC50-55
Roller Material
45# steel with quenching treatment and chroming of 0.05mm thickness
Transition
Chain and gear
Motor Power
5.5-11kw
Hydraulic Station Power
3- 5.5kw
Material of Blade
Cr12, HRC 58-62, chrome coated
Tolerance
+/-1.5mm
Forming Station
12-24 stations
PLC Control System
Panasonic
Encoder
Omron
Solenoid Valve
Being Huade
