PU Foaming Aluminum Rolling Shutter Door Roll Forming Machine

FOB Reference Price:Get Latest Price
$15,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
55 77 37 42 120
Max. Working Width:
120
Customization:
Customized packaging (Min. Order: 1 Sets)
Samples - $15,000.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops
Brand Name:
Haoshuo
Voltage:
380V
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Production Capacity:
10 m/min
Power(W):
21.5kw
Applicable Material:
Aluminum
Key Selling Points:
Automatic
Shaft material:
High grade 45# steel
Shaft diameter:
76mm
Material of forming rollers:
40Cr
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Touch Screen:
MCSG
Cutter material:
Cr12
Cutting type:
Hydraulic cutting
Color:
customized
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment.
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
A LETTER FOR YOU

Dear buyer,

1. Please feel free to contact us.

2. Send us details, so that we can make a quotation for you.

3. Click ' Add to Compare' if you have any interest.

Waiting for your inquiry!

Thanks&regards,

Shirley

Whatsapp: 0086 188 0056 1506
Wuxi Haoshuo Technology Co., Ltd.

Product Description

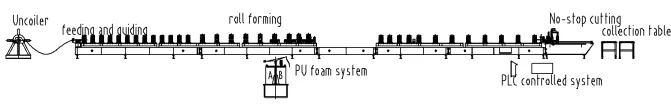

This foaming aluminum shutter forming machine integrates cold roll forming technology and PU foaming technology into one, thus continuous automation production of foaming roller shutter door is achieved.

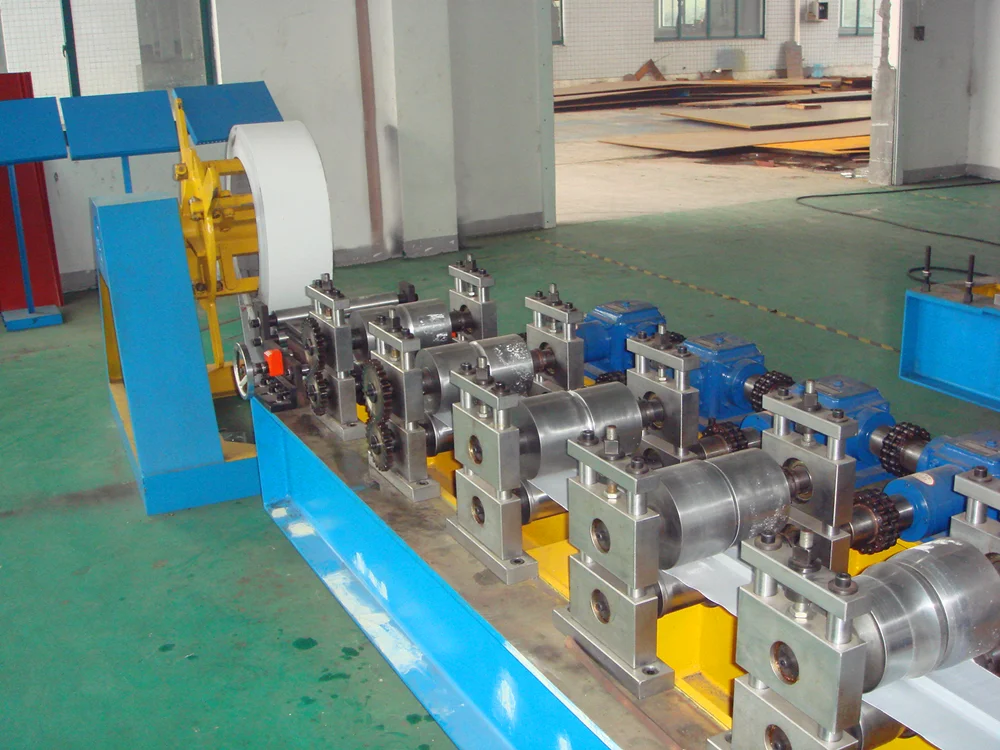

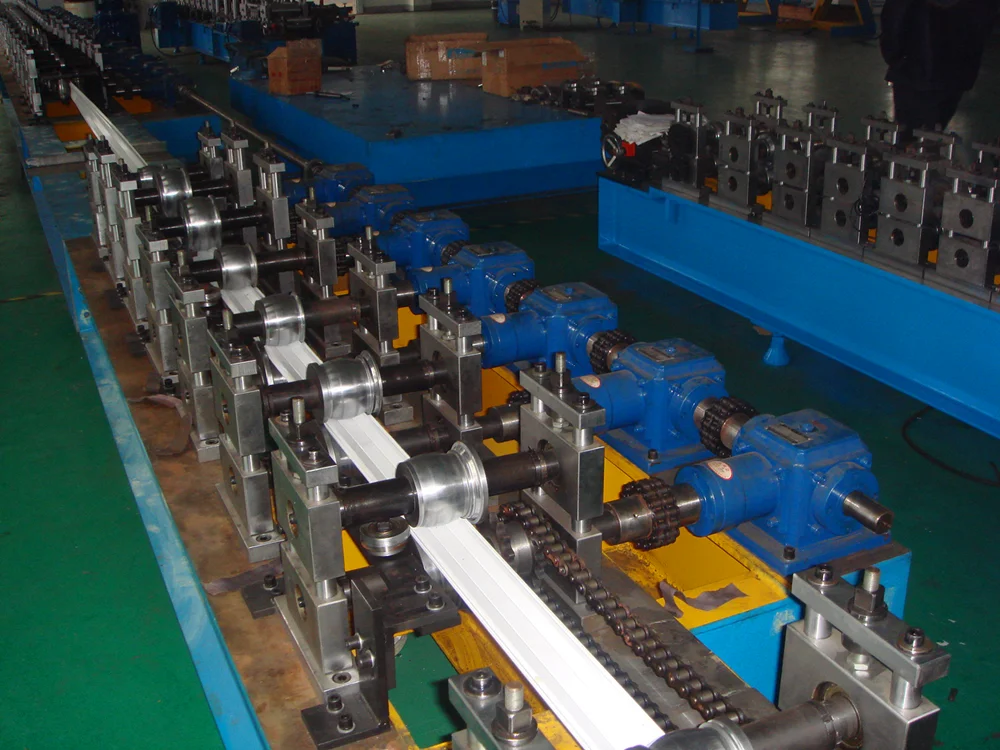

Detailed Images
Components
Technical Parameters
Quantity
1
Uncoiler
1.Width: 100-300mm
2.Speed: Based on the machine speed
3. I.D: 460-508mm; O.D: 1350mm
1 set
2
Roll Forming Machine
1.Shaft: High quality 45# Steel with tempering treatment HB280
2.Roller: GCR15 steel with quench treatment.
3.Forming Station: 28-38 stations
4.Forming Speed: 6-15m/min
5.Motor Power: 7.5kw( subjected to final design)
6.Transmission: Gear-box transmission
7.Dimension of the Line: Approx. 26000mmX1500mmX1400mm
8.Weight of the Line: Approx. 8T
1 set
3
Foaming machine
1.Type: Low Pressure Blowing Type
2.Foaming Material: PU
3.Power: 5KW
4.Foaming Rate: 10 times in max
5.Output: 120KG/Hour in max
6.Screw Diameter: 6mm
7.Dimension: Approx. 120x100x170 mm
8.Weight: Approx. 300KG
9.  Clearing: by Solvent
4
Fly Saw Cutting Device
1.Material Of Cutting Mold: Cr12 steel with quenched treatment HRC 60-62
2.Cutting Pressure: 12-16Mpa
3.Cutting Power: 2KW (subjected to final design)
4.  Tolerance Of Cutting Length: +/-2mm
1 set
5
Hydraulic Station
1. Power: 4kw
2. Solenoid Value: Beijing Huade
2 pieces
6
PLC System
1.Control System: Panasonic PLC
2.Encoder: Omron brand
3.Converter: Yaskawa
4.Pressure of Hydraulic Station: ≧16Mpa
5.   PLC Control Box: 700mmx1000mmx300mm
1 set
7
Collection Station
1. Angle iron welded
1 set
