Wuxi Steel Coil Cut To Length Line / Metal Leveling and Cutting Machine

FOB Reference Price:Get Latest Price
$120,000.00 - $300,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HJX1600
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
HS
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Warranty:
1 Year
Condition:
New
Voltage:
AC380V±10%/50Hz
Rated Power:
80KW
Dimension(L*W*H):
20M x 8M x 3M
Weight:
50T
Certification:
CE ISO
maximum coil weight:
30T
speed:
0-60
Length cut:
500-6000mm
Length accuracy:
±1.0mm (L=2000m)
Diagonal accuracy:
±1.5mm (L=2000mm)
Leveling accuracy:
±1.0mm/㎡
Speed of cutting:
20-30pcs/min
Ingress protection:
control and operation cabinet IP40
Paint of the machine:
according to Buyer's demands
Total power:
pprox. 80KW
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
A LETTER FOR YOU

Dear buyer,

We are a professional supplier of Chinese leading slitting line and cut to length line.

To get a quotation with detailed specification from us, please send us the following details:
Material and thickness range
Maximum coil weight and width
Maximum cutting length


Please do not hesitate to ask for machine videos from us.

Waiting for your inquiry!

Thanks&regards,

Shirley @ haoshuomachine.com
Whatsapp/Wechat: +86 188 0056 1506
Wuxi Haoshuo Technology Co., Ltd.

Product Description

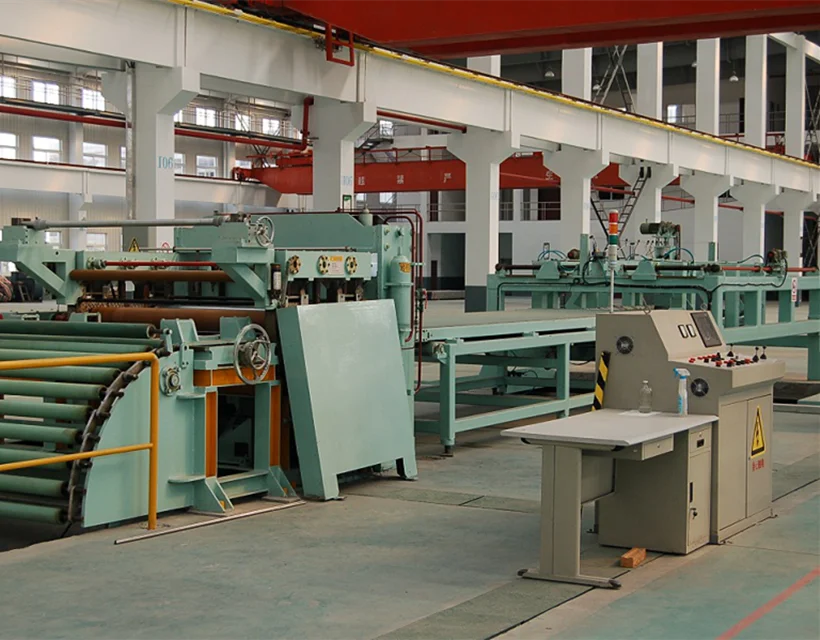

The cut to length line has the feature of high precision, topping stabilization, and excellent performance. Using PLC system to control the whole line's work, the operation is convenient and easy.

Process Description

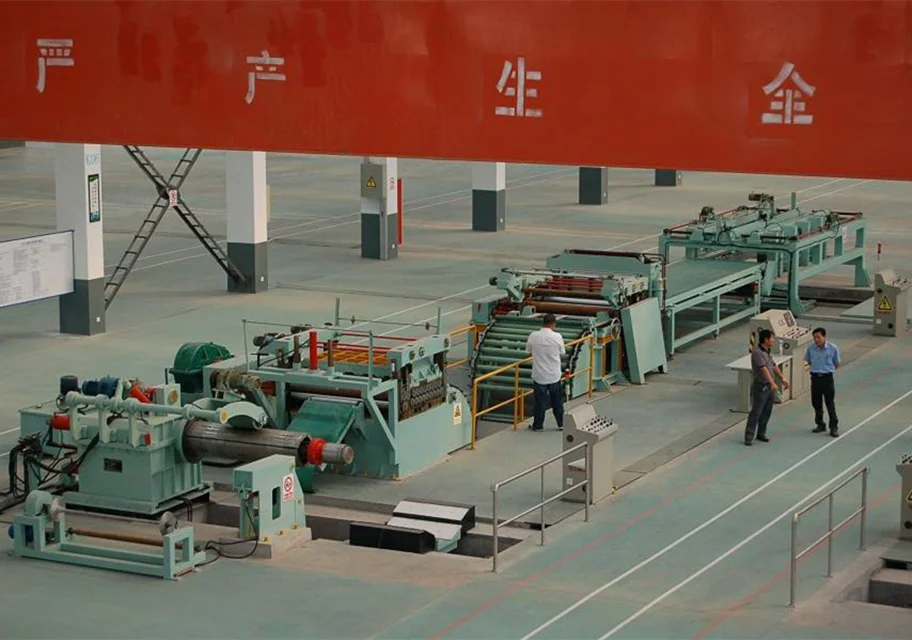

The sheet coil is placed onto coil table by hoist/traveling crane, then loaded & elevated to appropriate position, and pushed into the spindle of decoiler by movement of trolley automatically.

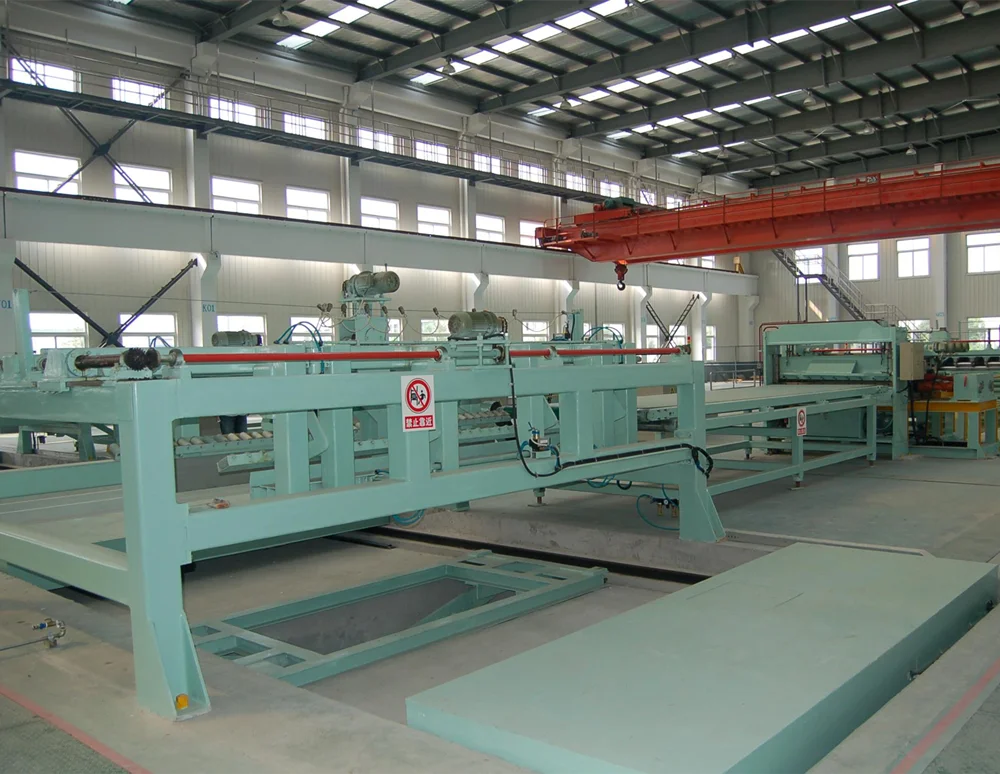

The steel sheet is fed into leveler through guiding device, like traction head, peeler, pinch roll, and then sent to buffer pit through loop-bridge. By adjusting the correct device to centering of the sheet, it goes through into precision leveling & length measuring machine, and then the cutting machine to cut to length.

The sheet is cut into required length controlled by PLC. The finished sheets are transported to auto stacker, and placed orderly.

Main Components
Name
Quantity
Coil holder
1 set
Loading trolley
1 set
Single load hydraulic decoiler
1 set
Guiding device
1 set
Pinch roll & 17-roll leveler
1 set
Loop bridge & buffer pit
1 set
Centering device
1 set
Precision leveling & measuring machine
1 set
Shear
1 set
Auto-stacker
1 set
Hydraulic station
1 set
Pneumatic system
1 set
Electric control system
1 set
