Portable New Zealand Movable Half-round Metal Rain Gutter Forming Machine

FOB Reference Price:Get Latest Price
$8,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
R76.5
Power(W):
2.2 Kw
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Tile Forming Machine
Production Capacity:
10-15m/min
Certification:
CE/ISO9001
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Tile Type:
Glazed Steel
Use:
Roof
Place of Origin:
Jiangsu, China
Brand Name:
HS
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
4000*600*1000
Weight:
3 T
Shaft material:
High grade 45# steel
Shaft diameter:
60mm
Maximum Coil Weight:
3 ton
Operation:
Automatic or manual
Cutting Tolerance:
+/-1.5mm
Raw Material:
Steel, Aluminum, etc.
Forming station:
Free floating, 45# steel, heat treatment, coated with chrome
Material of Cutting Blade:
Cr12
Cutting type:
Hand Operate
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Product Description

All our machines are designed and manufactured according to customers' requirements. This portable roll forming machine is used to produce gutter. Such machine is very convenient to remove.

Detailed Images

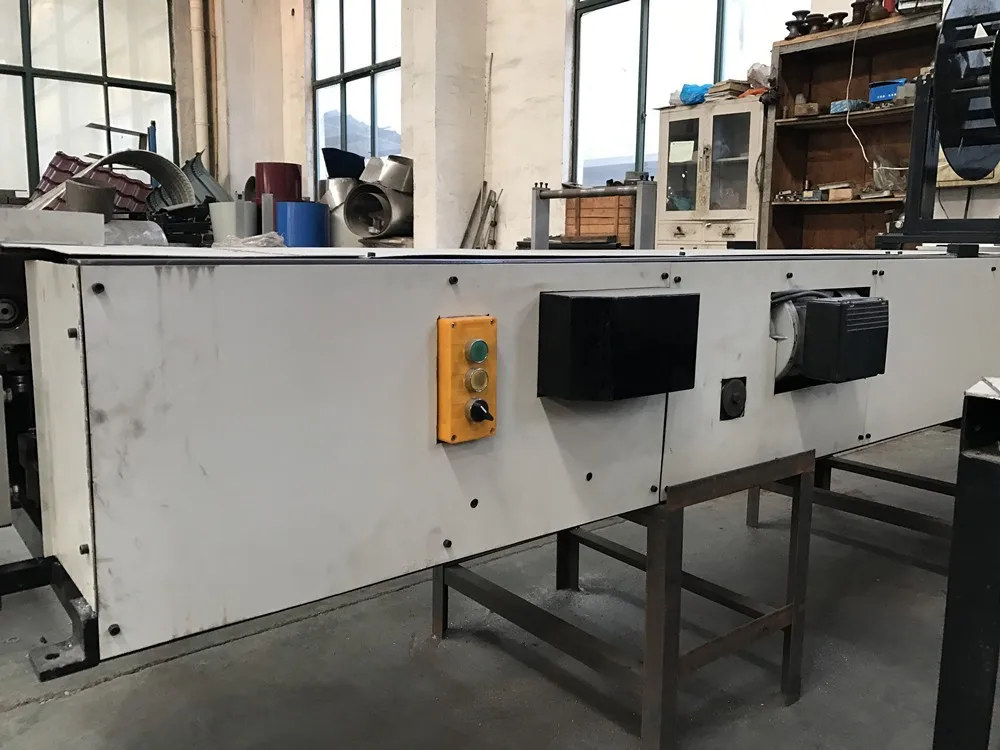

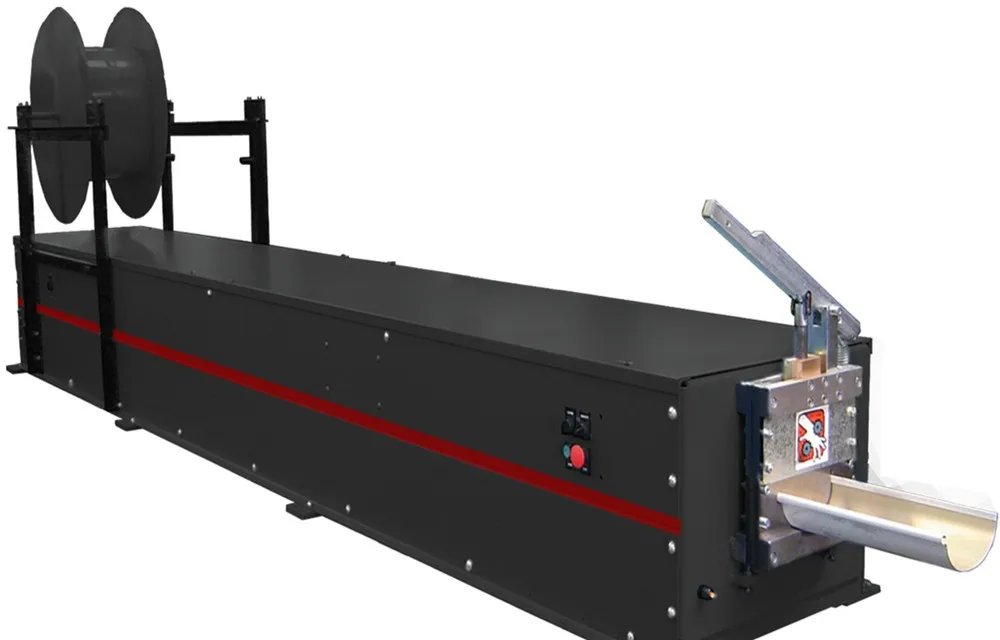

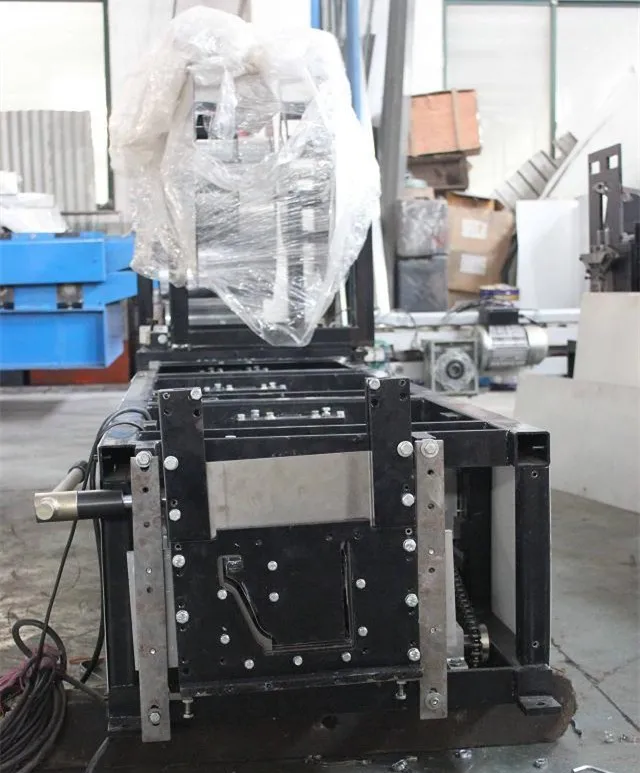

Portable Metal Rain Gutter Roll Forming Machine
Material Thickness
0.4-1mm
Material Width
Depend on specific profile
Raw Material
Steel, Aluminum, etc.
Maximum Coil Weight
3 ton
Forming Speed
0-12m/min
Diameter of Shaft
60 mm
Shaft
45# steel with heat treatment HRC50-55
Forming station
Free floating, 45# steel, heat treatment, coated with chrome
Motor Power
2.2kw
Cutting Tolerance
+/-1.5mm
Cutting Type
Hand Operate
Cutting Blade
Cr12 Mov
