Rolling Shutter Strip Forming Machine / Shutter Door Roll Forming Machine

FOB Reference Price:Get Latest Price
$8,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
RS-80
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
5.5kw
Certification:
CE Standard
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
12-16Mpa
Production Capacity:
8-15m/min
Place of Origin:
Jiangsu, China
Brand Name:
HS
Voltage:
380V/50HZ 3Phase
Dimension(L*W*H):
8000X1200X1200mm
Weight:
3.5 Ton
Shaft material:
High grade 45# steel
Shaft diameter:
76mm
Material of forming rollers:
40Cr
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Touch Screen:
MCSG
Material of Cutting Blade:
Cr12
Cutting type:
Hydraulic Cutting
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment.
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
A LETTER FOR YOU

Dear buyer,

1. Please feel free to contact us.

2. Send us details, so that we can make a quotation for you.

3. Click ' Add to Compare' if you have any interest.

Waiting for your inquiry!

Thanks&regards,

Shirley

Whatsapp: 0086 188 0056 1506
Wuxi Haoshuo Technology Co., Ltd.

Product Description

This iron rolling shutter forming machine can be customized as per customers' requirements, normally is for producing aluminum rolling shutter door. Nowadays rolling shutter become more and more popular all over the world.

Detailed Images
Components
Technical Parameters
Quantity
1
Uncoiler
1.Width: 100-300mm
2.Speed: Based on the machine speed
3. I.D: 460-508mm; O.D: 1350mm
1 set
2

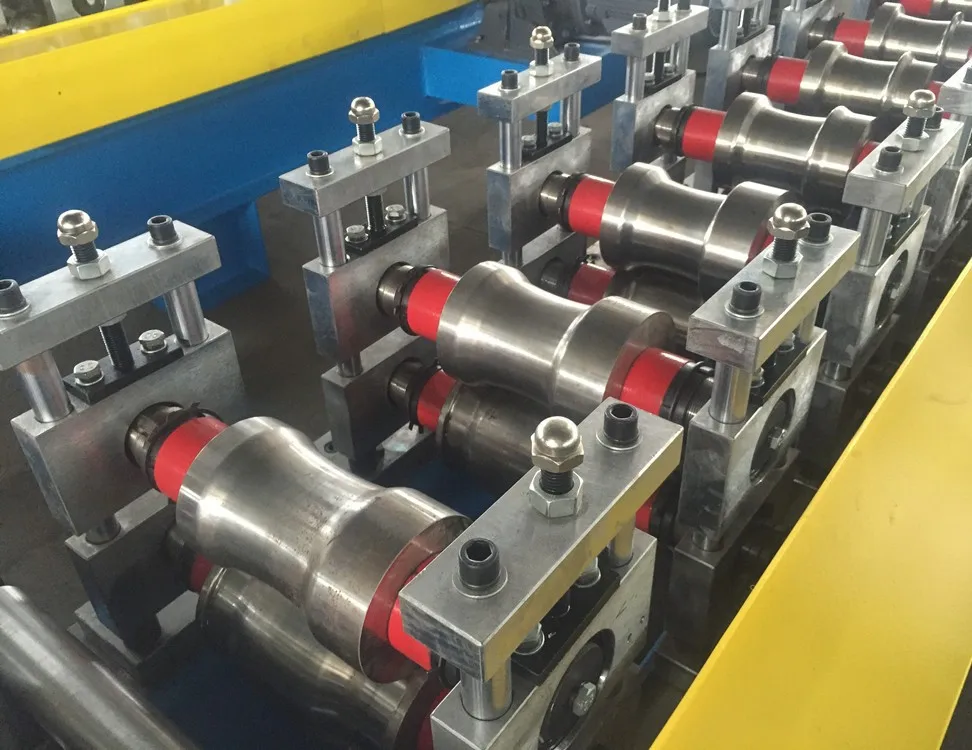

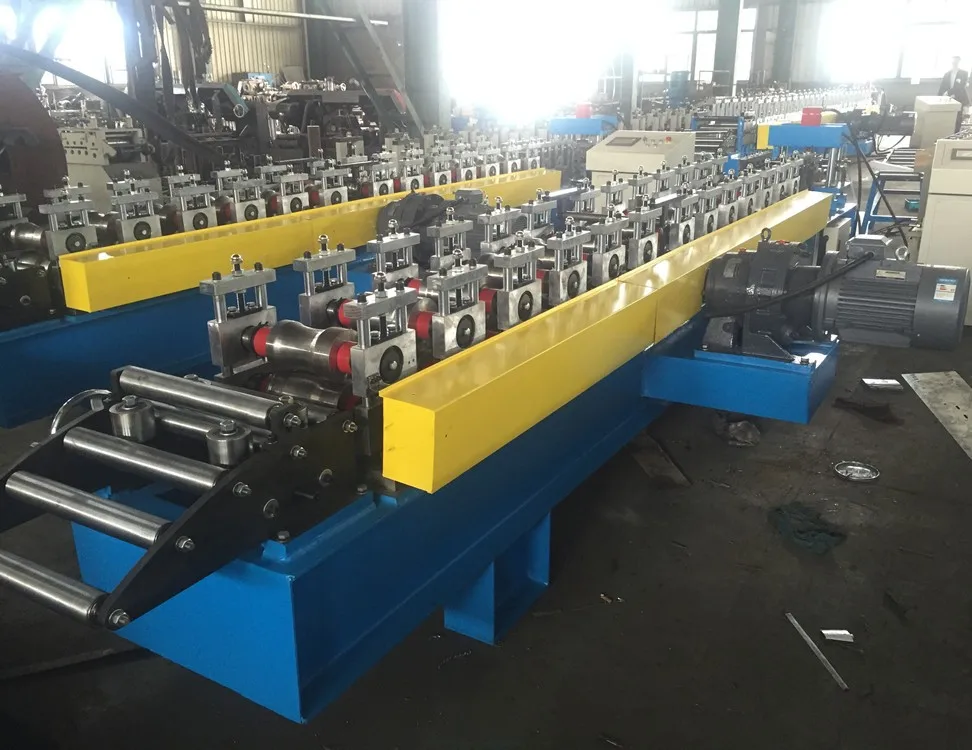

Roll Forming Machine
1.Shaft: ¢60mm, 40Cr, bottom shaft driven
2.Forming Station: 12-16 stations
3.Forming Speed: 10-15m/min
4.Motor Power: 5.5kw
5.Driven: Chain
1 set
3

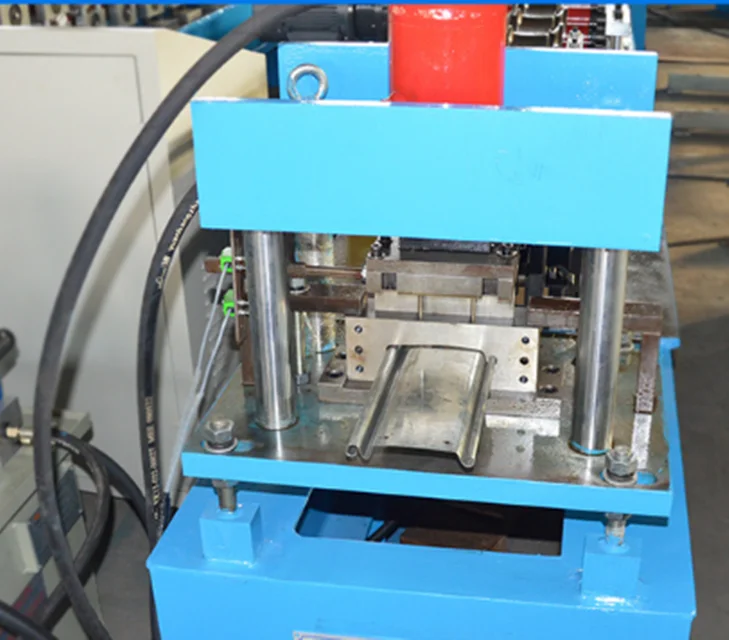

Cutting Device
1.Cutting Type: Hydraulic Cutting
2.Material Of Cutting Mold: Cr12mov HRC 60-62
3.Cutting Length And Quantity: Clients set length and quantity on PLC touch screen
4.Cutting Pressure: 12-16Mpa
5.Hydraulic Station Power: 4KW
6.   Tolerance Of Cutting Length: +/-2mm
1 set
4
Collection Station
1. Angle iron welded, rollers chromed
2 pieces
5
Hydraulic Station
1. Power: 4kw
2. Solenoid Value: Beijing Huade
1 set
6
PLC System
1.Computer Control System: Panasonic PLC
2.Encoder: Omron brand
3.Converter: Yaskawa
4.Touch screen: MCGS, 10 inch
5.Pressure of Hydraulic Station: ≧16Mpa
6.   Current: 380V, 50Hz, 3 phase
1 set
