High Quality 2 Wave/ 3 Wave Highway Guardrail Roll Forming Machine

FOB Reference Price:Get Latest Price
$50,000.00 - $80,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
guardrail
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
11kw
Certification:
CE Standard
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
12-16Mpa
Production Capacity:
8-15m/min
Place of Origin:
Jiangsu, China
Brand Name:
HS
Voltage:
380V/50HZ 3Phase
Dimension(L*W*H):
8000X1200X1200mm
Weight:
8 Ton
Shaft material:
High grade 45# steel
Shaft diameter:
76mm
Material of forming rollers:
GCr15, HRC58-62, Chroming of 0.05mm thickness
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Touch Screen:
MCSG
Material of Cutting Blade:
Cr12
Cutting type:
Hydraulic Cutting
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Product Description

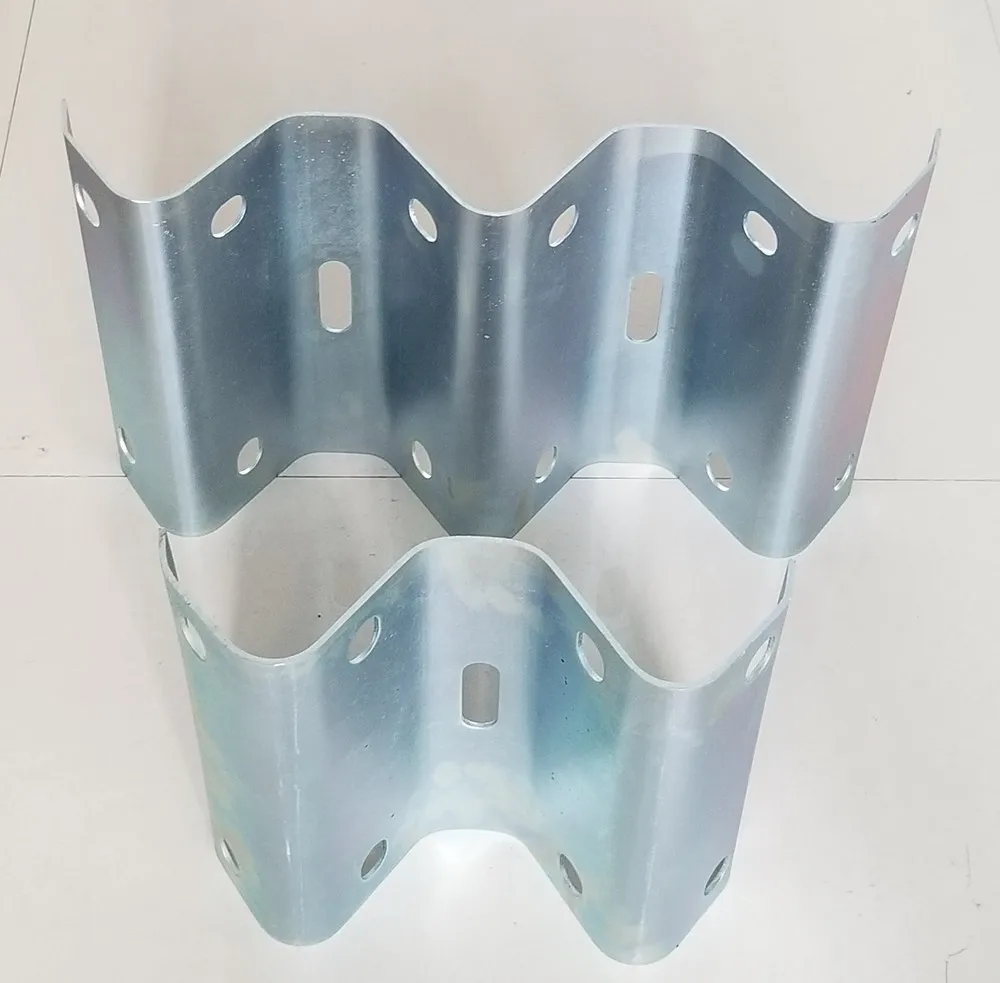

Guardrail is most used in high way road. Our high accuracy guard rail roll forming machine adopts gear box transmission. Produced guardrails are in high quality, easy to be installed and have long lasting life time.

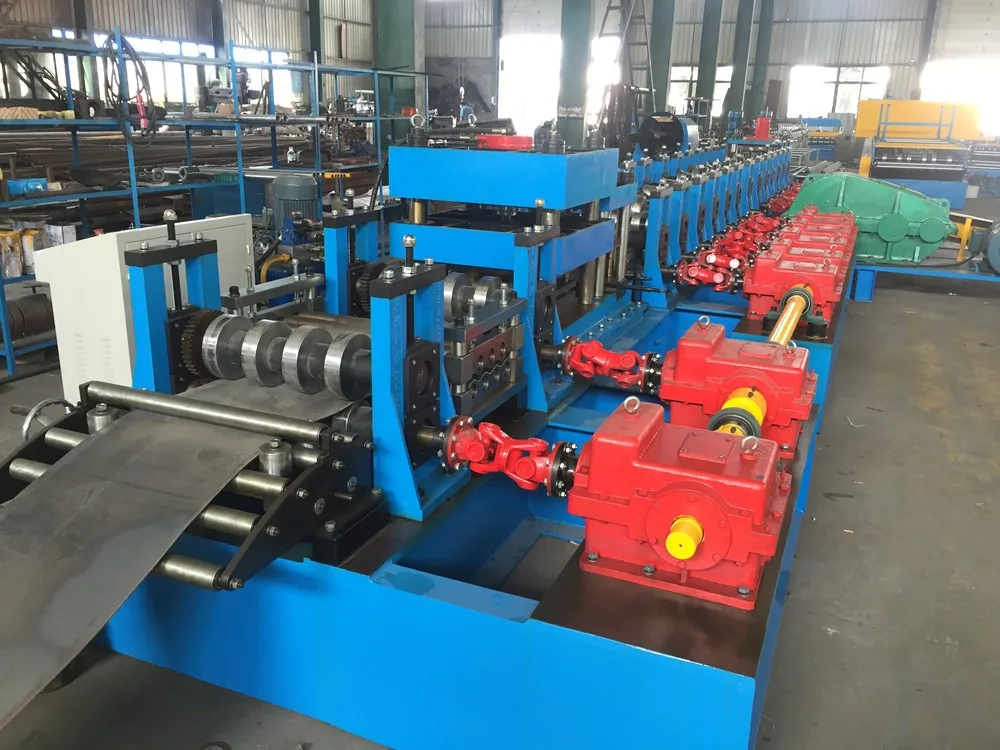

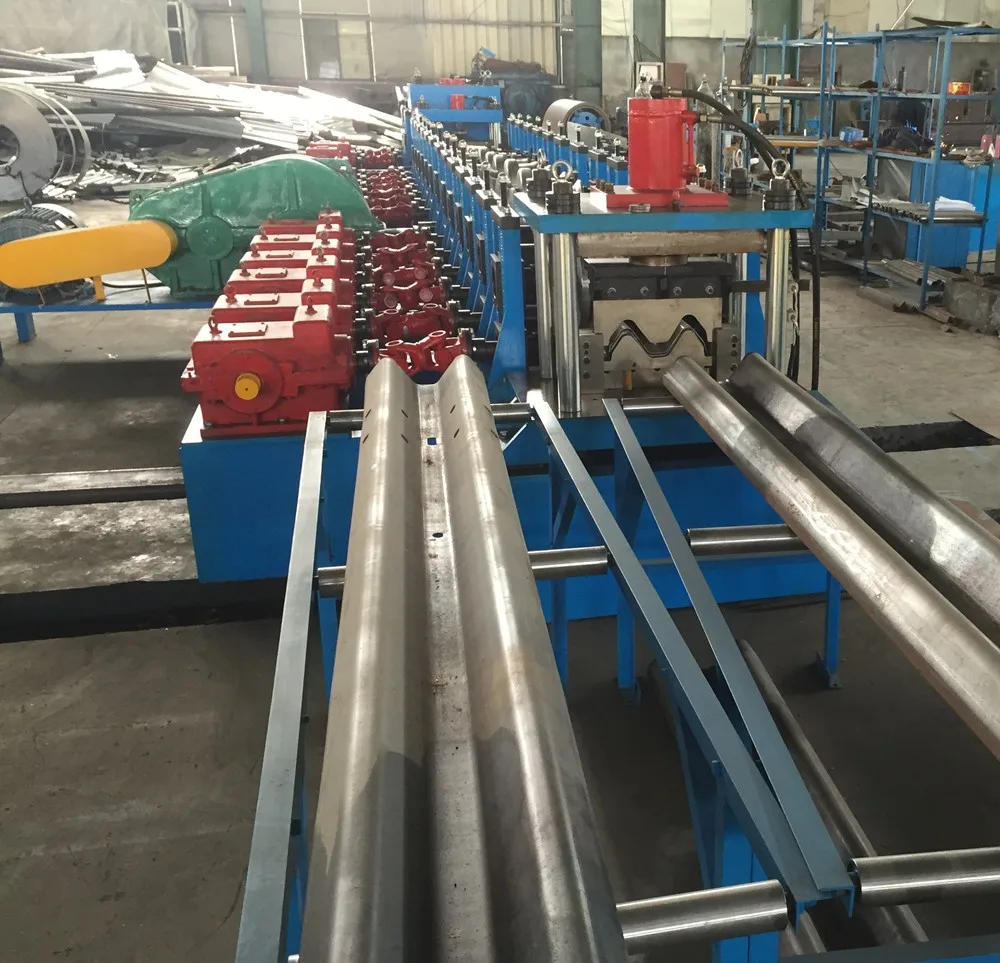

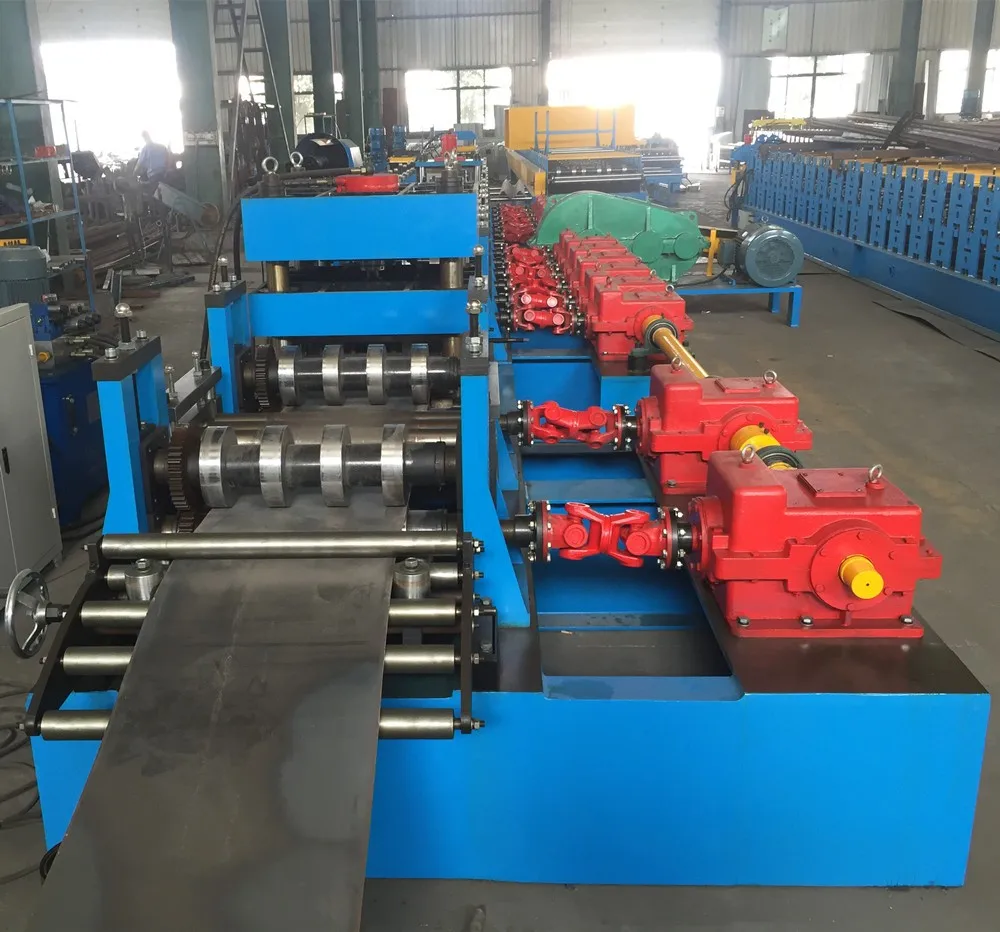

Detailed Images

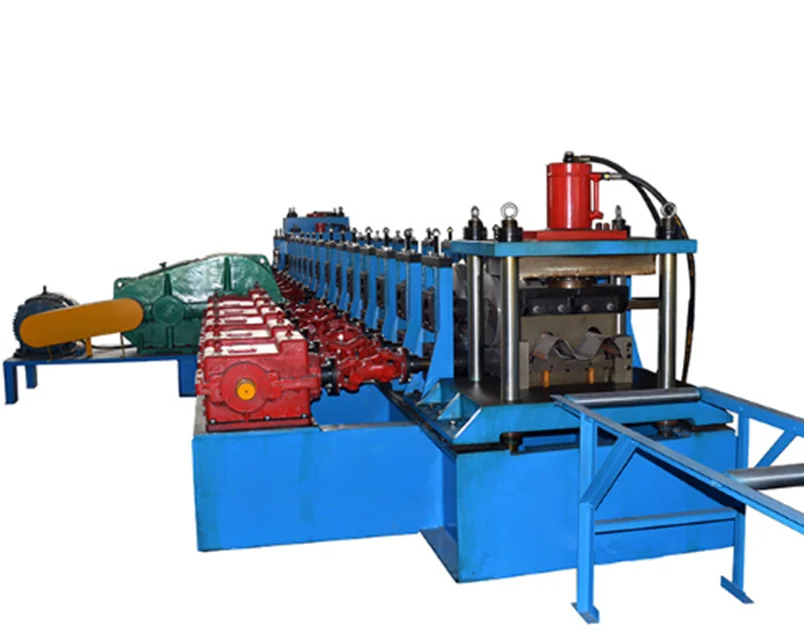

2/3 Wave Highway Guardrail Roll Forming Machine
Steel Thickness
1.5-3mm, 2-4mm
Feeding Width Range
660-800mm
Entrance And Guide Roller
45# steel, ¢65mm, HRC48-52 surface chromed
Leveling Roller
Upper layer 4 rollers, down layer 5 rollers, totally 9 rollers
Leveling Roller Material
45# steel, thermal treatment hardness 48-52 HRC.
Leveling Shaft Material and Diameter
45# steel, ¢76mm, hardening and tempering
Raw Material
Carbon steel, GI, G550, etc.
Forming Speed
Not less than 10m/min
Line Speed
6-8m/min(include punching and cutting)
Shaft Diameter
¢76mm
Shaft Material
High grade 45# steel
Roller Material
GCR15, HRC58-62, with surface chromed, CNC
Transmission
By gear box
Main Motor Power
18.5-37.5kw
Punching Power
22kw
Cutting Motor Power
11-22kw
Blade Material
Cr12 steel with quenched treatment HRC 60-62
Tolerance of Length
+/- 1.5mm Each piece end product
Forming Station
12-20 Stations
PLC Brand
Panasonic
Encoder
Omron
Operating System Language
English and Chinese
