Dry-type Transformer Automatic Epoxy Resin Vacuum Casting Equipment

FOB Reference Price:Get Latest Price
$80,000.00 - $150,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HS-300A
Customization:
size (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Transformer manufacturing
Place of Origin:
Jiangsu, China
Brand Name:
Hao Shuo
Condition:
New
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Casting tank size:
D2400*300
Main pump speed:
300 L per second
Working temperature:
70~85℃
Casting tank limiting vacuum:
≤30Pa
Casting tank leakage rate:
≤100Pa.L per second
Casting tank working vacuum:
100~300Pa
Casting tank working pressure:
ordinary pressure
Final material mixing tank:
300L
Max. effective mould size:
D1400*1800
Annual production capacity:
1M KVA
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Port
Shanghai
Product Description

Our vacuum casting machine adopt industrial computer controlling & manual controlling modes. Automatic record material tank, casting tank, mould temperature, vacuum degree. Preset material tank feeding rate.


Material mixing tanks adopt electrical heating, automatic temperature control. Casting tank adopts electrical heating plate directly heating. Each heating system has rock wool insulation. Casting tank equipped with stainless steel plate shield. Mixing tank equipped with steel plate shield. Surface temperature of the insulation is not higher than room temperature by 20℃.

Detailed Images

1. Main component of the machine

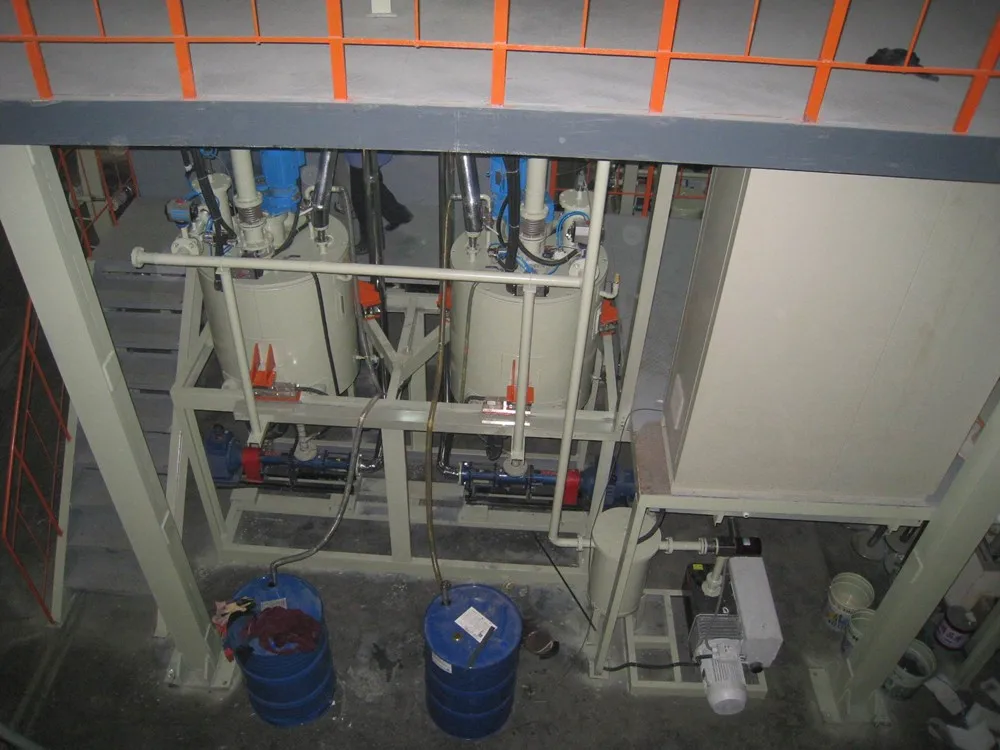

1.1,300L resin mixing & degassing system................................................1 set
1.2,300L hardener mixing & degassing system..........................................1 set
1.3,Electronic scale system.....................................................................1 set
1.4,300L final material mixing system......................................................1 set

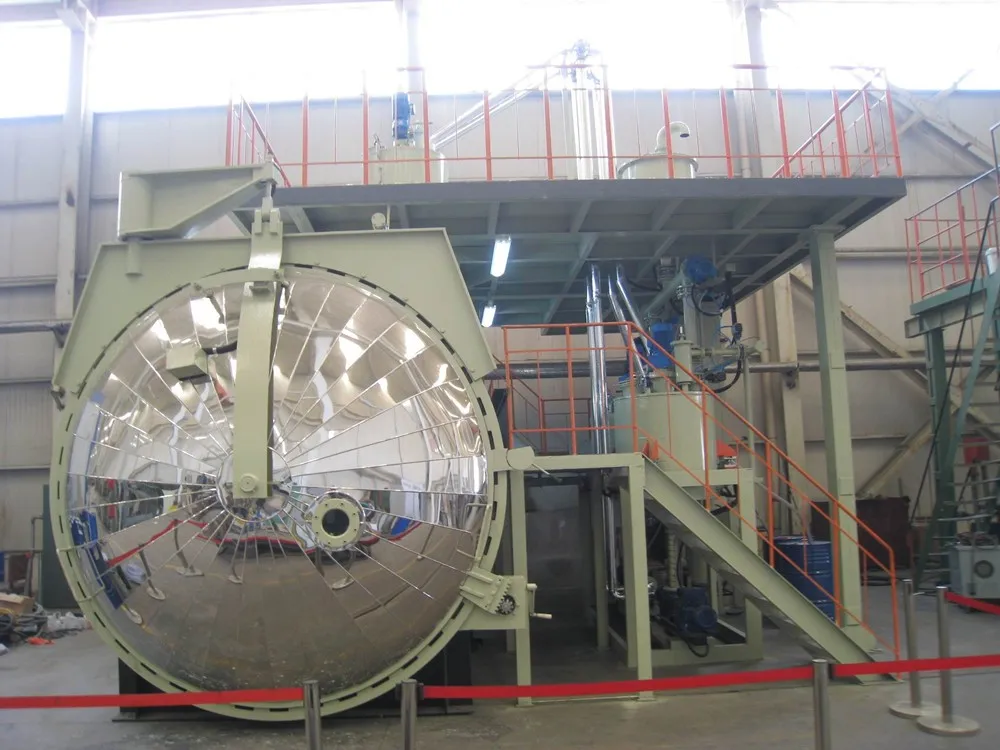

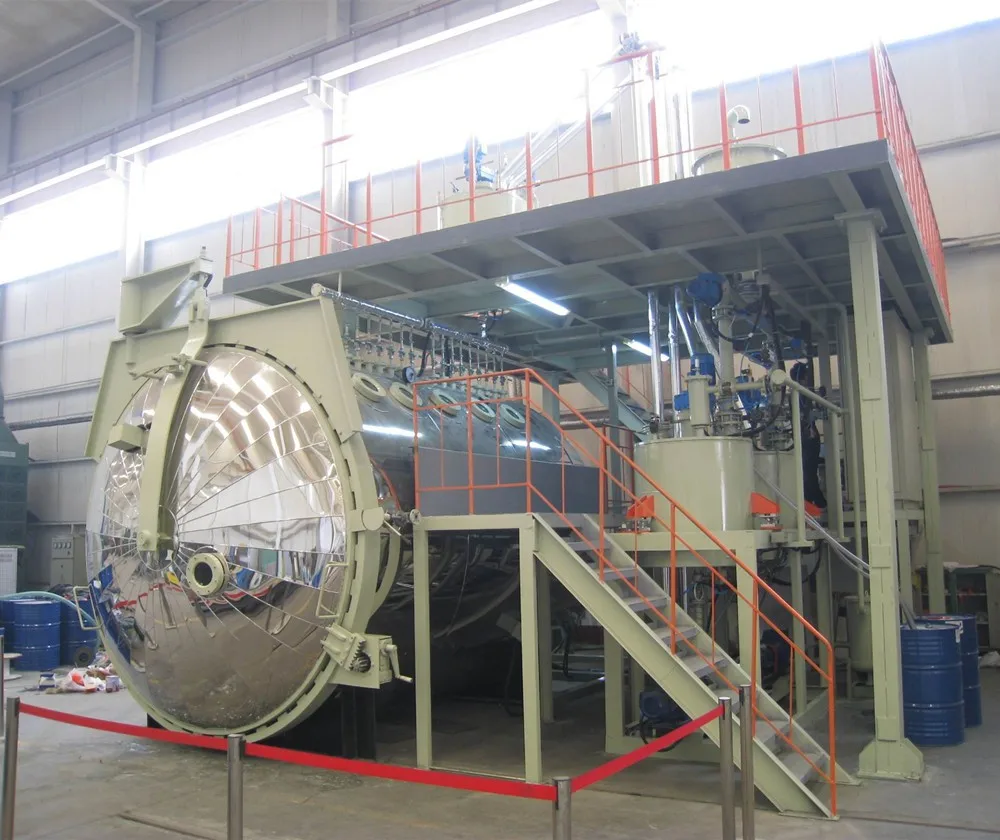

1.5,Vacuum casting tank system.............................................................1 set
1.6,Heating system...............................................................................4 sets

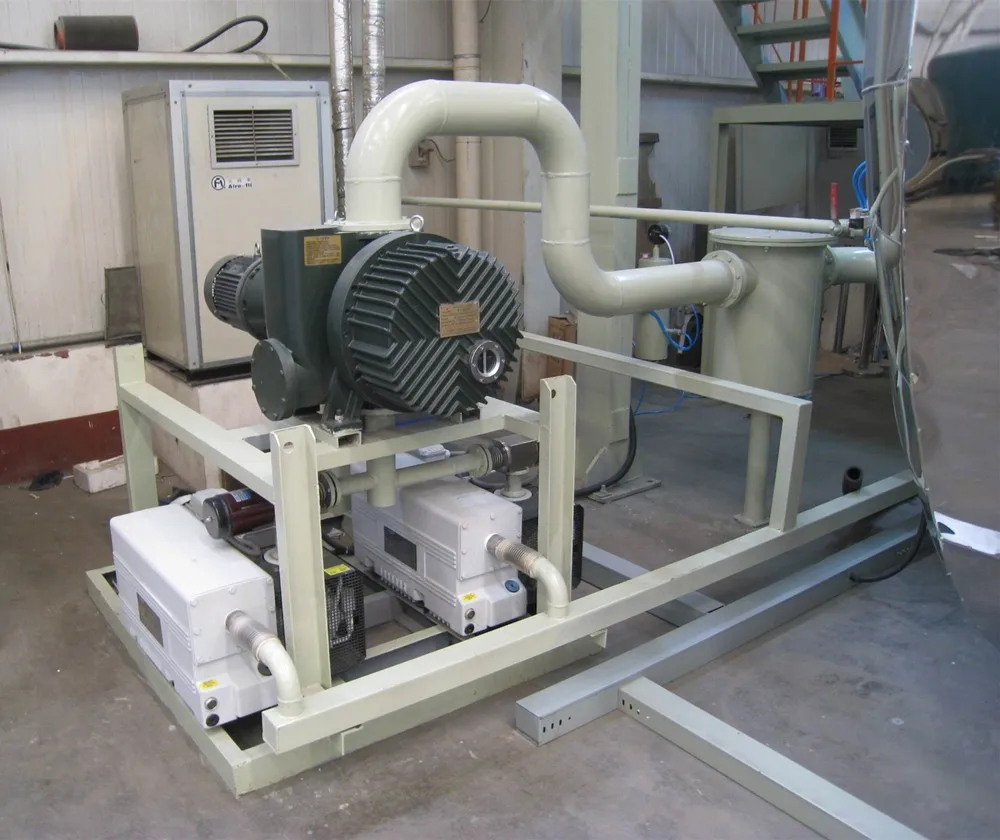

1.7,Vacuum pump system......................................................................2 sets
1.8,Pneumatic pipeline system................................................................1 set
1.9, Cooling water pipeline system...........................................................1 set
1.10,Material feeding system...................................................................1 set

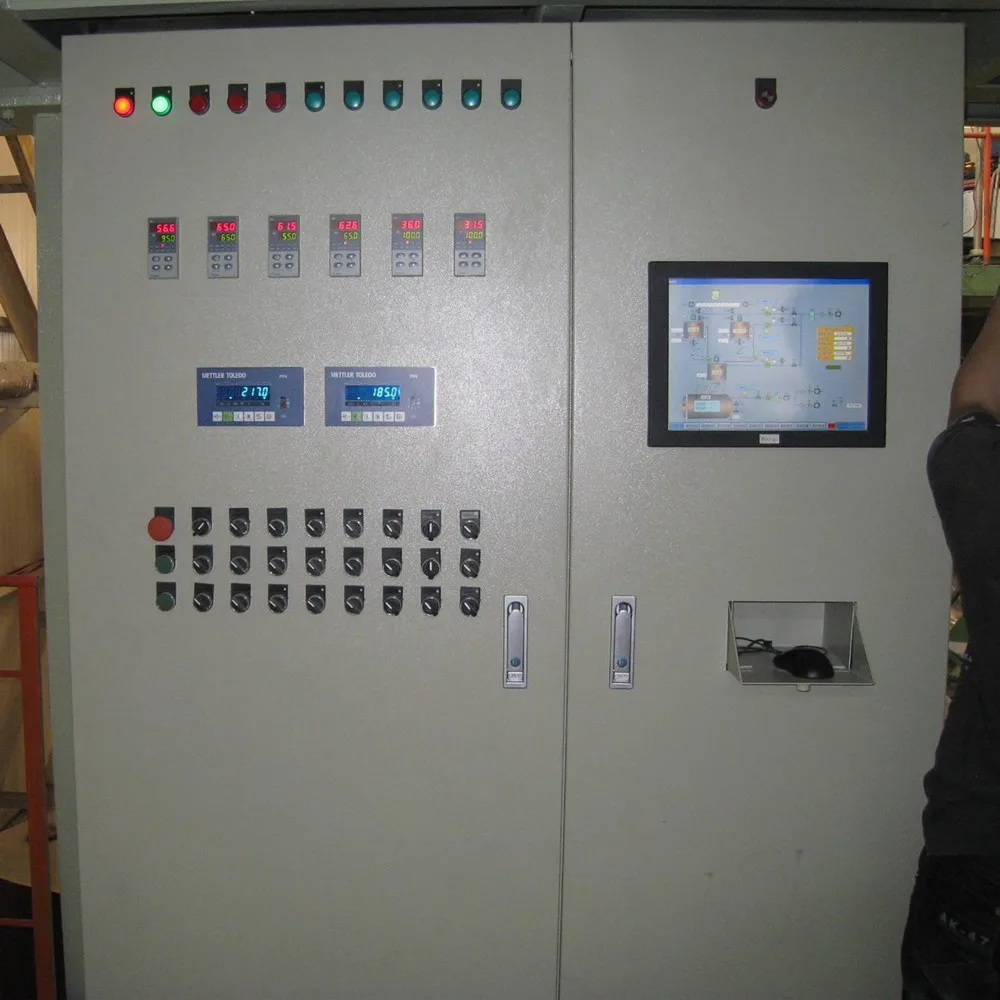

1.11,Electrical controlling system.............................................................1 set


2. Equipment technical index and parameter
2.1,Casting tank size Φ2400×300mm
2.2,Main pump speed 300L∕S
2.3,Casting tank working temperature 70~85℃
2.4,Casting tank limiting vacuum ≤30Pa
2.5,Casting tank leakage rate ≤100Pa.L∕S
2.6,Casting tank working vacuum 100~300Pa
2.7,Casting tank working pressure ordinary pressure
2.8,Adopt electronic scale& high viscosity pump for material feeding
2.9,Adopt dynamic material mixing
2.10,Adopt vacuum casting technology
