Semi-automatic Transformer Core Lamination V Notching Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $100,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Haoshuo
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
CRGO thickness:
0.23~0.5mm
Cutting width:
40-400mm
V-shape cutting depth:
Maximum 200mm
V-shape angle tolerance:
±1.2
Cutting burr:
0.02mm
Cutting stroke:
20mm
Cutting speed:
130rpm
Air compressor:
0.8Mpa
Blade material:
YG20 hard alloy
Total weight:
1200kg
Condition:
New
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy packing for V notching machine
Port
Shanghai
Product Description

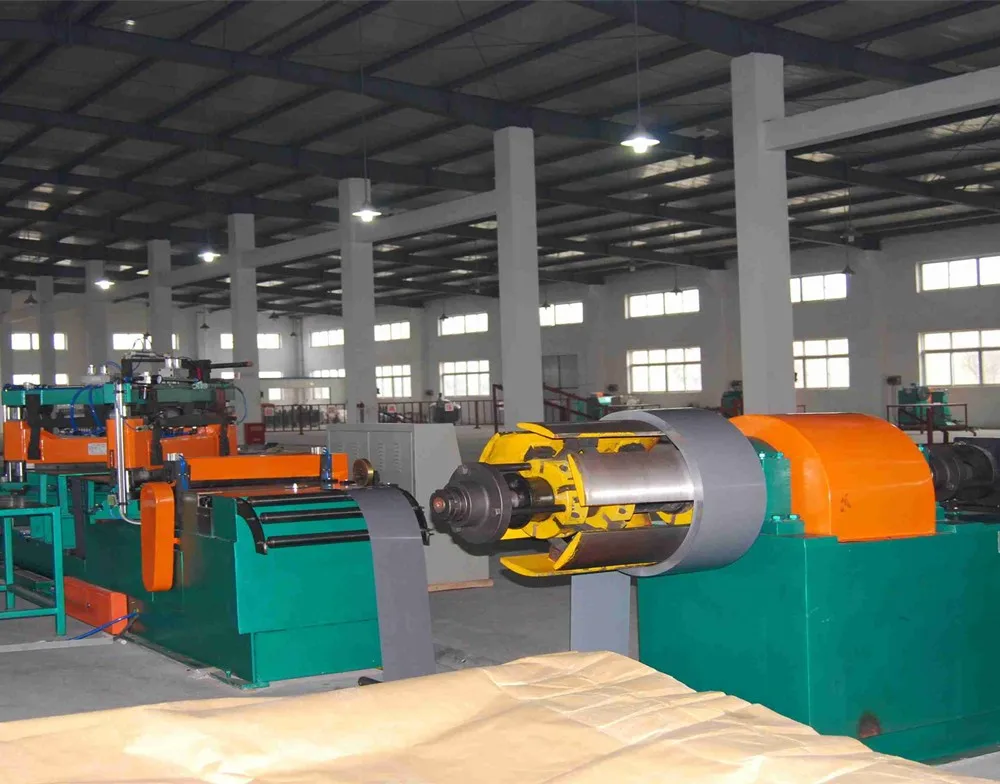

This machine is for core lamination V notching, it will be work together with the semi-automatic core cut to length line.
The cutting blade adopts the high quality hard alloy, more than 500000 times cutting before grinding.


Looking for any transformer machine please do not hesitate to send us an inquiry!

Main Specification
Item
JY-400
JY-500
JY-600
CRGO thickness
0.23~0.5mm
Cutting width
40-400mm
40-500mm
40-600mm
V-shape cutting depth
Max 200mm
Max 260mm
Max 320mm
V-shape angle tolerance
±1.2¢
Cutting burr
£0.02mm
Cutting stroke
20mm
Cutting speed
130rpm
Air compressor
0.8Mpa
Blade material
YG20 hard alloy
Outer dimension
2700*1295*1630
3500*1295*1630
3500*1295*1630
Total weight
1200kg
1400kg
1500kg
