Semi-Automatic Transformer Core Cutting Line

FOB Reference Price:Get Latest Price
$60,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
1 Year
Silicon steel thickness:
0.23-0.5mm
Burr:
≤0.03mm
Steel width:
40-400mm
Width tolerance:
≤0.1mm
Productivity:
If L=1000mm, about 28 pcs/min
Blade material:
YG20 hard alloy
Suitable coil ID:
460-520mm, or as per your requirement
Total line length:
10.5m
Paint of the machine:
according to Buyer's demands
Length tolerance:
±0.2mm/1000mm
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Product Description

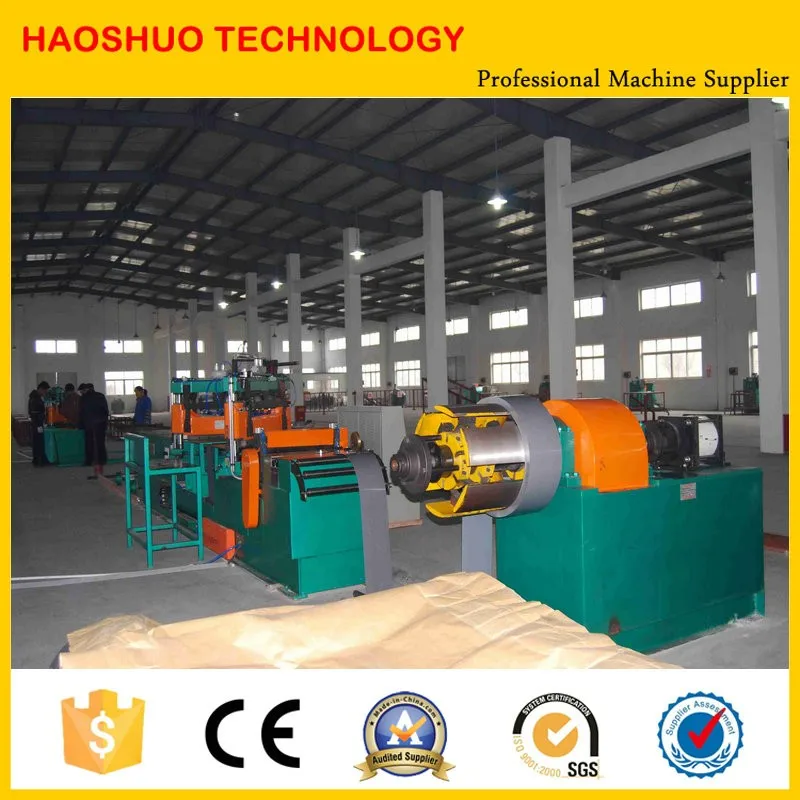

This semi-automatic core cutting line has two cutters, one is for 45°, the other one is for 135° or 90°. It has to work with V-notching machine and hole punching machine to produce the core pieces completely.

Main Line Components

VF automatic decoiler, pneumatic expansion
VF feeder

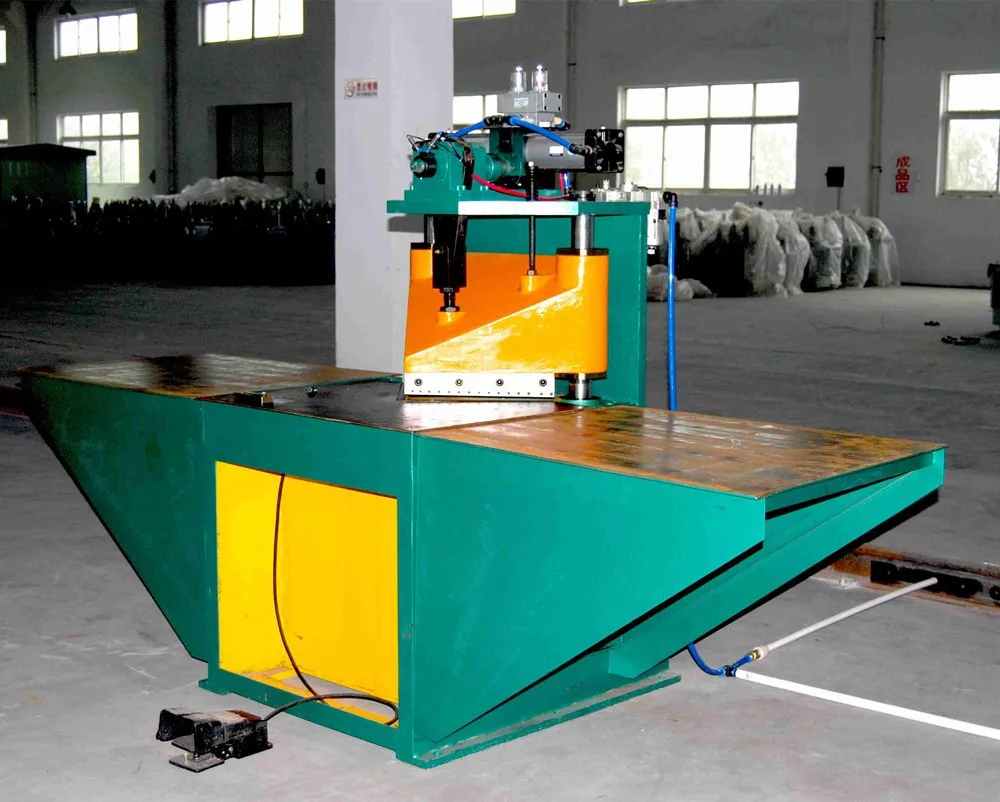

No. 1 shear(45°)

No. 2 shear (135° or 90°)
Product receiving table
Lifting trolley
PLC Control cabinet

Main Specification
Item
BHJ 400
BHJ 500
BHJ 600
Silicon steel thickness
0.23-0.5mm
Strip width
40-400
40-500
60-600
Suitable coil ID
460-520mm, or as per your requirement
Length tolerance
±0.2mm
Cutting burr
Max 0.02mm
Productivity
If L=1000mm, about 28 pcs/min
Cutting angle tolerance
≤0.5º/1000mm
Blade material
YG20 hard alloy
Total line length
10.5m
10.5m
18.5m
