Fully Automatic Power Transformer Pressed Steel Radiator Panel Production Line

FOB Reference Price:Get Latest Price
$50,000.00 - $120,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
raidator
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Condition:
New
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Standard panel size:
310mm, 320mm, 460mm, 480mm, 520mm, 535mm, etc
Panel length:
500-4000mm
Length tolerance:
±1.0mm
Panel bearing positive pressure:
Positive pressure≥ 0.15Mpa
Panel bearing negative pressure:
negative pressure ≥ 133Kpa
Panel material:
ST12, SPCC, DC01 cold rolled steel, 1.0-1.2mm
Total power:
Approx 315KW
Total line dimension:
46.5m X 3.5m
Warranty:
12 Months
Voltage:
380V
Supply Ability
Supply Ability:
1 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Port
Shanghai
Video Description
Description

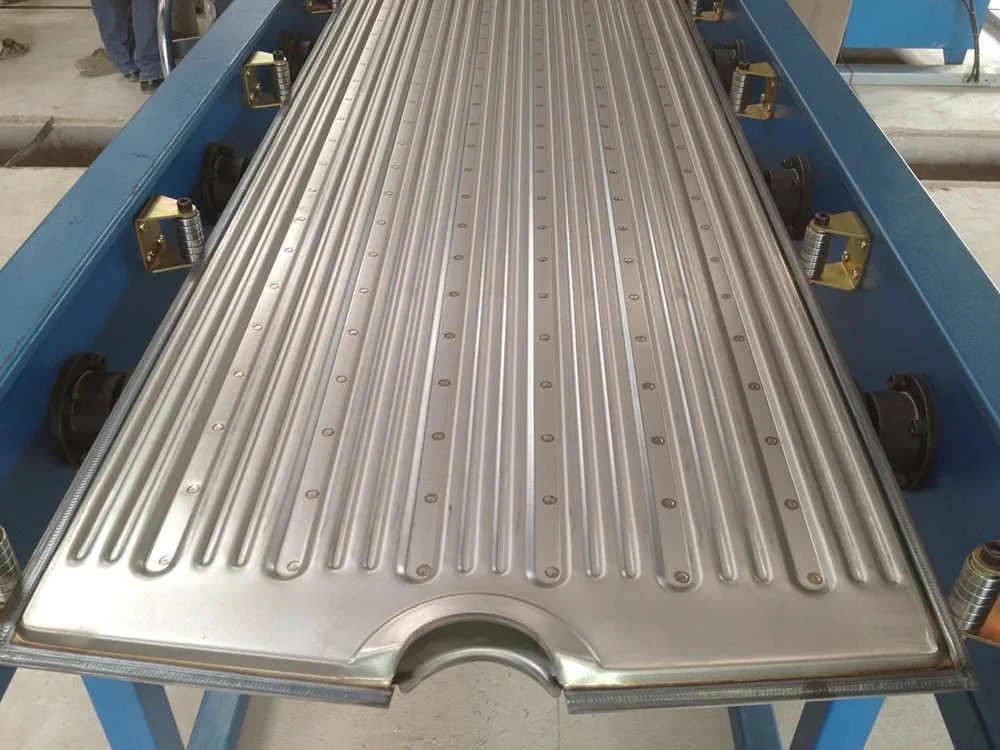

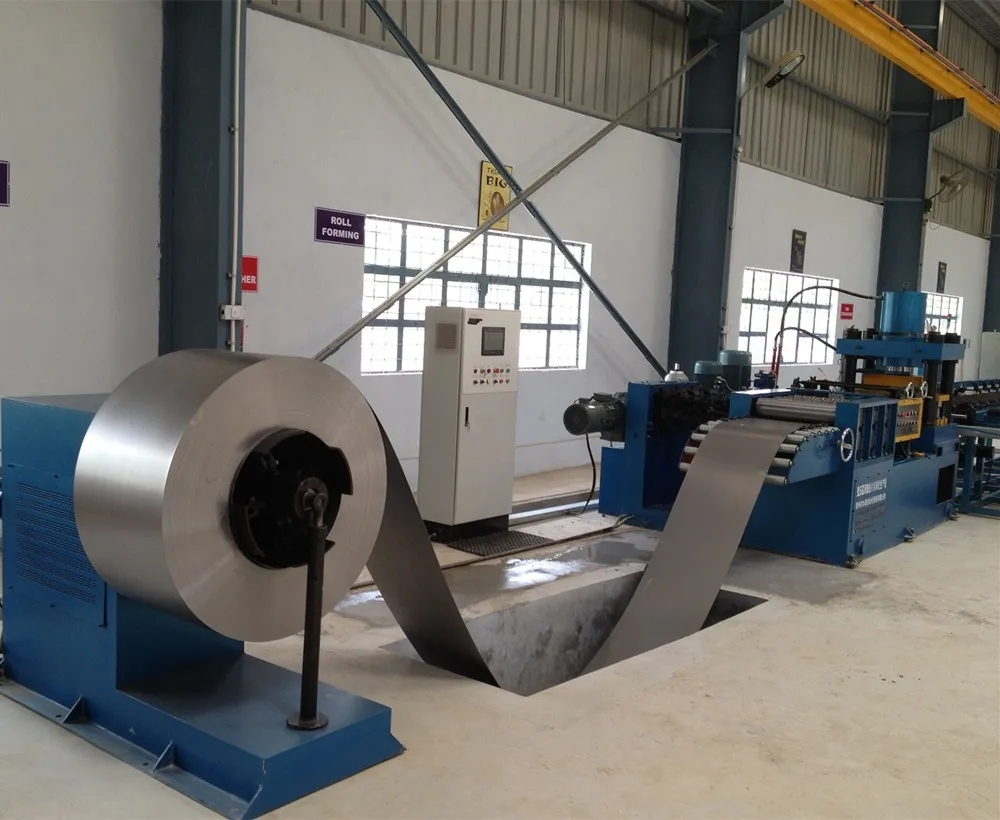

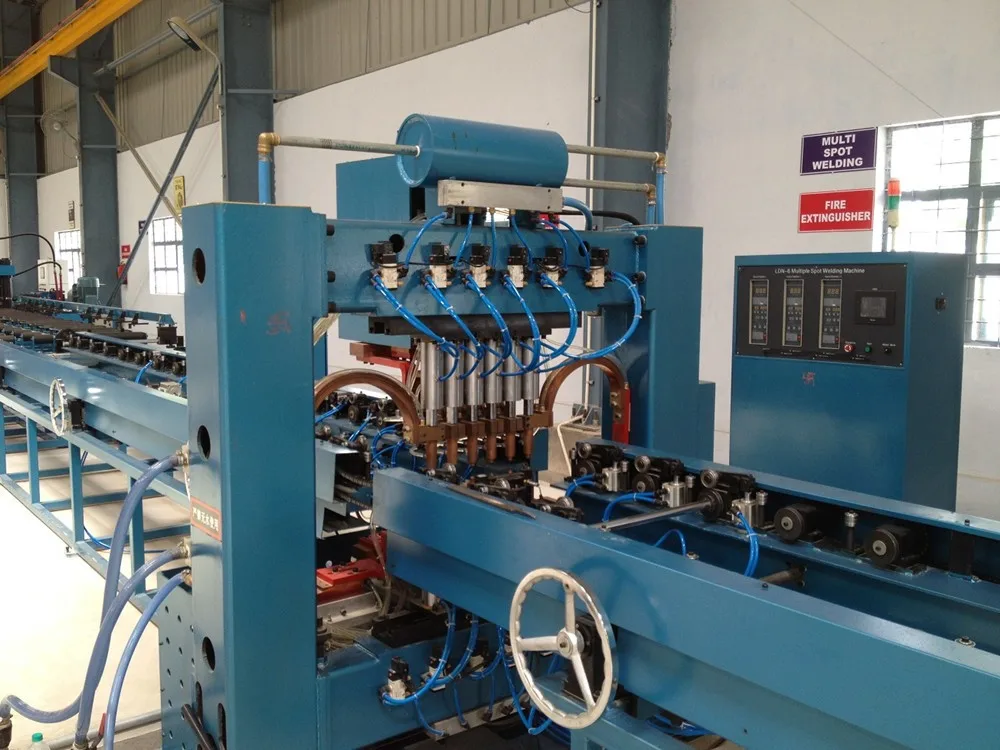

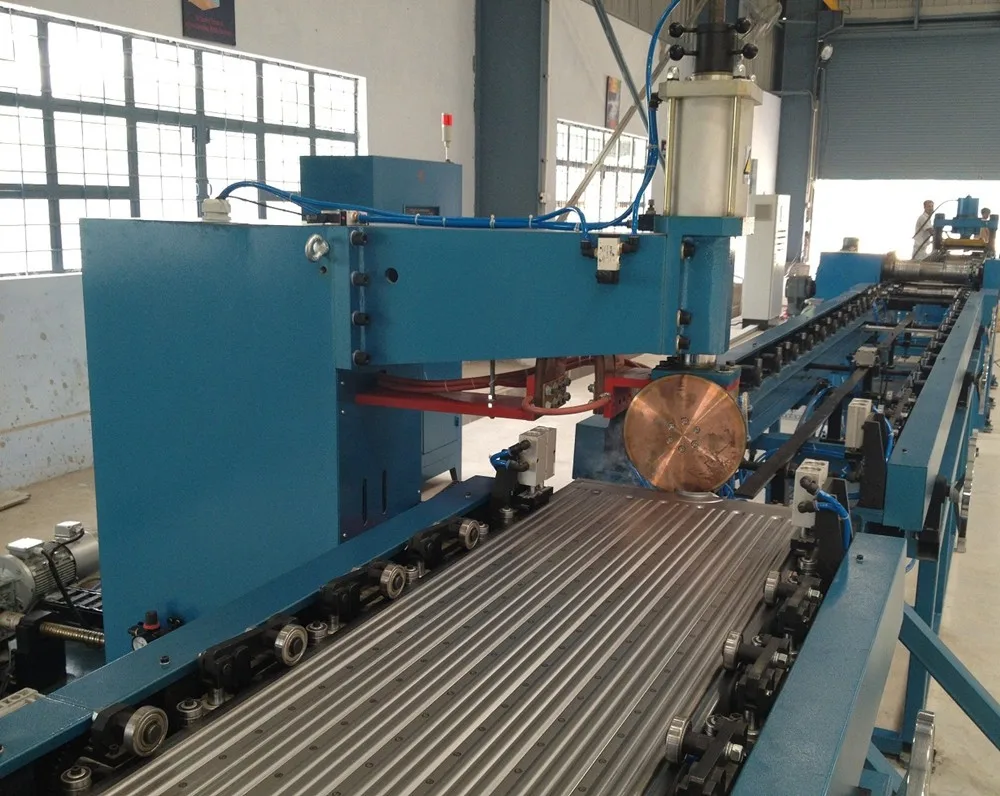

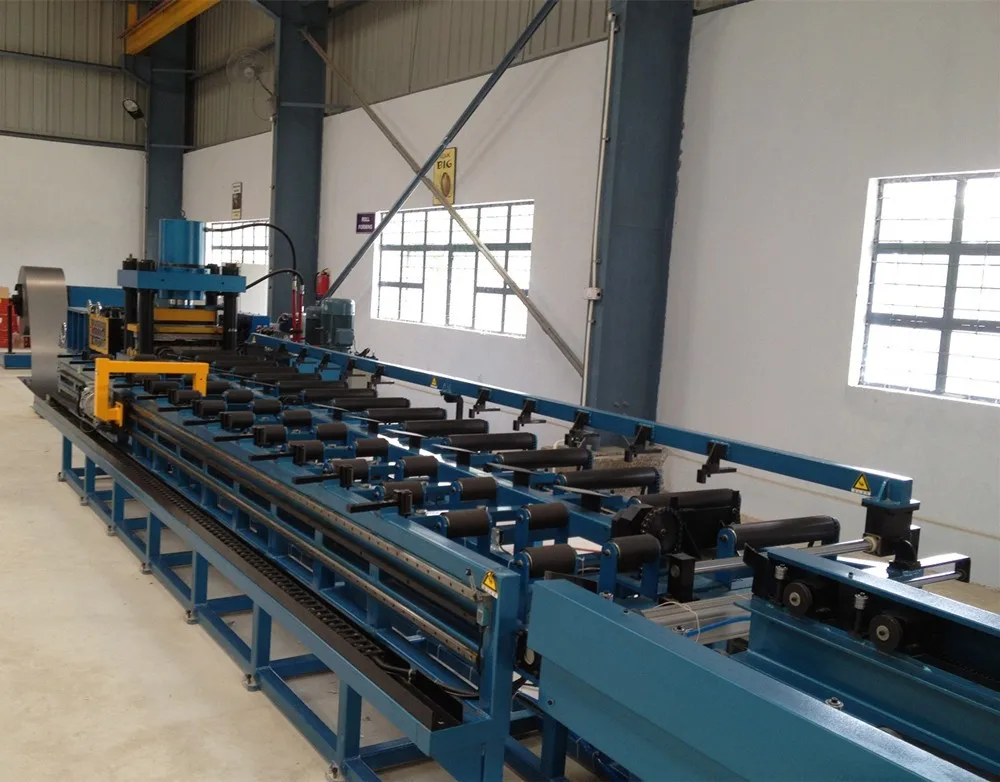

Our automatic radiator (for transformer) production line mainly absorbed, improved & updated the technology and design of Germany GEORG & Canada MTM. Our machine performance reaches the international standard class, and the price is much economical and competitive. The whole line is composed of automatic decoiler, roll former, turn over platform, multiple spot welder, side seam welding machine, head welding machine, side shearing machine, head cutting machine, and forwarding table, etc. The size is 320, 460, 480, 520, 535, or custom-design (as per client's actual requirement). Panel length is 500mm-4000mm. The whole line is fully automatic, the product quality is good, and the performance reaches the first-rate in the world.

Detailed Images
Item
Data
Standard panel size
310mm, 320mm, 460mm, 480mm, 520mm, 535mm, etc
Panel length
500-4000mm
Length tolerance
±1.0mm
Panel bearing pressure
Positive pressure≥ 0.15Mpa, negative pressure ≥ 133Kpa, without deformation
Panel material
ST12, SPCC, DC01 cold rolled steel, 1.0-1.2mm
Total power
Approx 315KW
Total line dimension
46.5m X 3.5m
Oil fluits size
Steel thickness 1.0mm
≥ 11mm
Steel thickness 1.2mm
≥ 11mm
Number of oil fluits
Panel 310mm, 320mm
3
Panel 460mm, 480mm
5
Panel 520mm, 535mm
6
Input coil width
Panel 310mm
325mm
Panel 460mm
475mm
Panel 520mm
535mm
