Power Transformer HV High Voltage Foil Winding Machine

FOB Reference Price:Get Latest Price
$40,000.00 - $120,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HV foil winding
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Condition:
New
Foil width:
20-200mm
Insulation width:
25-250mm
Winding width:
20-1400mm
Copper thick:
0.1-2.5mm
Al thickness:
0.2-3.0mm
Expand shaft:
74-78mm
Winding weight:
Maximum:1000KG
Decoiler diameter:
280-330mm
Foil weight:
Maximum:1000KG
Motor power:
18.5KW
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Port
Shanghai
Product Description

The High Voltage Foil Winding Machine is suitable for 1KV and more than 1KV level transformer windings. All the production parameters are set on the Human-Computer Interface and the machine works in fully automatic.


In need of this foil winding machine or any other transformer machine please do not hesitate to sen us an inquiry!

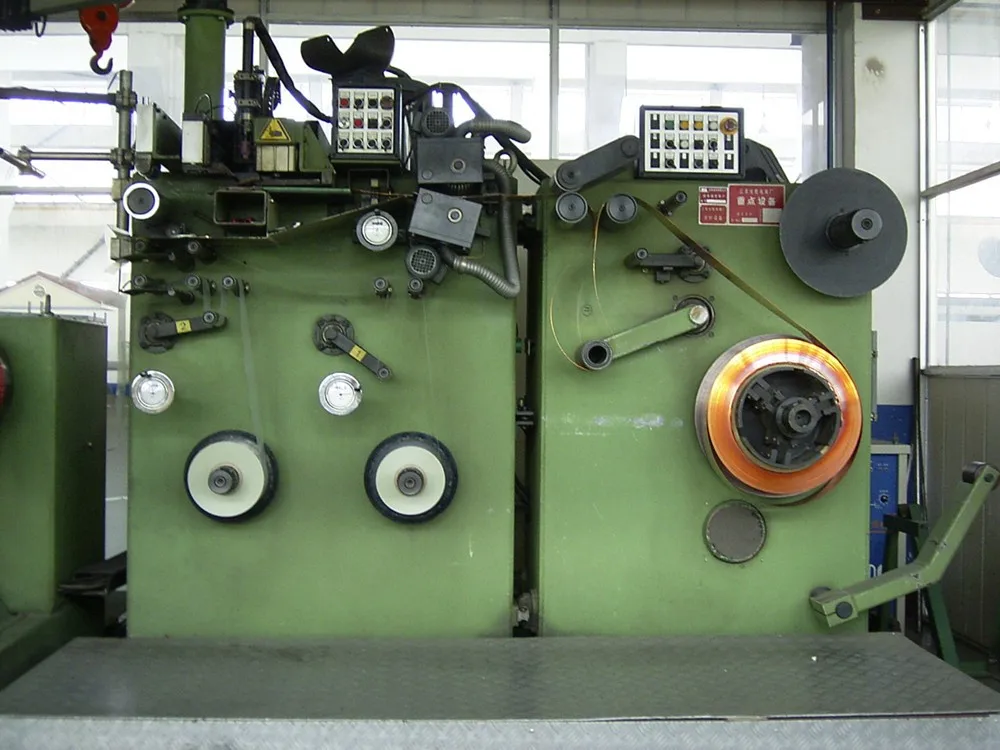

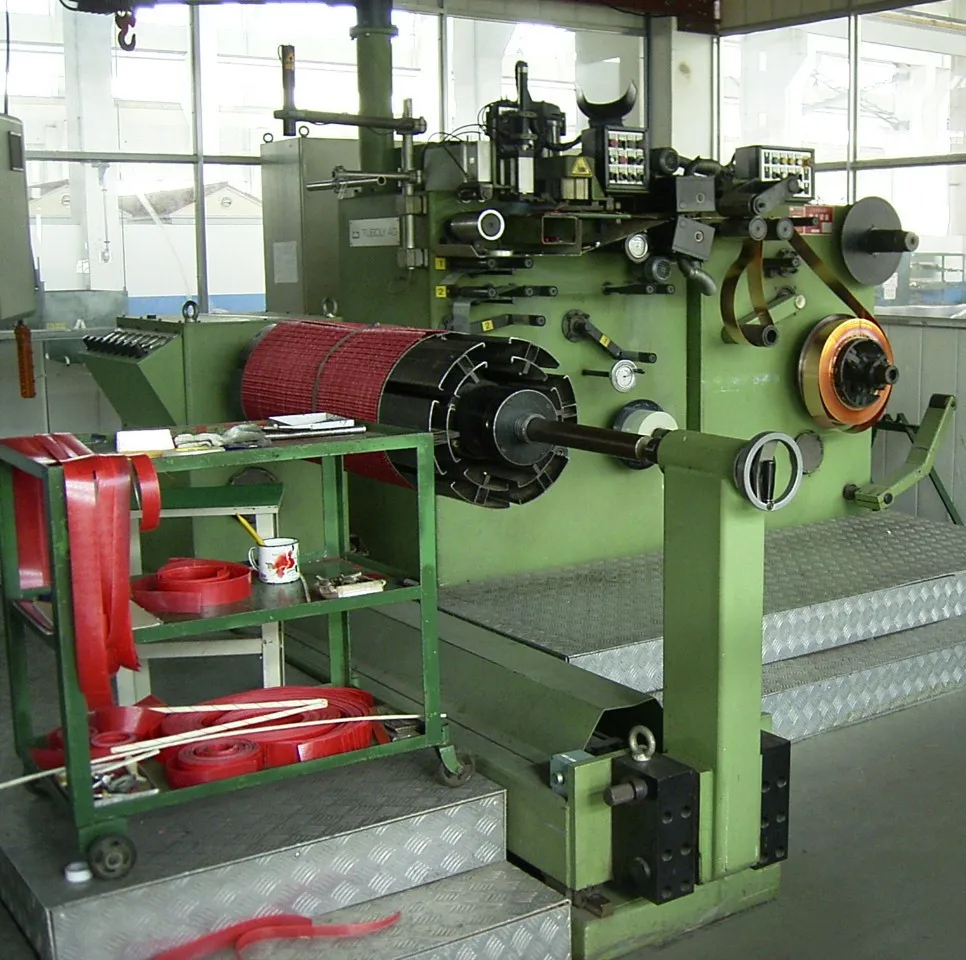

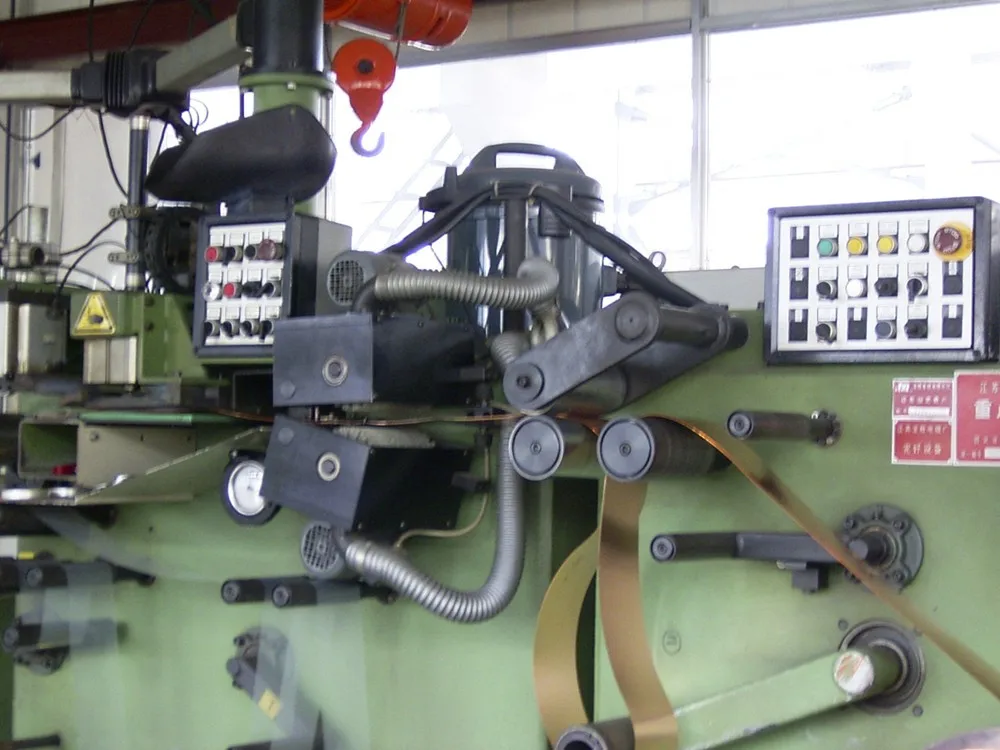

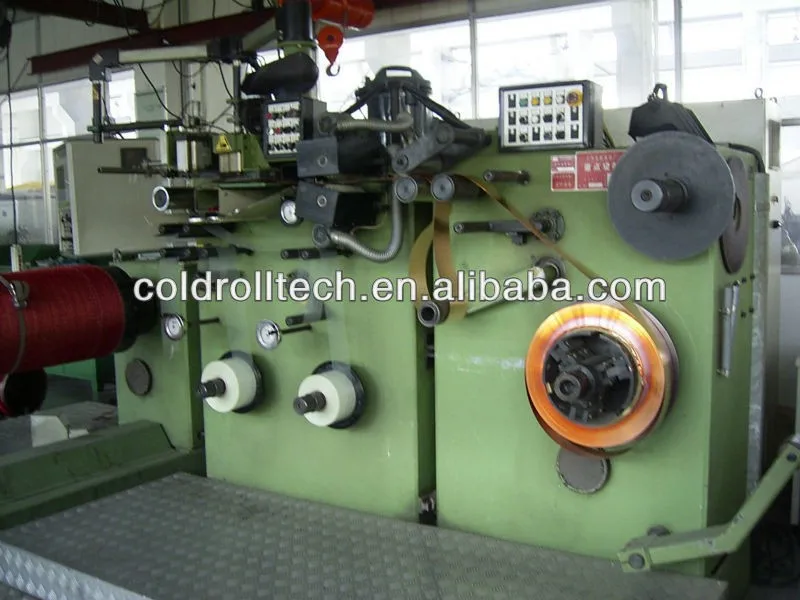

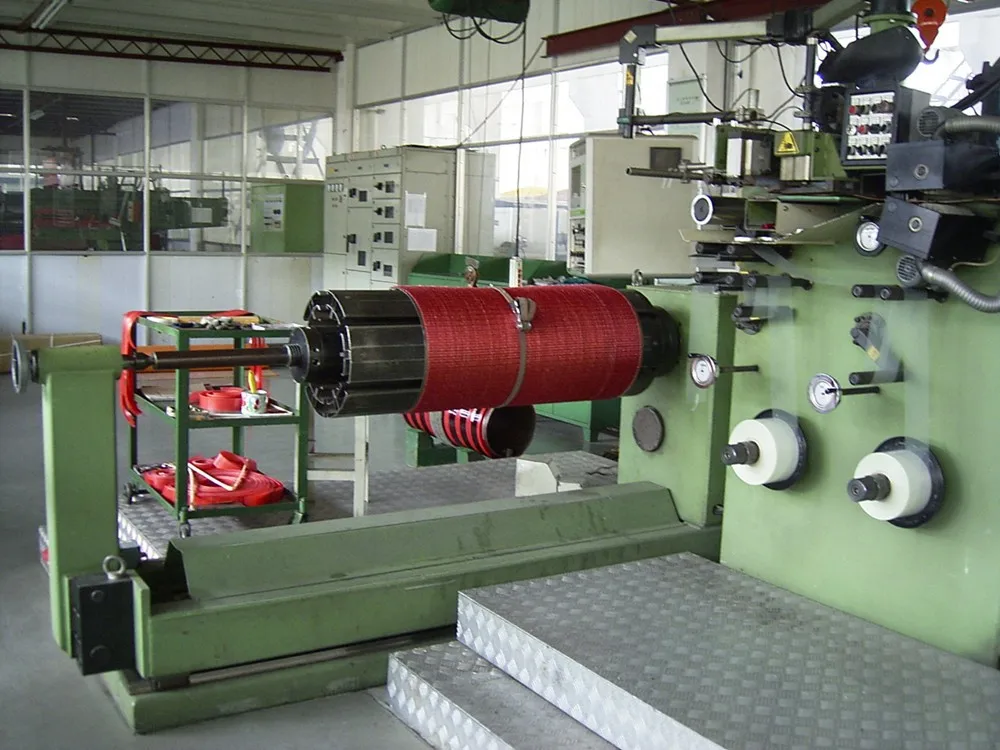

Detailed Images
Foil
Insulation
Winding
Item
Value
Item
Value
Item
Value
Foil width
20-200mm
Insulation width
25-250mm
Winding width
20-1400mm
Copper thickne
0.1-2.5mm
Thickness
0.015-0.250mm
Tension
0-10N/mm2
Al thickness
0.2-3.0mm
Tension
10-250N
Winding diameter
100-1000mm
Tension
50-3000N
Expand shaft
74-78mm
Winding weight
Max:1000KG
Decoiler diameter
280-330mm
Insulation outer diameter
400mm
Torque
Max:1800N.M
Foil outer diameter
Max:1000mm


Winding speed
90r/min
Foil weight
Max:1000KG


Motor power
18.5KW
