Transformer Corrugated Fin Forming Machine/ Corrugated Wall Tank Making Machine

FOB Reference Price:Get Latest Price
$40,000.00 - $100,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Corrugated fin
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Condition:
New
Machine dimension:
5500mm*1600mm
Suitable material thickness:
1~1.5mm
Forming width:
300-1300mm(1600mm is optional)
Fin height:
100-400mm
Fin distance:
45-80mm
Fin gap(space inside fin):
6-8mm
Working speed:
3 fins/min
Main hydraulic station power:
22KW
Oil pump:
65L/min
Cooling:
Cooling water circulation
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy packing for Vertical bending machine
Port
Shanghai
Video Description
Product Description

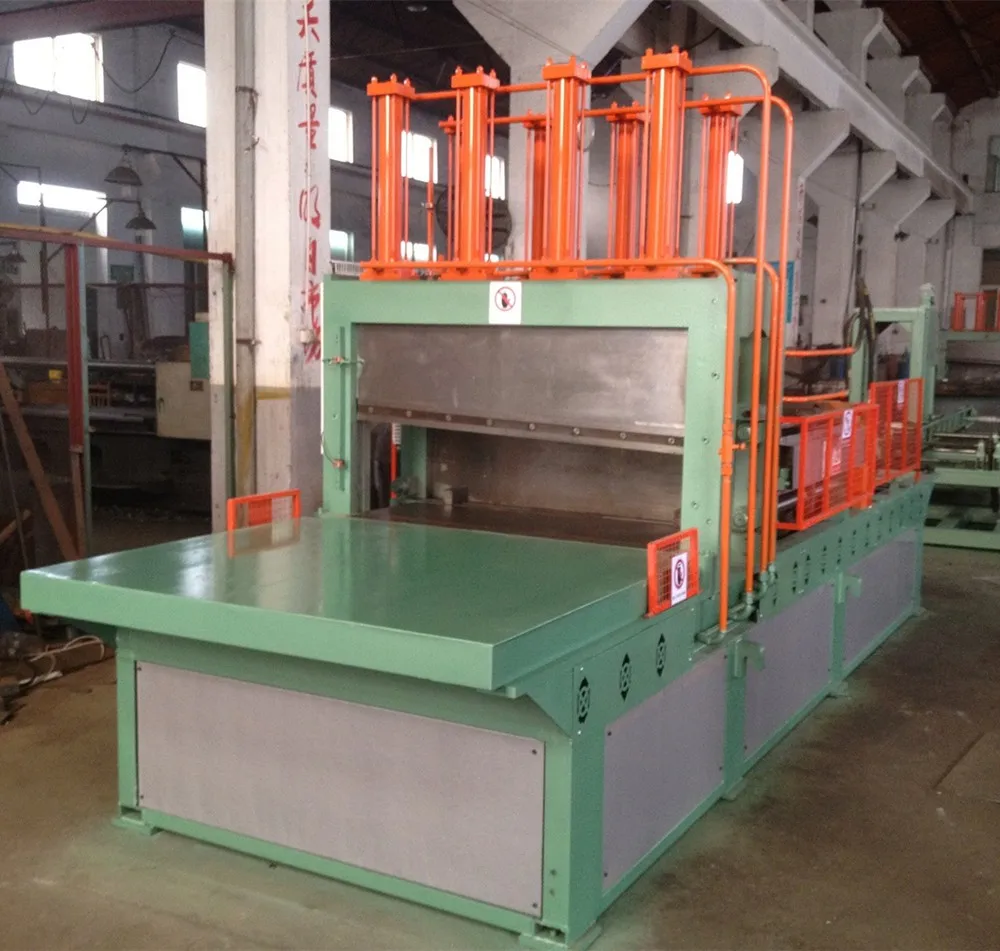

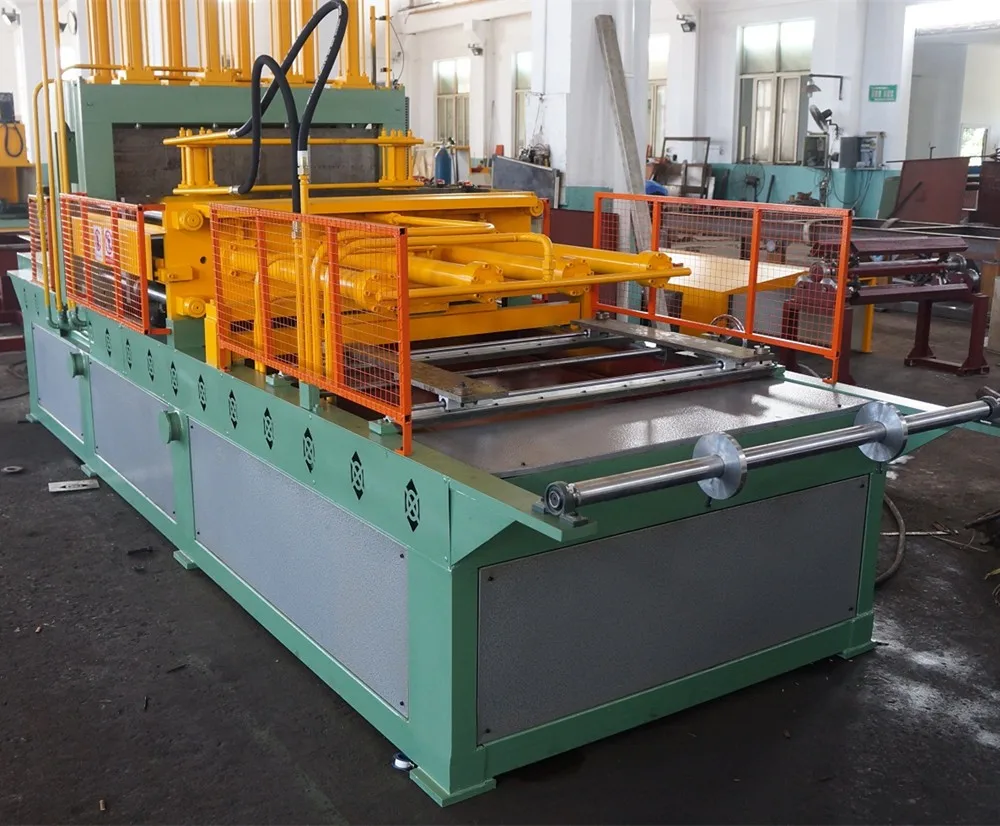

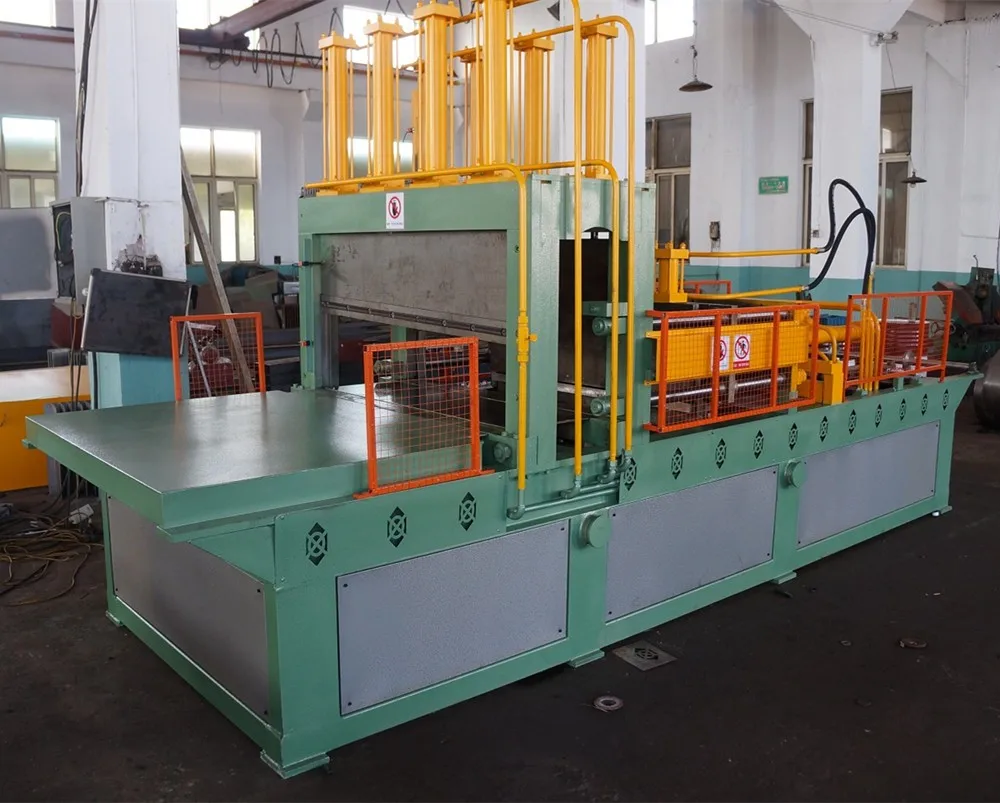

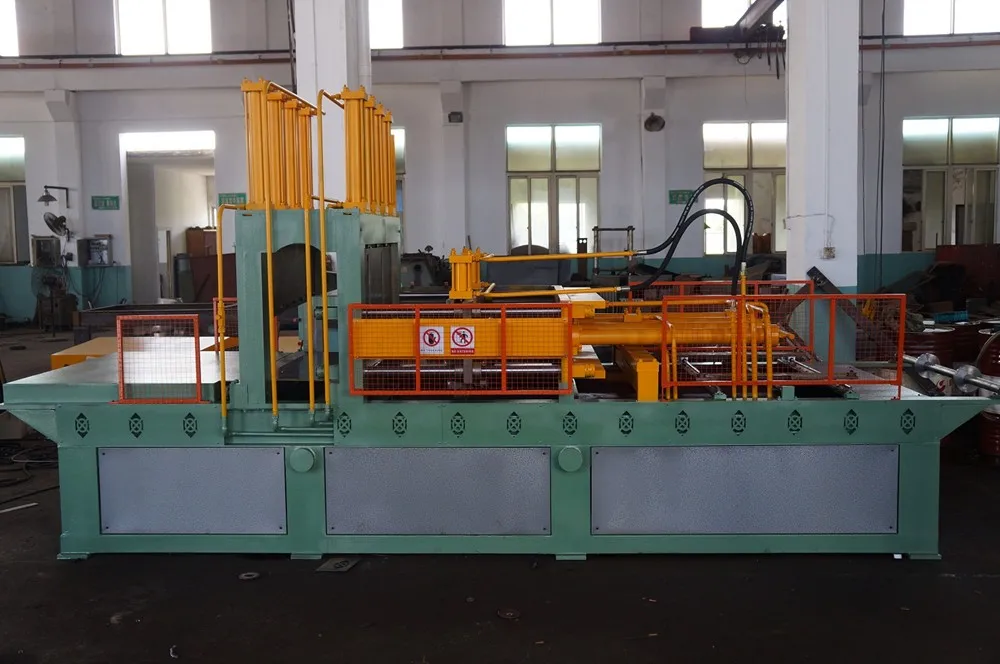

Corrugated Fin Forming Machine


This corrugated fin tank forming machine is used to make the corrugated tank wall for transdormer body. It can produce diffreent sizes of corrugated fins. Steel strip is fed into the machine, after series folding and forwarding, the sheet will be made into the required corrugated fins.


Contact us to get our quotation!

Main Technical Data
Item
Data
Machine dimension
5500mm*1600mm
Suitable material thickness
1~1.5mm
Forming width
300-1300mm(1600mm is optional)
Fin height
100-400mm
Fin distance
45-80mm
Fin gap(space inside fin)
6-8mm
Working speed
3 fins/min
Main hydraulic station power
22KW
Oil pump
65L/min
Cooling
Cooling water circulation
Decoiler
Capacity 5 tons (Hydraulic or Mechanical)
