High Voltage Automatic Coil Winding Machine For Small And Medium Sized Distribution Transformer

FOB Reference Price:Get Latest Price
$8,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GRX-600 GRX-800
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Graphic customization (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Energy & Mining, Manufacturing Plant, Transformer coil winding
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Warranty:
1 Year
CNC or Not:
CNC
Weight (KG):
1.5
Condition:
New
Bearing weight(kg):
≤1000
Axis speed(r/min):
0~570
Main axis center height(mm):
850
Winding axis center distance(mm):
500~1250
Motor power(kW):
4
Rectangle coil diagonal length(mm):
≤800
Working voltage AC (V):
380±10%, 3 phase, 50HZ
Air pressure(bar):
5-6.5
Using range:
Outer dia.≤600mm,inner dia.≥80mm
Maximum winding number of counting:
99999.9
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Detailed Images

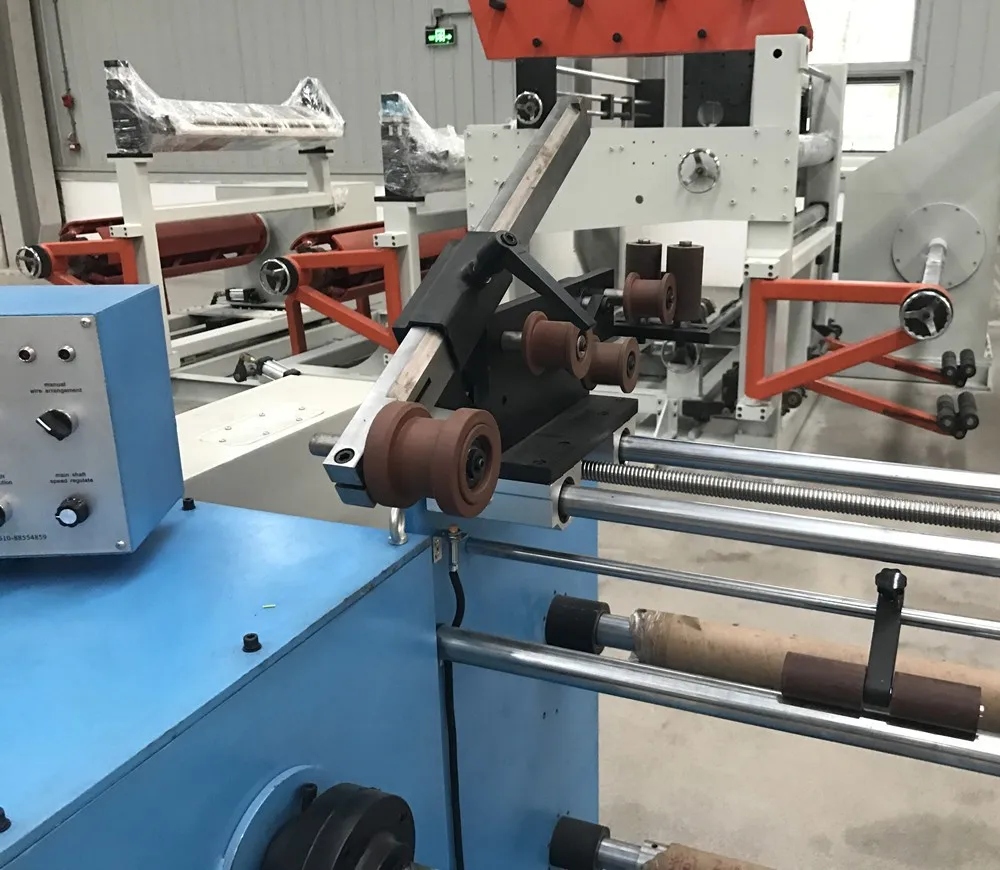

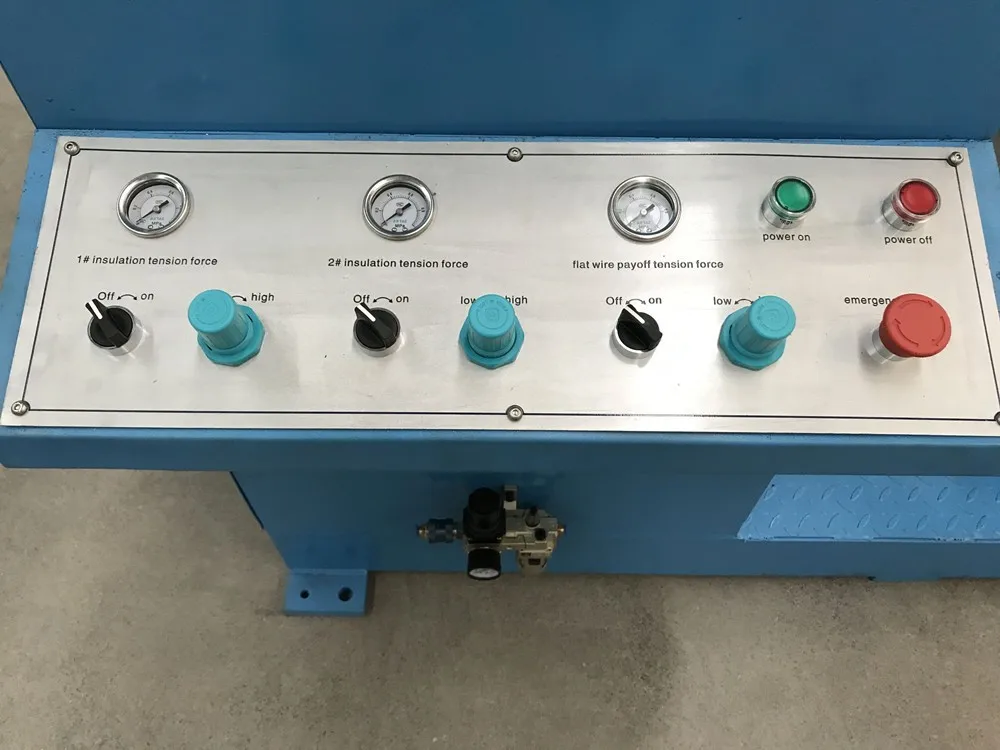

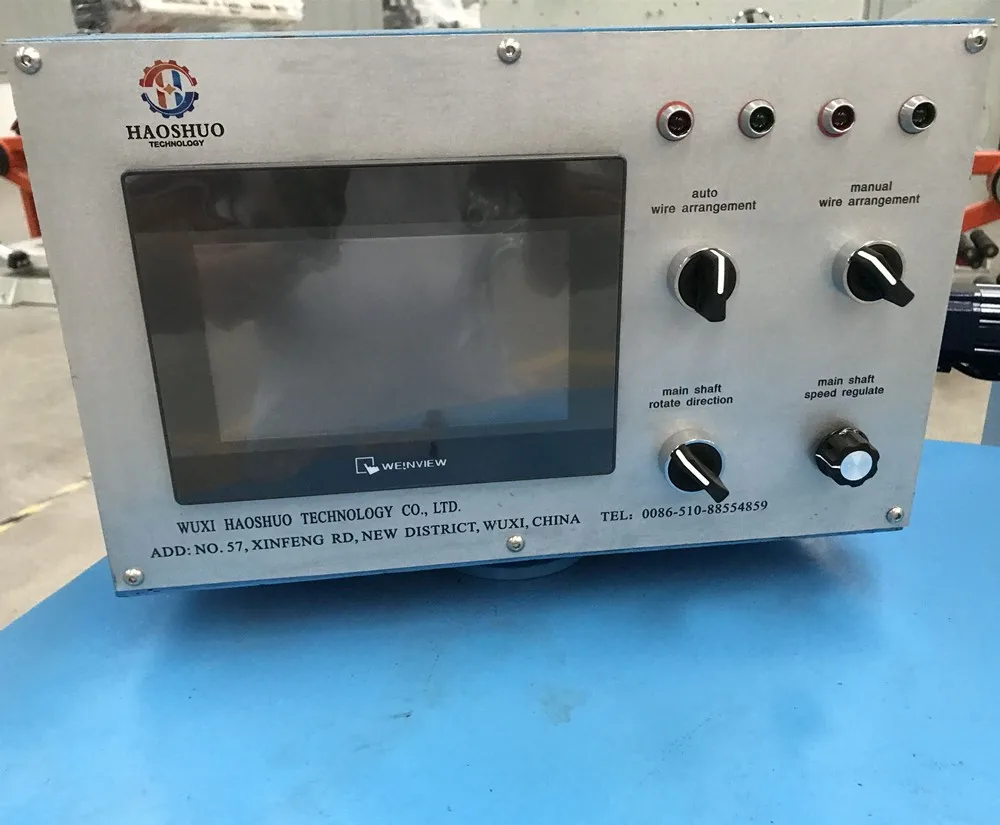

Automatic coil winding machine is suitable for alll types of small and medium sized distribution transformer coil windin. It consist of winding main machine, automatic wire arrangement, layer insulation supply device, a two-axis tension wire decoiler, pneumatic system, PLC and servo control system, etc. This machine is able to do coil winding axial tightness and firmness, especially suitable rectangular coil winding.

Product Description
Item
Data
Suitable coil outer diameter
≤600 mm
Suitable coil inner diameter
≥80 mm
Axis length
≤800 mm
Total weight
≤500 kg
Wire spec
width 0.4mm-10mm, round or flat
Work torque
600mm
Winding speed
0-200r/min
Counter max set
9999.9
Auto wire arrangement
wire distance min 0.01mm
Total weight
1600kg
Outer dimension
2500mm*1300mm*1200mm
