Transformer Corrugated Fin Wall Tank Embossment Spot Welding Machine

FOB Reference Price:Get Latest Price
$30,000.00 - $100,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Spot welder
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Condition:
New
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Welding table forwarding:
servo motor 1.5KW
Welding head up and down moving:
servo motor 0.75KW, 2 sets
Welding head linear moving:
servo motor 0.75KW, 2 sets
Capacity of the welder:
50KVA, 2 sets
Min. working piece size:
200*300*100mm
Max. working piece size:
2000*1300*400mm
Welding spot size:
6mm
Machine dimension:
3300*2700*2400mm
Warranty:
1 Year
Type:
Fully Automatic
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy packing for spot welding machine
Port
Shanghai
Video Description
Product Description

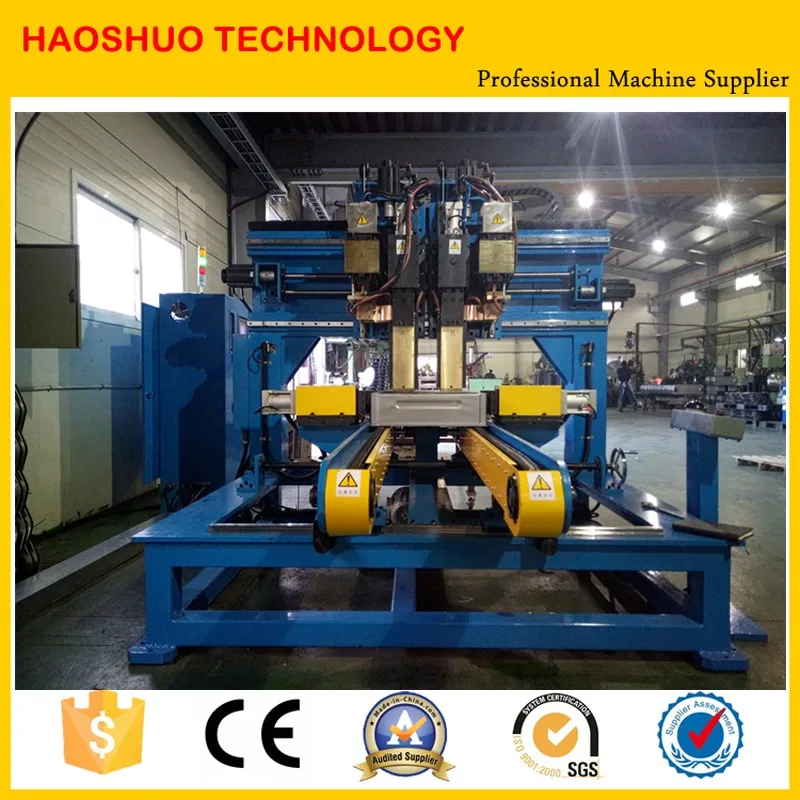

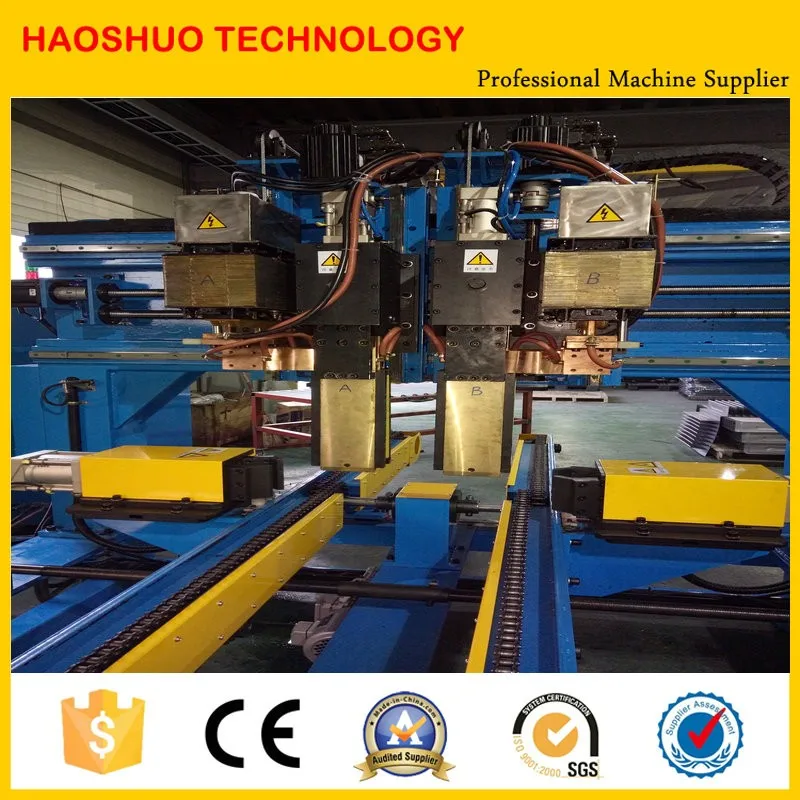

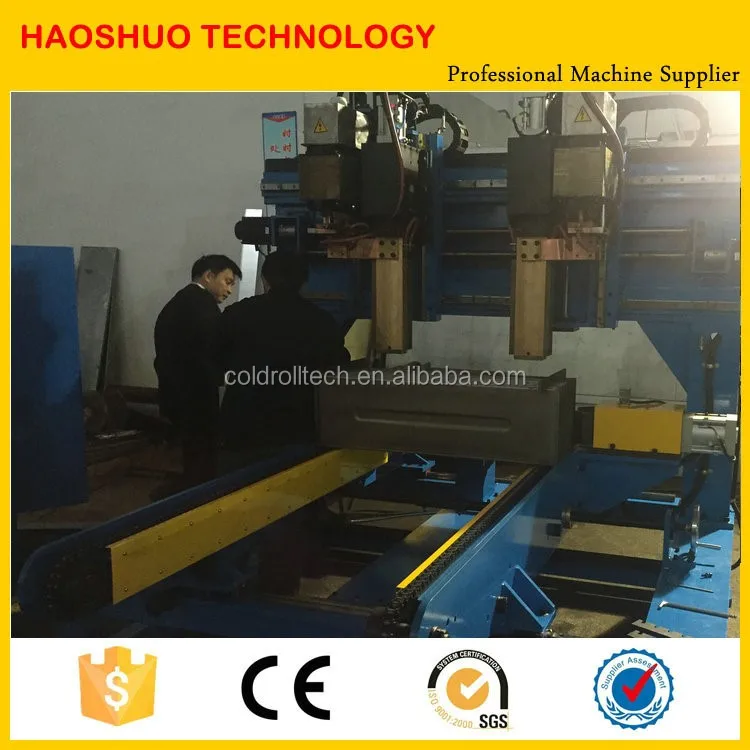

This machine is special designed for spot welding on the reinforcing ribs of the corrugated fins. It is an automatic welding machine controlled by PLC and HMI system. The machine mainly consists of chain conveyer, gantry beam, 2 sets of welding torch, 4 sets of servo transmission system, welding system, and controlling system, etc.

Detailed Images
Item
Data
Welding table forwarding
servo motor 1.5KW
Welding head up and down moving
servo motor 0.75KW, 2 sets
Welding head linear moving
servo motor 0.75KW, 2 sets
Capacity of the welder
50KVA, 2 sets
Min. working piece size (L x W x H)
200×300×100mm
Max. working piece size (L x W x H)
2000×1300×400mm
Welding spot size
Ø6mm
Machine dimension (L x W x H)
3300×2700×2400mm
