Traditional LT Low Voltage Transformer Coil Winding Machine

FOB Reference Price:Get Latest Price
$1,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LGR-1W
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Condition:
New
Capacity(t):
1
Speed(rpm):
0-100
Center height (mm):
800
Center distance(mm):
600-1400
Main power (KW):
2.2
Chuck diameter(mm):
400
Chuck segment:
4
Chuck T-slot:
M12
Machine base L x H x W(M):
3x1.2x0.5
Gross weight(Kg):
800/900
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Product Description

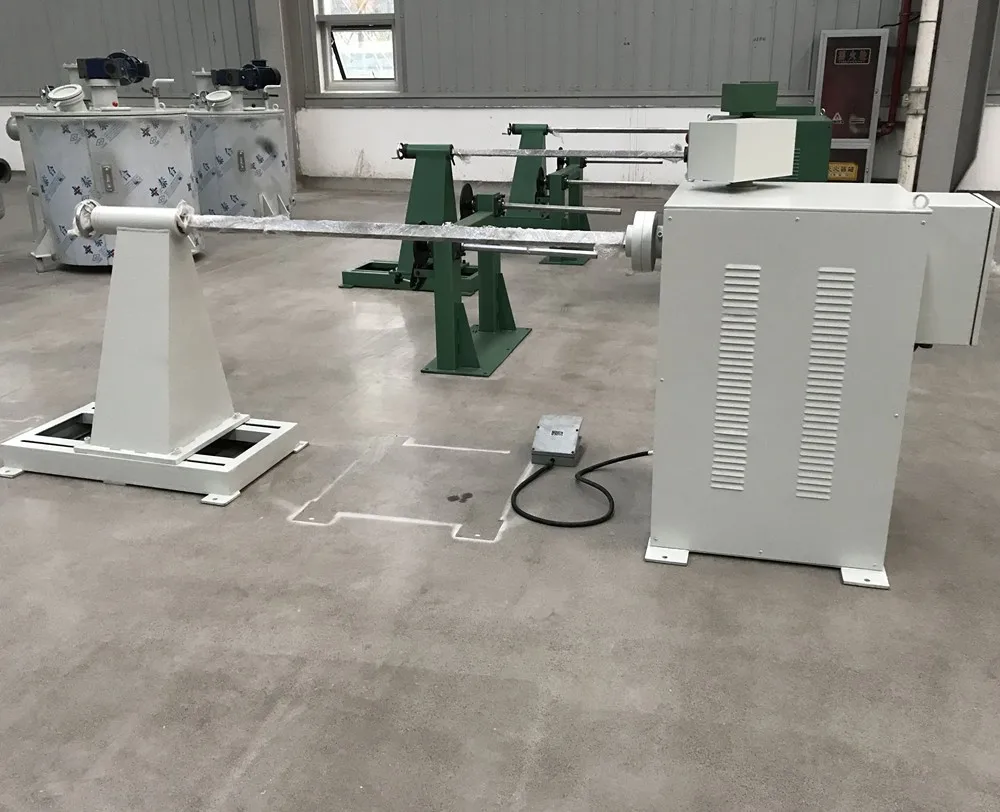

The coil winding machine mainly consists of machine base, gear box, tail support, winding shaft, and control switch,etc. The machine is suitable for coil winding of power transformers.

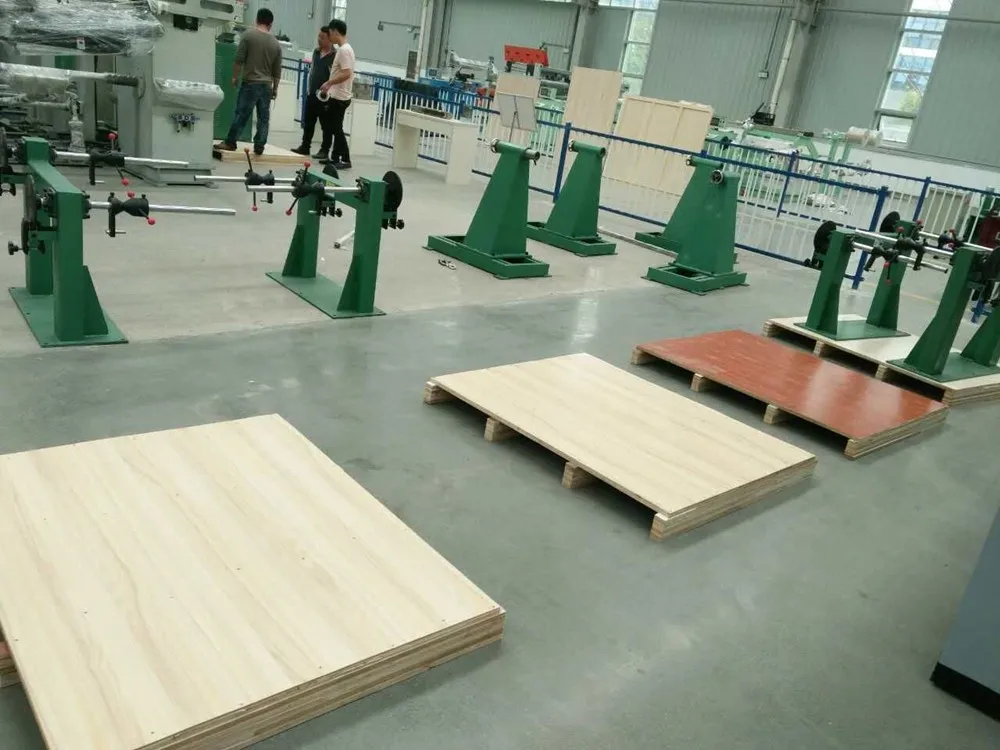

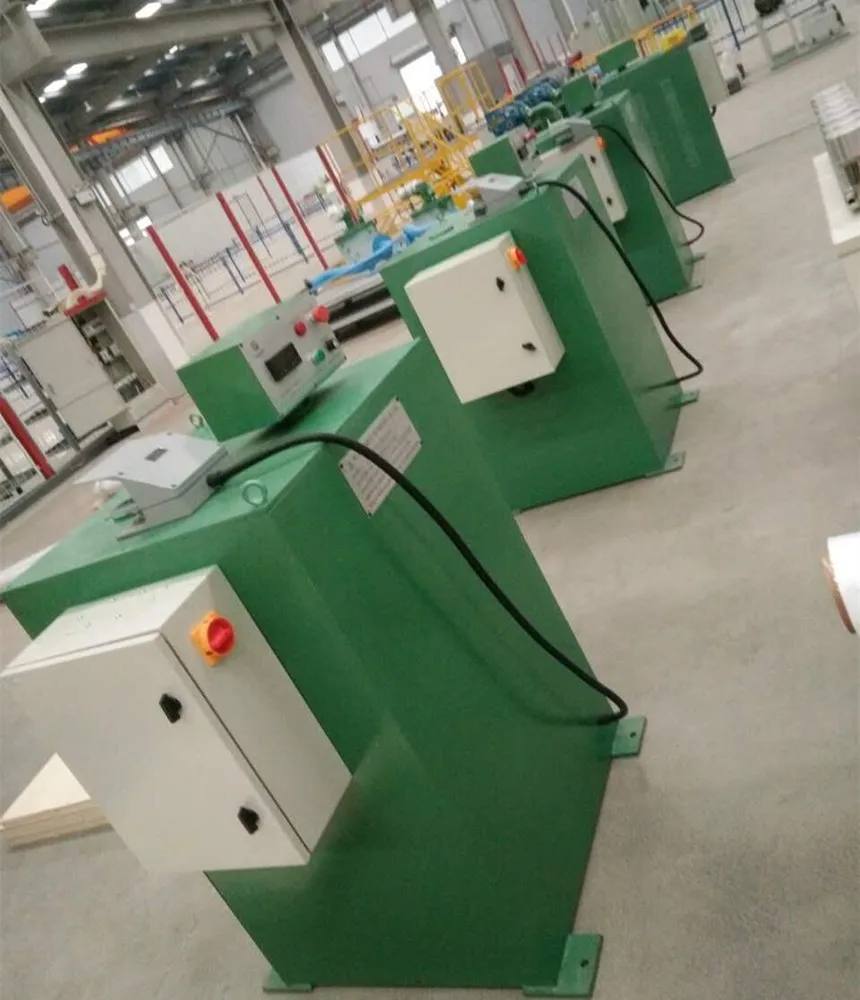

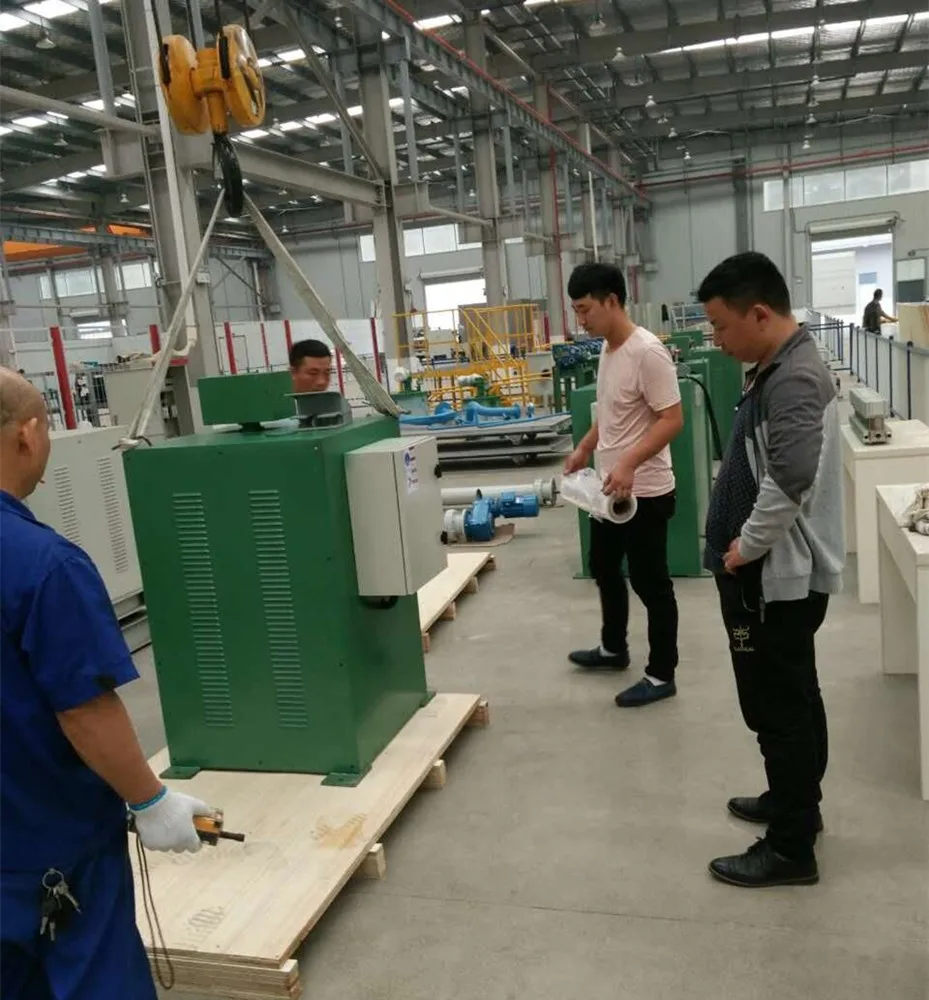

Detailed Images
Model
LGR-1W
GDY-3W
GDY-5W
GDY-10W
Capacity(t)
1
3
5
10
Speed(rpm)
0-100
0-60
0-30
0-15
Center height (mm)
800
1100
1400
1400
Center distance(mm)
600-1400
800-2000
1500-2800
2000-3500
Main power (KW)
2.2
5.5
7.5
15
Chuck diameter(mm)
400
600
800
1000
Chuck segment
4
4
4
4
Chuck T-slot
M12
M20
M20
M20
Machine base
L x H x W(M)
3x1.2x0.5
3.8x1.7x0.7
4.9x2x0.86
5x2.1x0.86
Gross weight(Kg)
800/900
1500/1600
2000/3000
5000/5500
Tail stock moving(mm)
0-150
0-150
0-150
0-150
Winding shaft (mm)
40*40*1400
70*70*2000
70*70*2800
70*70*3500
Safety device
N/A
N/A
Infrared ray induction
Winding shaft supporter
Infrared ray induction
Winding shaft supporter
