Maximum Load 35T Big Capacity Electric Horizontal Coil Winding Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WRJ-35
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Haoshuo
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Condition:
New
Maximum load/t:
35
Maximum coil diameter/mm:
3000
Chuck diameter/mm:
2000
Distance between chuck and tail/mm:
4600
Height of main spindle/mm:
1800
Stroke of tail stock/mm:
2600
Turning range of compacting device:
35°
Stroke of compacting head:
1040
Speed of main spindle/ r/min:
0-7
Maximum Torque/Nm:
40000
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Product Description

Horizontal coil winding machine is used for coil winding of big capacity transformers and reactors from 5 tons to 35 tons. The machine can be equipped with vertical and horizontal compacting devices and so the winding is more compact and even, and thus assures the quality of winding coils.

Equipped with advanced electronic counter which can count both positive and reverse turns, and also has power-off memorizing function.

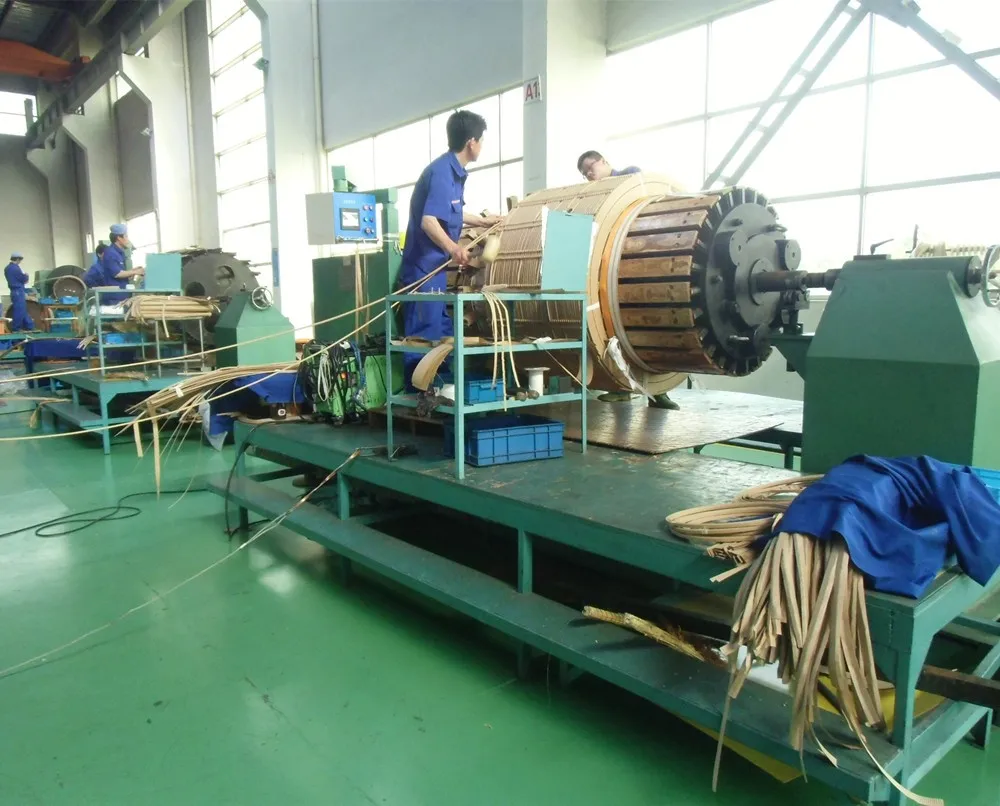

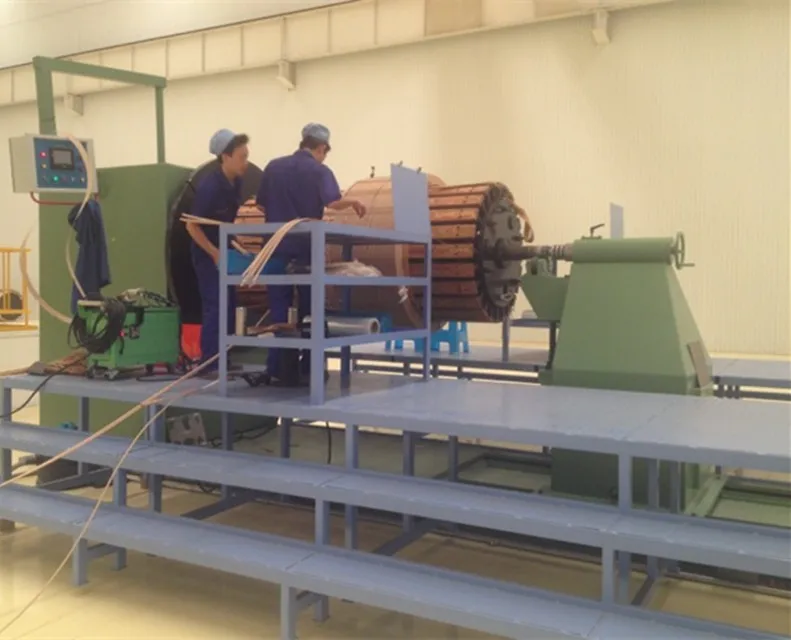

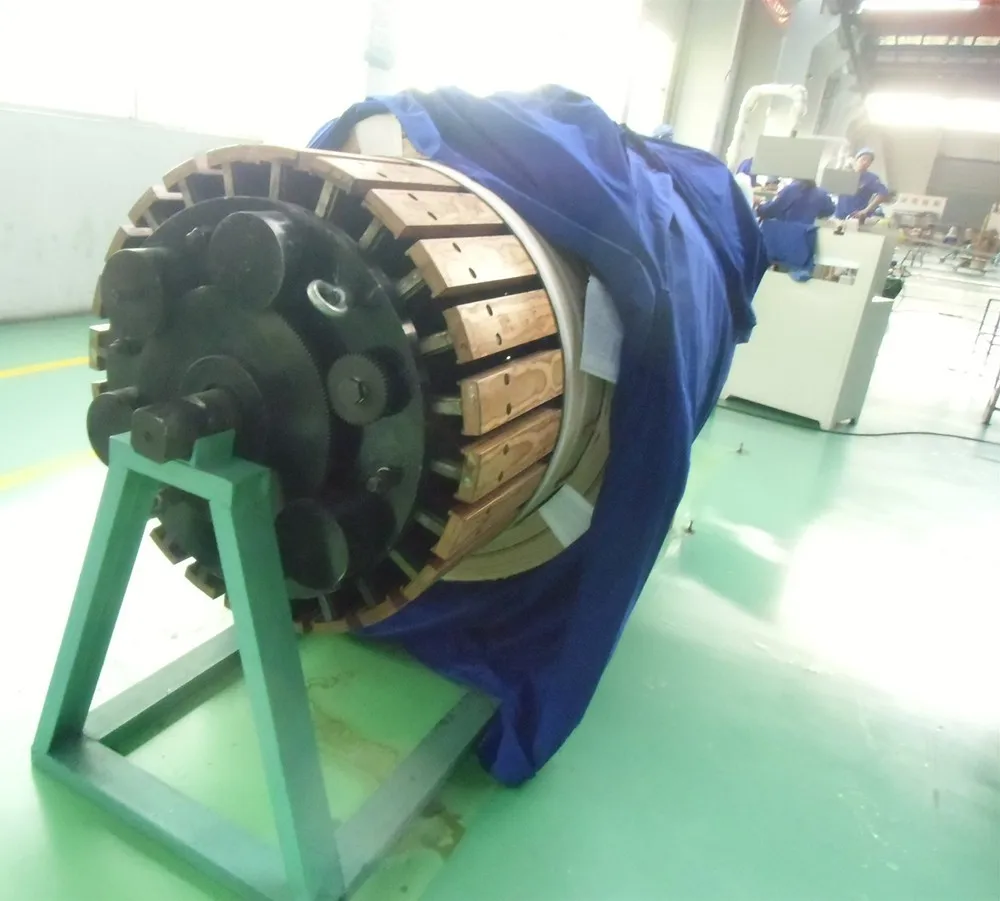

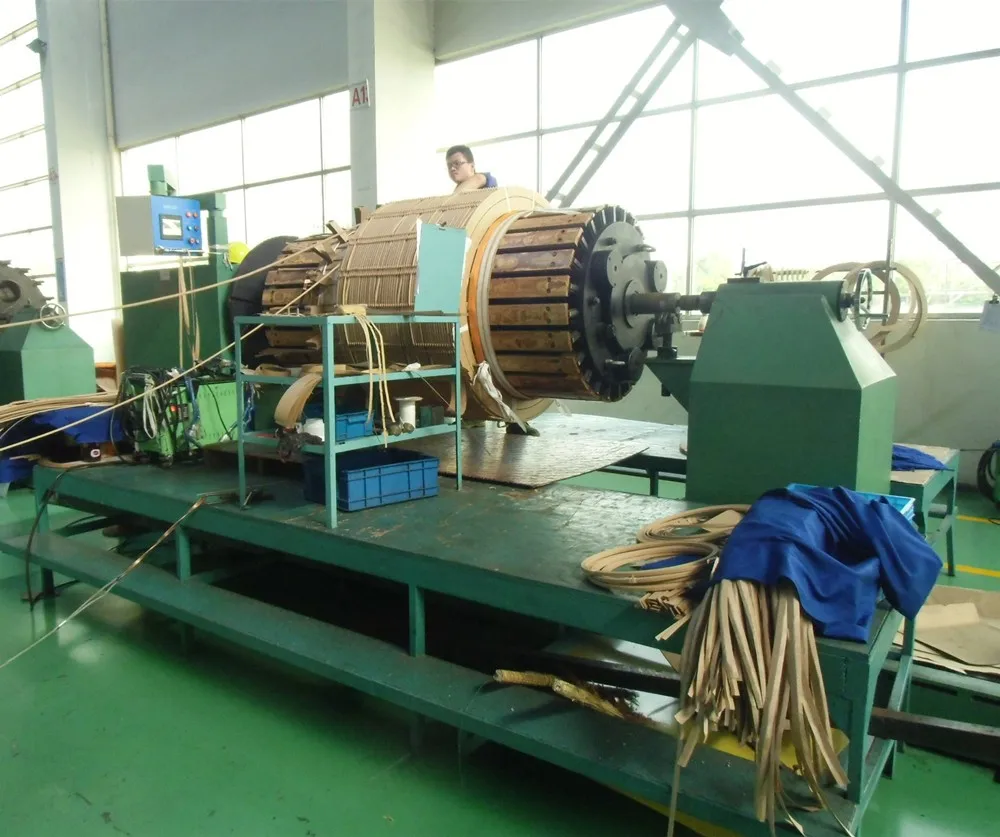

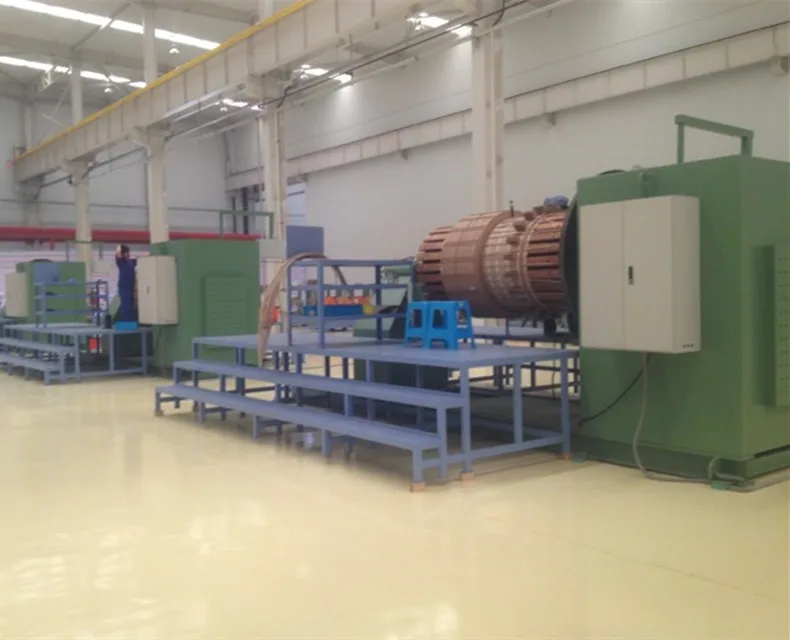

Detailed Images
Item
WRJ-5
WRJ-10
WRJ-15
WRJ-20
WRJ-25
WRJ-35
Max load/t
5
10
15
20
25
35
Max coil diameter/mm
1500
1800
2000
2800
2800
3000
Chuck diameter/mm
750
1000
1400
1800
1800
2000
Distance between chuck and tail/mm
3000
3000
3500
4600
4600
4600
Height of main spindle/mm
1200
1400
1600
1800
1800
1800
Stroke of tail stock/mm
2000
2000
2000
2600
2600
2600
Turning range of compacting device
35°
Stroke of compacting head
500
750
750
750
1040
1040
Speed of main spindle/ r/min
0-10
0-10
0-10
0-10
0-10
0-7
Max. Vertical compacting force/ N
1200
1600
1600
1600
1600
1600
Max. Horizontal compacting force/N
2500
3000
3000
3000
3000
3000
Max. Torque/Nm
8000
15000
20000
25000
30000
40000
