Big Capacity 30T Automatic Large Vertical Coil Winding Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LRJ-30
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Condition:
New
Maximum capacity/t:
30
Chuck diameter/mm:
2800
Maximum turning diameter/mm:
3500
Chuck elevating stroke/mm:
3500
Maximum torque/Nm:
23000
Chuck rotating speed/ rpm:
0-10
Chuck elevating speed/mpm:
0.5
Covering plate stretching speed/mpm:
2.5
Covering plate stretching range/mm:
1800-3600
Dimension/mm:
6856x6356x5020
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai

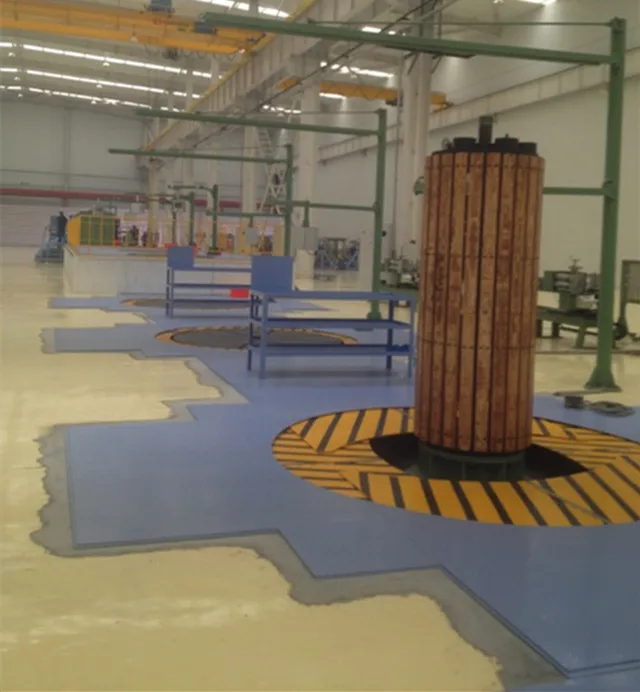

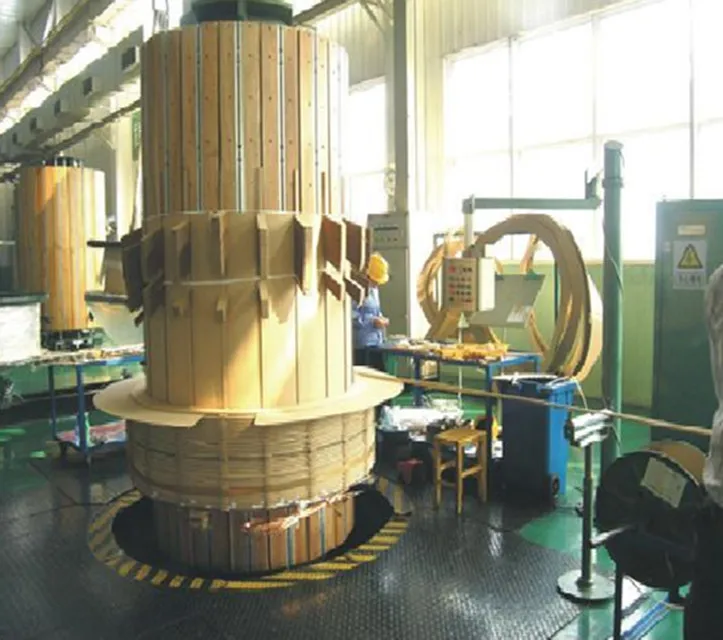

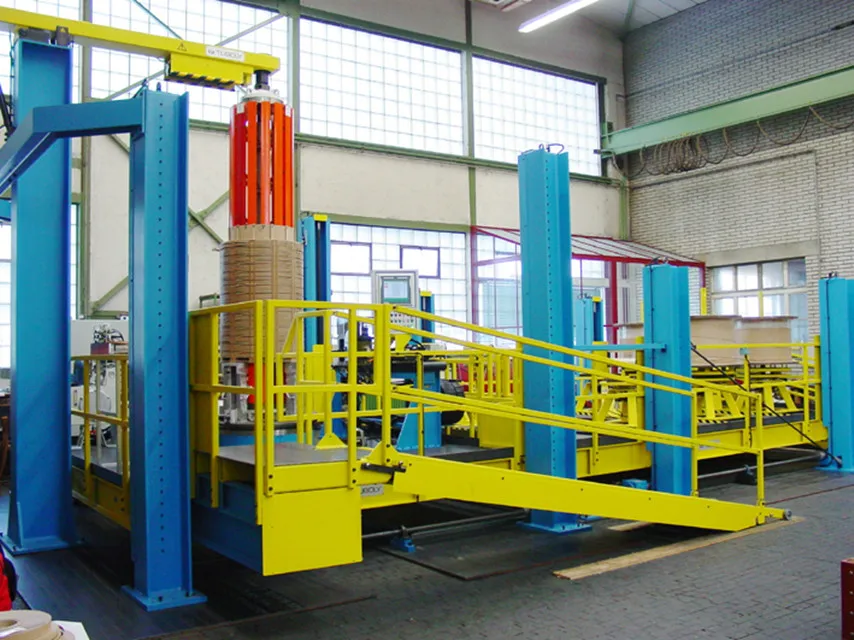

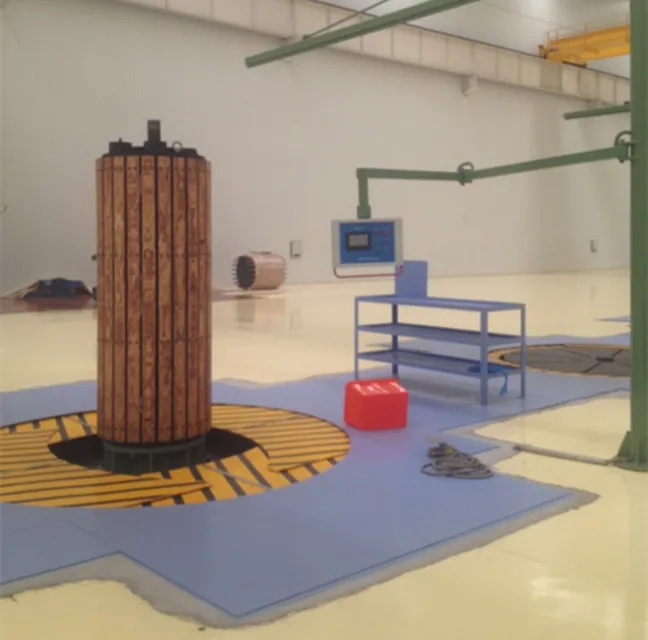

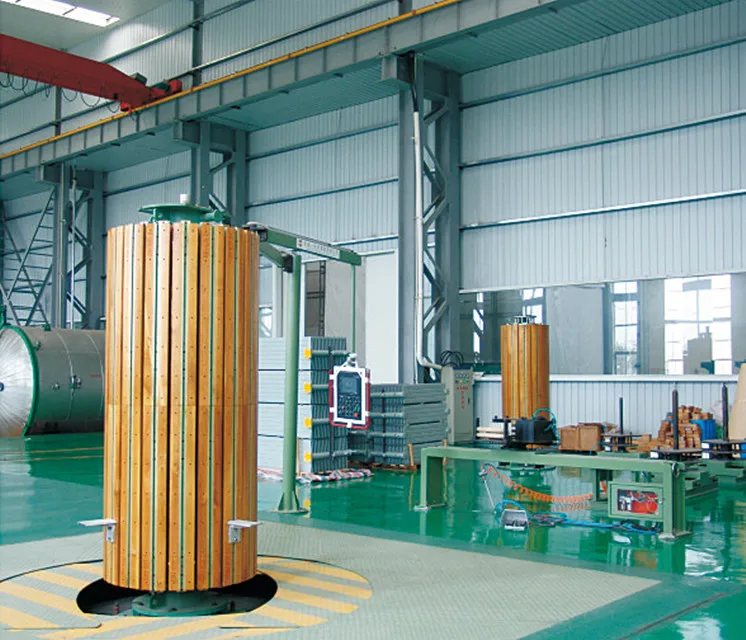

Vertical coil winding machine is winding coils for high voltage and super high voltage transformers. The machine has pit type and ground type, which is chosen based on workshop height. The chuck can lift according to the height of coil and keep the working height. The machine adopts inverter control, it has stable start-up, low noise and easy operate etc advantages. The machine is equipped with electronic counter which can reduce turns when reversing. The machine is able to stop at pre-set turns automatically.


Item
LRJ-10
LRJ-20
LRJ-25
LRJ-30
Max capacity/t
10
20
25
30
Chuck diameter/mm
φ1500
φ2900
φ2200
φ2800
Max turning diameter/mm
φ2200
φ3000
φ3400
φ3500
Chuck elevating stroke/mm
2200
3000
3000
3500
Max torque/Nm
9000
15000
16500
23000
Chuck rotating speed/ rpm
0-10
0-10
0-10
0-10
Chuck elevating speed/mpm
0.5
0.5
0.5
0.5
Covering plate stretching speed/mpm
2.5
2.5
2.5
2.5
Covering plate stretching range/mm
Φ680-φ2232
Φ1040-φ3040
Φ1800-φ3600
Φ1800-3600
Dimension/mm
5086x4586x4263
6500x6000x5020
6856x6356x5020
6856x6356x5020
