Oil Immersed Transformer Vacuum Oil Filling Equipment

FOB Reference Price:Get Latest Price
$20,000.00 - $100,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZYD-300
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Haoshuo
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Usage:
Transformer Oil, Transformer Oil
Dimension(L*W*H):
2250*1800*1750mm
Flow:
55-200 L/Min, 12,000LPH
Voltage:
380V
Weight:
1100KG
transformer oil filling machine:
transformer oil filling machine
Working Pressure:
0.4Mpa
Model Number:
ZYD-300
Power(W):
128KW
Certification:
CE ISO
Condition:
New
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Port
Shanghai
A LETTER FOR YOU

Dear buyer,

We are a professional supplier of transformer machines.


Please feel free to send us your requirements, so that we can make a suitable quotation for you.

Waiting for your inquiry!

Thanks&regards,

Shirley

Whatsapp: 0086 188 0056 1506

shirley at haoshuomachine . com
Wuxi Haoshuo Technology Co., Ltd.

Product Description

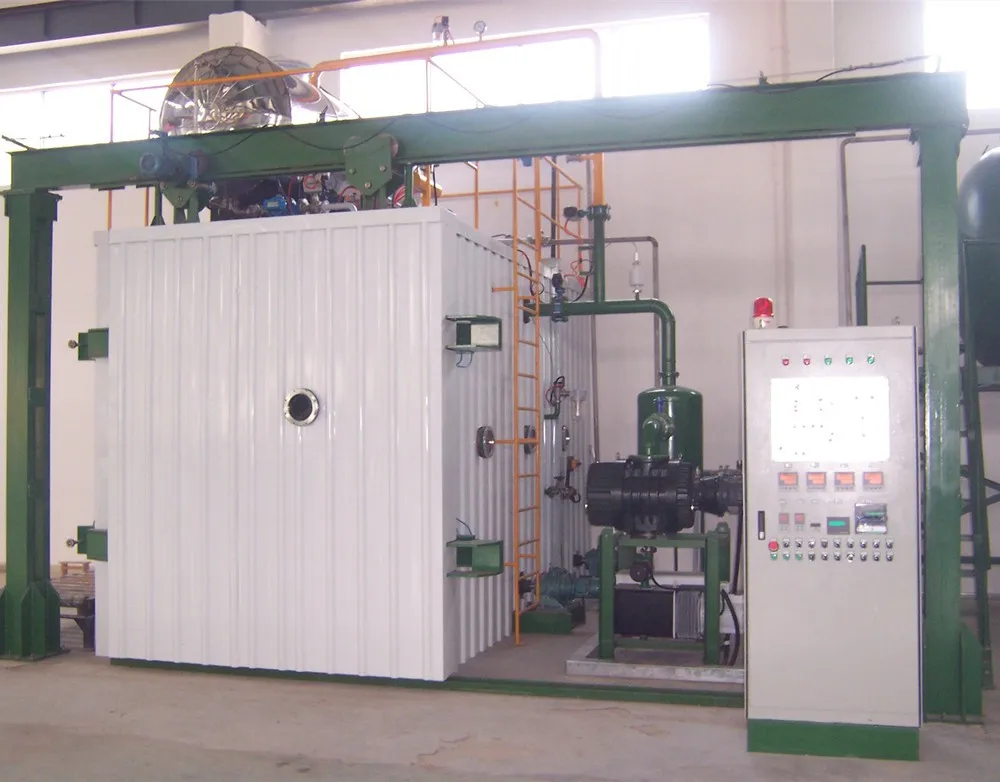

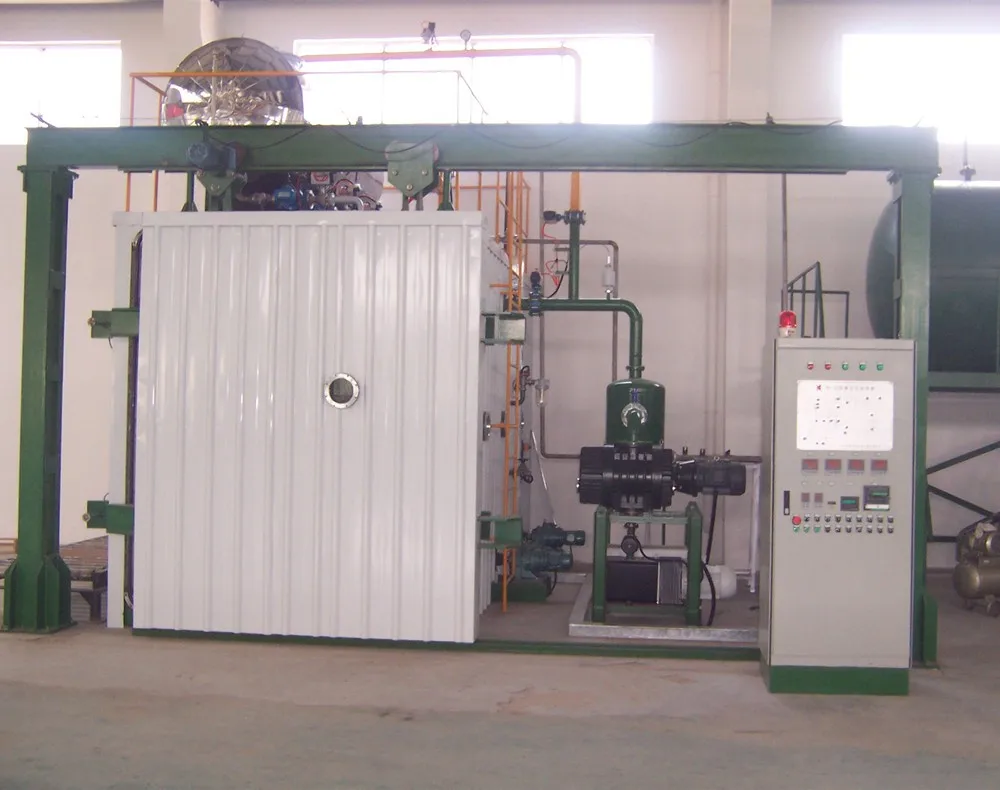

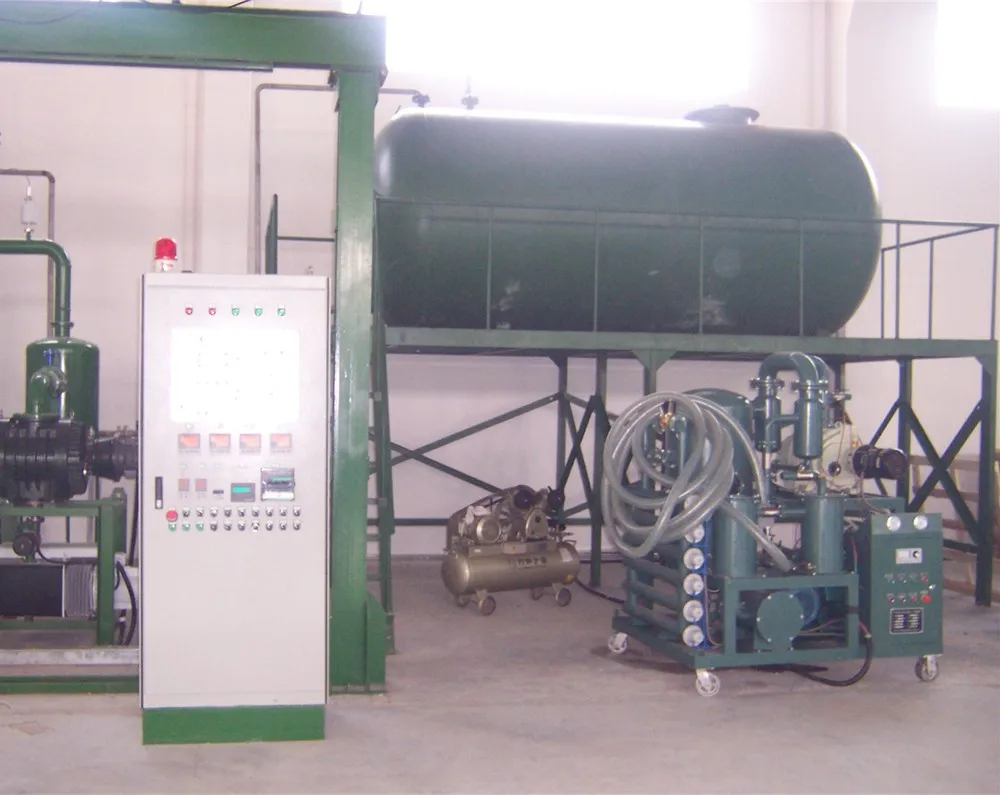

This equipment is used to fill the transformer oil in vacuum condition (drying function can be added according to client's requirement). It is widely used for amorphous transformers, HV oil immersed transformers, HV bushings and capacitors, etc. The plant can automatically running and quantitative oil filling.

Equipment Features

1. Perfect vacuum condition and precision quantitative filling to ensure high quality

2. Maximum adopts three-stage vacuum pump system, limit vacuum up to 1pa(unload), leakage rate <= 0.4mbar/s

3. Oil separator installed between vacuum tank and pump system can condensate and recovery some oil, so can reduce the damage and pollution to the pump system

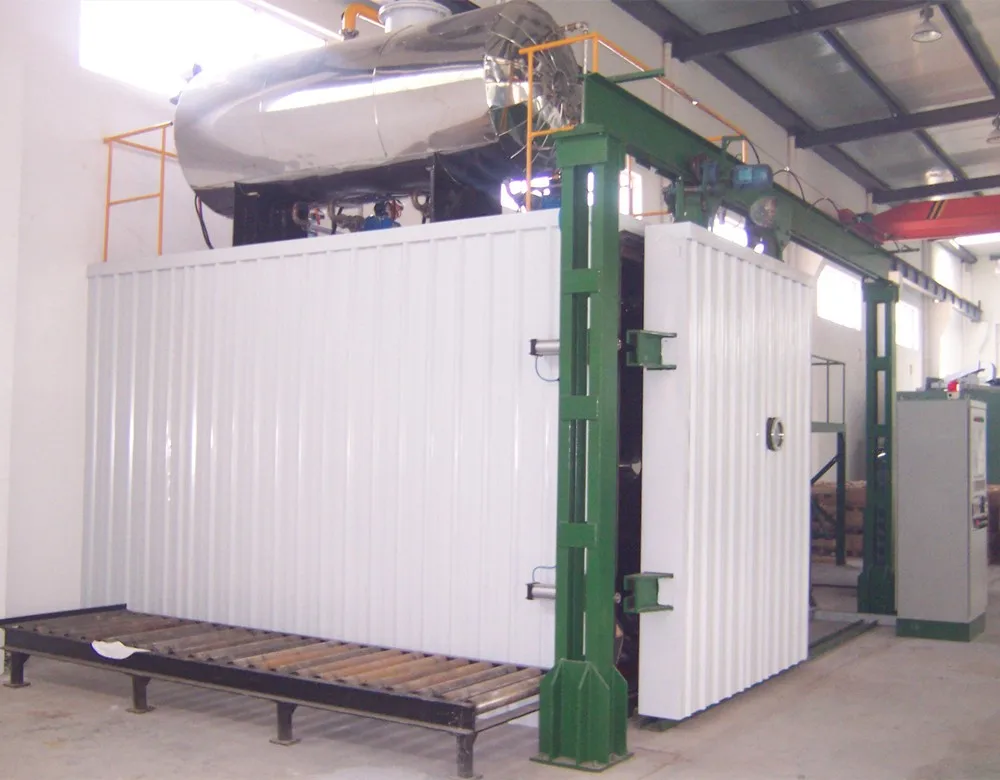

4. Rectangle type tank adopts frame type flange to ensure long working life

5. Vacuum tank which has heating function is heated by electric through conductive oil. Tank door is heated by electric heating plate. Temperature raising is uniform and reliable, no local over heating

6. Heat exchanger is equipped if the vacuum tank has heating function, so the vacuum tank temperature can be reduced below 70C to reduce moisture regain during discharging

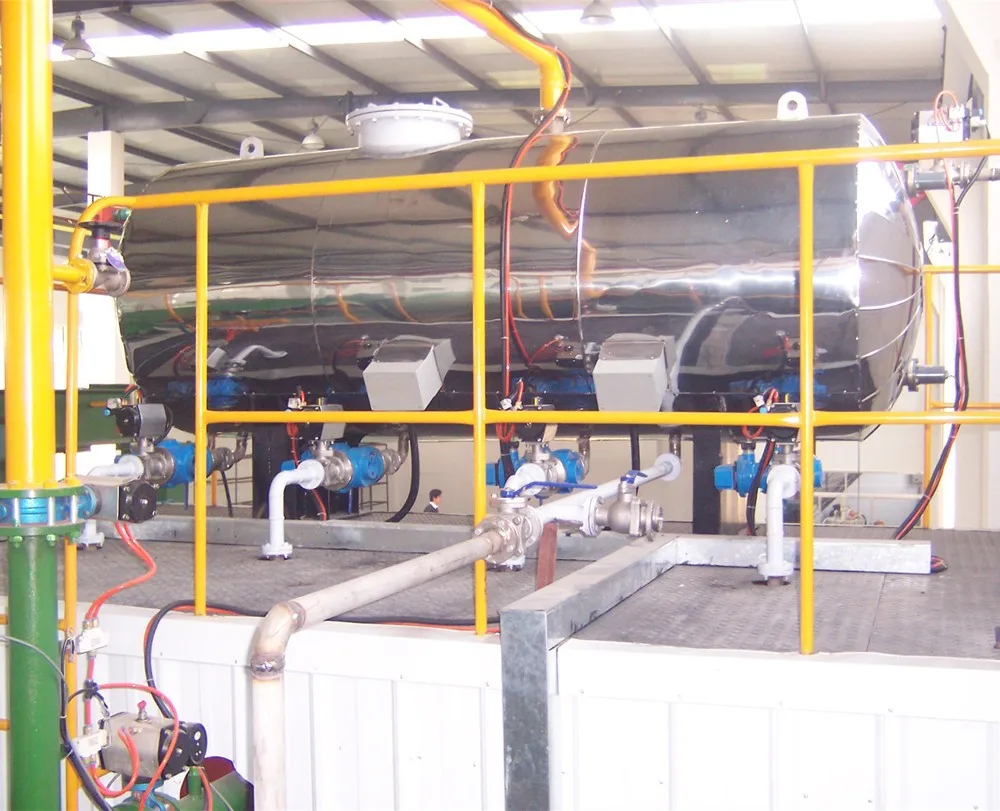

7. All oil filling pipelines and accessories are stainless steel. Flow meter equipped on main pipeline and each filling pipeline, the oil filling is adjustable and automatic control

8. PLC system and touch screen operating, fully automatic control on the whole process. All the parameters can be indicated, record and printed, impeccable alarm system.
