Transformer Low Voltage Aluminium / Copper Foil Winding Machine

FOB Reference Price:Get Latest Price
$20,000.00 - $80,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LV Foil
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Condition:
New
Winding type:
Round / Rectangle
Material thicknes:
Copper: 0.2-2.0mm, Aluminum: 0.3-3.0mm
Cutting type:
Electrical roll cutting
Rectification:
Photoelectric sensor automatic rectifying
Controlling:

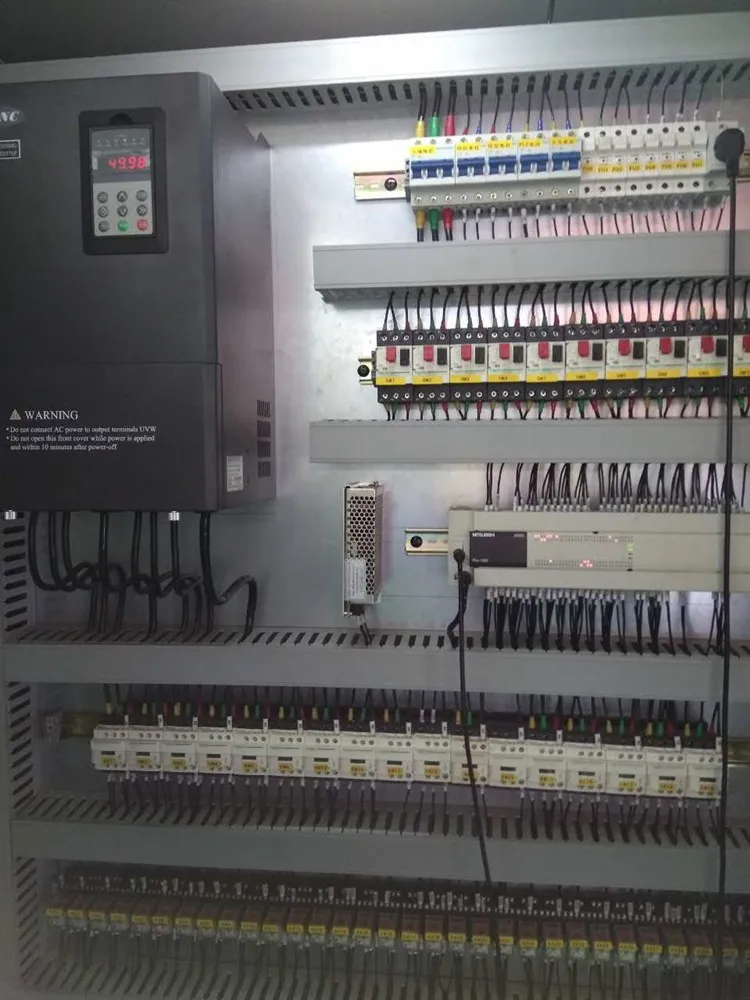

PLC automatic control
Recording:
0--9999.9, Precision 0.1
Foil width:
400-1400mm
Winding diameter:
130-1000
Foil decoiler capacity:
500-2500KG
Rectification precision:
±0.5(mm)
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
This kind of machine should adopt nude packaging and sea shipping by container.
Port
Shanghai
Video Description
Product Description

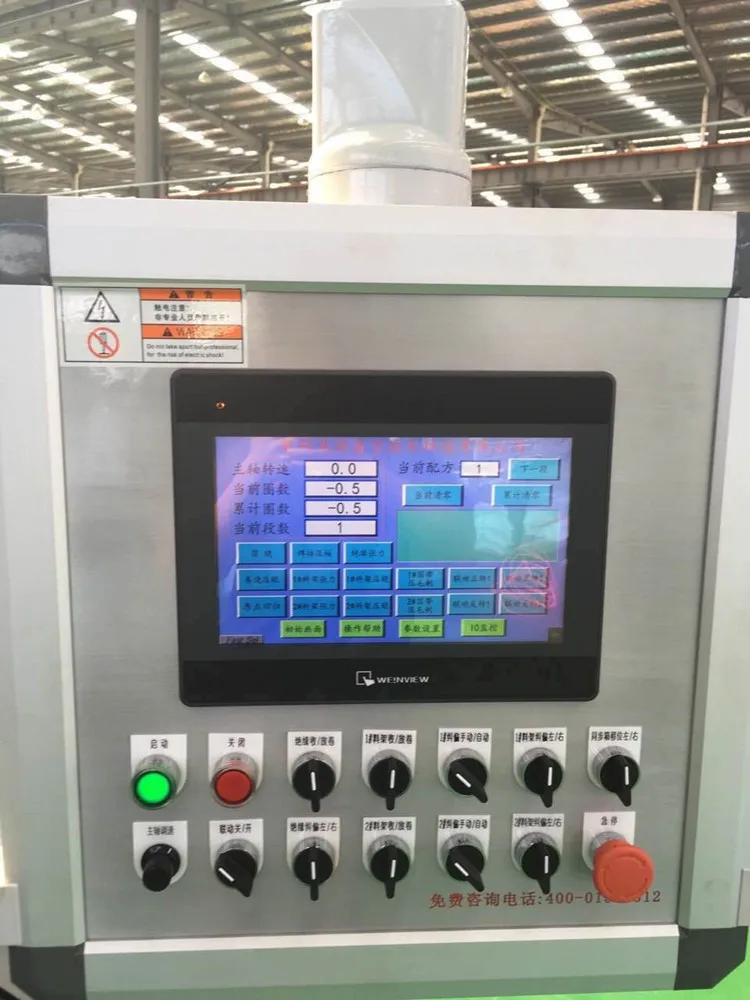

This Low Voltage Foil Winding Machine for transformer is suitable for 1KV and more than 1KV level transformer windings. The machine canlap winding and duplex winding for two layers of copper or aluminum foil. The machine equipped with welding unit and two sets of shears.All the production parameters are set on the Human-Computer Interface and machine works in fully automatic.


If you are looking for a transformer foil winding machine or any other transformer machine, please do not hesitate to send us an inquiry!

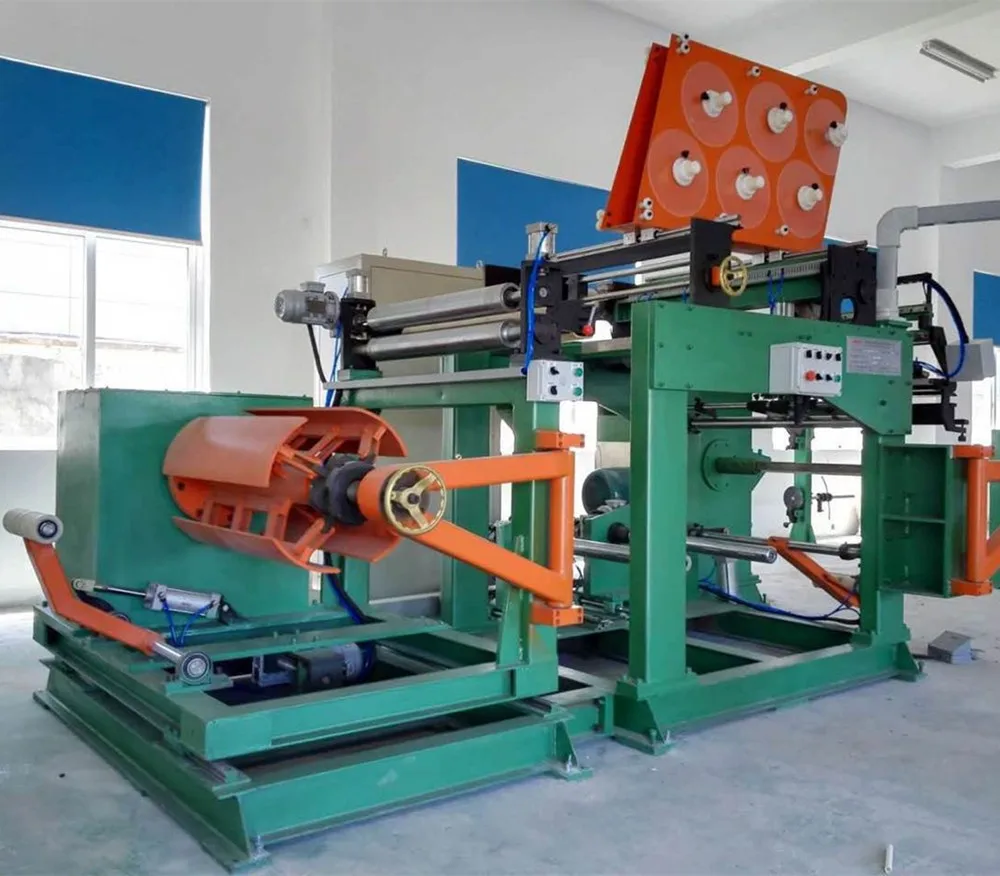

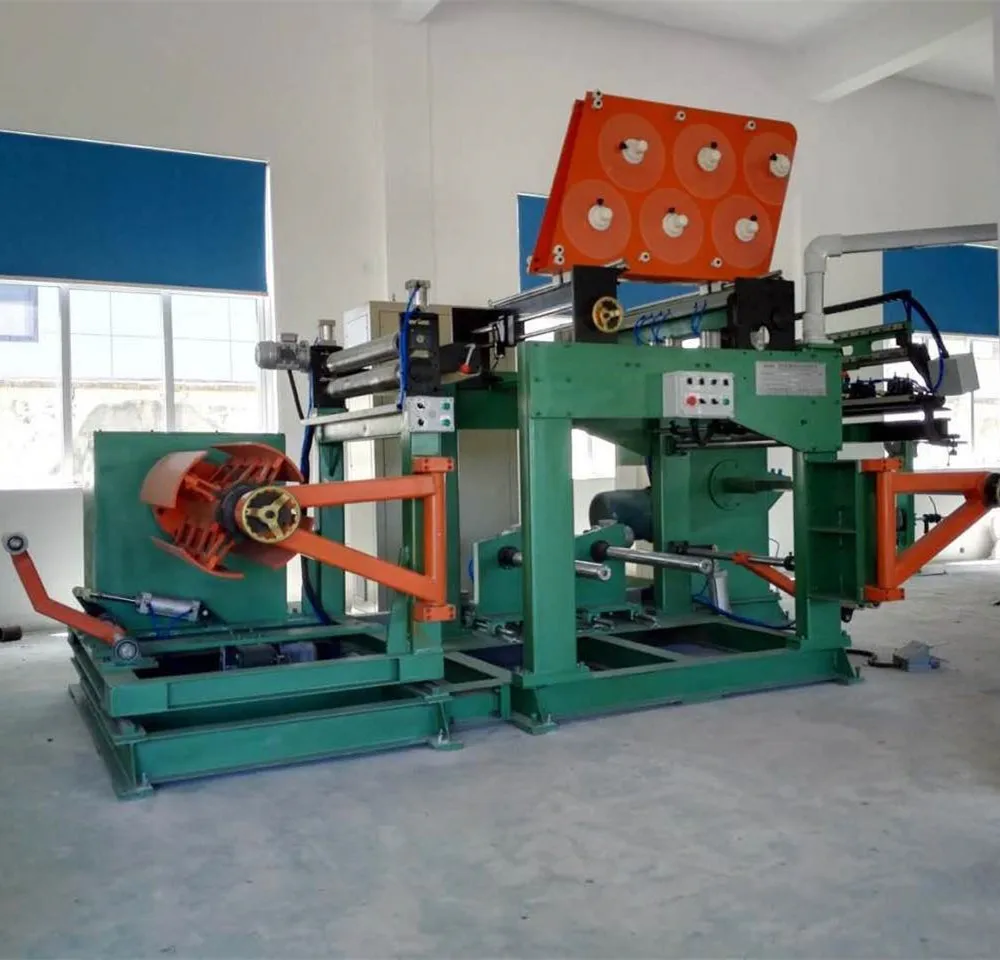

Detailed Images
Parameter

Technical
BRJ400-2
BRJ600-2
BRJ800-2
BRJ1000-2
BRJ1400-2
Foil width
400mm
600mm
800mm
1000mm
1400mm
Winding diameter
Φ130-600
Φ130-800
Φ130-800
Φ130-1000
Φ130-1000
Winding type
Round / Rectangle
Material thickness
Copper: 0.2-2.0mm, Aluminum: 0.3-3.0mm
Foil decoiler capacity
500KG
1000KG
1500KG
2000KG
2500KG
Winding power
11KW
11KW
11KW
15KW
22KW
Winding speed
0-30r/min
0-26r/min
0-24r/min
0-20r/min
0-18r/min
Welding type
TIG
Cutting type
Electrical roll cutting
Layer insulation width
≤450mm
≤650mm
≤850mm
≤1050mm
≤1450mm
Insulation diameter
φ76-400mm
φ76-400mm
φ76-400mm
φ76-400mm
φ76-400mm
Rectification
Photoelectric sensor automatic rectifying
Rectification precision
±0.5mm
±0.5mm
±0.5mm
±0.5mm
±0.5mm
Controlling
PLC automatic control
Recording
0--9999.9, Precision 0.1
