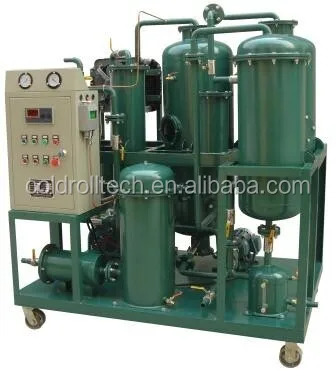

Electric Power Department Portable Vacuum Transformer Oil Purifier

FOB Reference Price:Get Latest Price
$8,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TYA-10
Customization:
size (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Transformer manufacturing
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Working pressure:
≤0.5Mpa
Temperature:
0~+100℃(adjustable)
Heating power:
30KW
Noise:
<75db
Total power:
33KW
Oil filter input diameter:
32mm
Continuous working time:
≥120h
Total weight:
550Kg
Dimension:
1400*1000*1600mm
Working vacuum:
≤133pa
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
sea worthy packing, plywood case packing
Port
Shanghai


Dear buyer,

We are a professional supplier of transformer machines.



Please feel free to send us your requirements, so that we can make a suitable quotation for you.

Waiting for your inquiry!

Thanks&regards,

Shirley

Whatsapp: 0086 188 0056 1506

shirley at haoshuomachine . com
Wuxi Haoshuo Technology Co., Ltd.



The machine is mainly used for electric power department and industries to deal with carious oils such as transformer oil, mutual oil, switch oil, dielectric oil and so on. The oil will be dehydrating, degassing and purifying with high performance and high speed.



This machine is high effective and portable, which is very suitable to operate on line. Also it can be used to dry the electirc equipment and input the oil into the electric equipment under the vacuum state.



High vacuum limiting vacuum less than 5pa, working vacuum less than 35pa.



High absorption speed, absorption speed power more than 333L/s.



Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively.



Automatic perssure protection, temperature control and oil level control.



Low noice, easy operation and maintenance.



1. Power: 415V, 3 phases, 50Hz

2. Working pressure: ≤0.5Mpa

3. Working temperature: 0~+100℃(adjustable)

4. Heating power: 30KW

5. Noise: <75db

6. Total power: 33KW

7. Oil filter input diameter: 32mm

8. Continuous working time: ≥120h

9. Total weight: 550Kg

9. Dimension: 1400*1000*1600mm

10. Working vacuum: ≤133pa

11. Limit vacuum: ≤10Pa

12. Pump rate: 3000m3/h

13. Working mode: manual and automatic

14. Moisture content after purifying: ≤5PPM

15. Insulating oil breakdown voltage: ≥60KV

16. Oil content: ≤0.1%

17. Mechanical impurities: N/A

18. Acetylene gas content: N/A

19. Dielectric loss factor: ≤0.1%(≤80℃)
