Ladder Type Cable Tray Roll Forming Machine/ Cable Tray Production Line

FOB Reference Price:Get Latest Price
$60,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HS-RFM-CT
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Condition:
New
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Shaft diameter:
76mm
Material of forming rollers:
GCr15, HRC58-62, Chroming of 0.05mm thickness
Control System:
PLC(imported Brand)
Encoder:
Omron Brand
Frequency Converter:
Yaskawa
Touch Screen:
MCSG
Color:
Buyer's Request
Material of Cutting Blade:
Cr12
Cutting type:
Hydraulic Cutting
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
One 40 GP container for shipment.
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Product Description

Cable trays are used as an alternative to open wiring or electrical conduit systems, and are widely used for cable management in industrial and commercial construction. Our cable tray roll forming machine can manufacture superiority cable trays with less cost.

Detailed Images

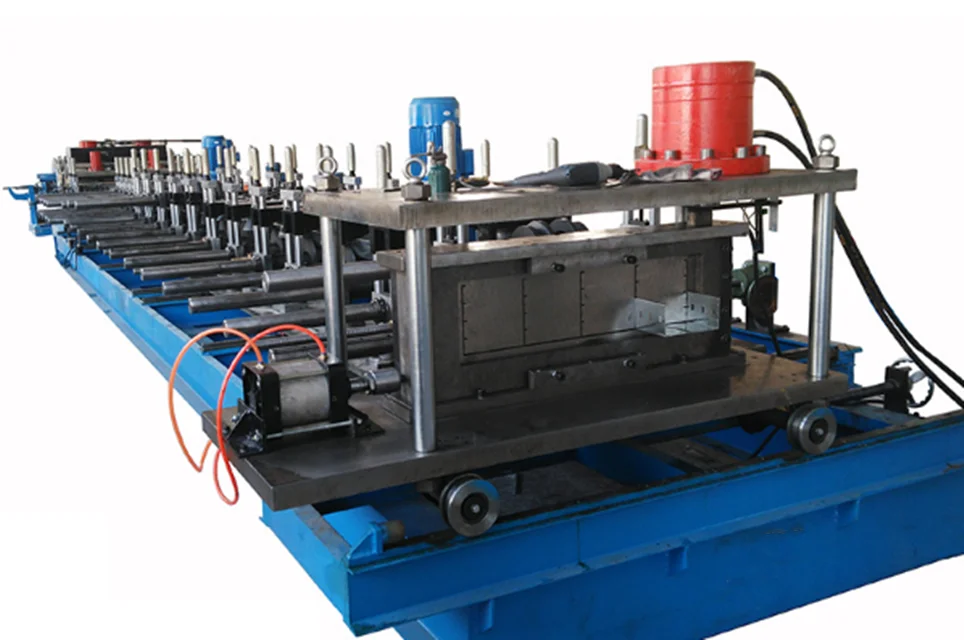

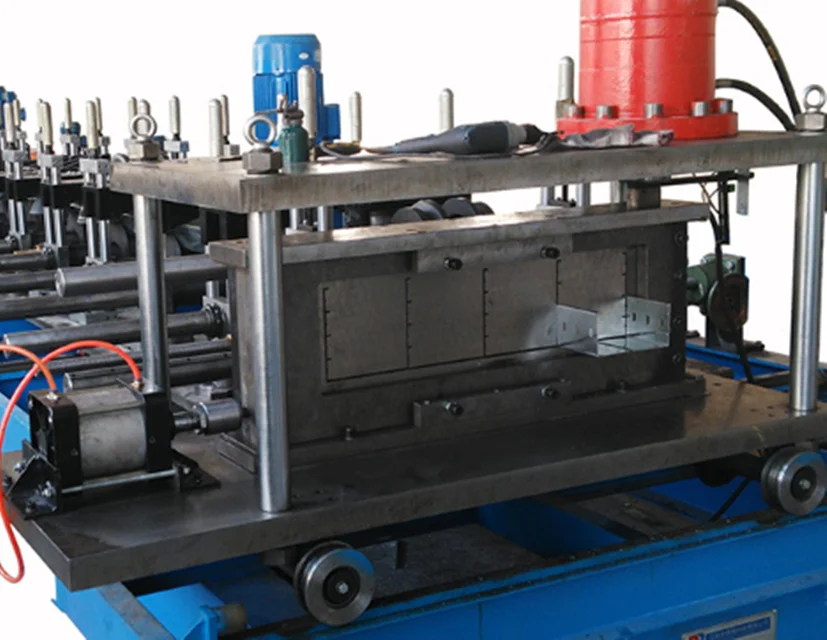

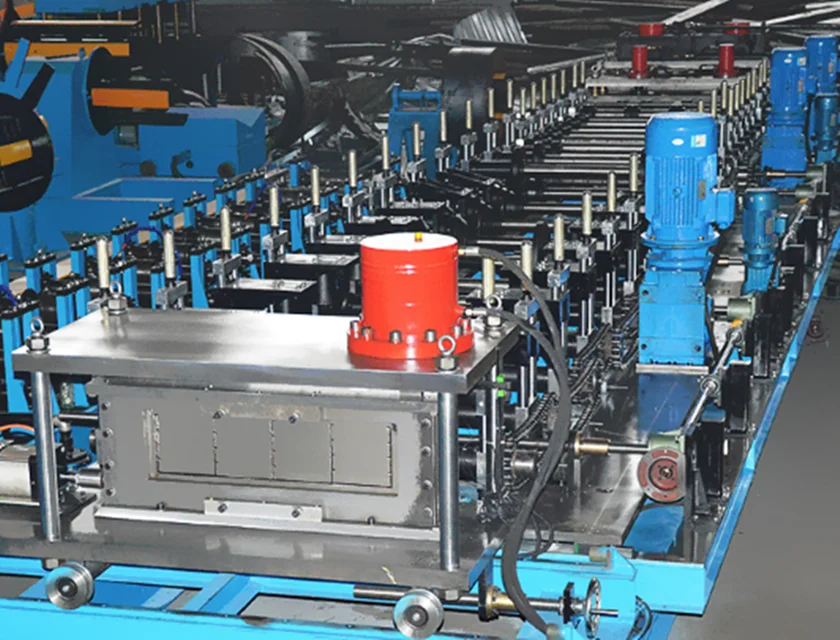

Cable Tray Roll Forming Machine
Steel Thickness
As per your requirements
Width of Product
100-600mm
Raw Material
Carbon steel, GI, Q235, etc.
Maximum Coil Weight
5T
Forming Speed
10-15m/min
Line Speed
6-8m/min(include punching and cutting)
Shaft Diameter
¢76mm
Shaft Material
45# Steel With Quenched Treatment HRC 48-52, surface chromed
Roller Material
Gcr15 steel tempered and quenched, chrome coated 0.05mm
Material of Punches
Cr12, HRC 58-62, chrome coated
Motor Power
7.5-37kw
Blade Material
High quality Cr12mov
Tolerance
≤±2mm/10m
Forming Station
16 Stations
PLC System
Panasonic
Encoder
Omron
