FHH-2000 Amorphous Alloy Transformer Core Automatic Cutting Line

FOB Reference Price:Get Latest Price
$30,000.00 - $150,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
1 Year
Suitable amorphous alloy width:
140-232mm
Cutting length:
300-3000mm
Cutting thickness:
Max 15 layers each 0.025mm thick
Cutting angle:
90°
Cutting length precision:
±0.5mm
Cutting angle precision:
±0.5°
Stacking precision:
±0.5mm
Speed:
0-30pcs/min
Coil weight:
1000kg
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy packing for amorphous core line
Port
Shanghai
A LETTER FOR YOU

Dear buyer,

1. Please feel free to contact us.

2. Send us details, so that we can make a quotation for you.

3. Click ' Add to Compare' if you have any interest.

Waiting for your inquiry!

Thanks&regards,

Shirley

Whatsapp: 0086 188 0056 1506
Wuxi Haoshuo Technology Co., Ltd.

Description

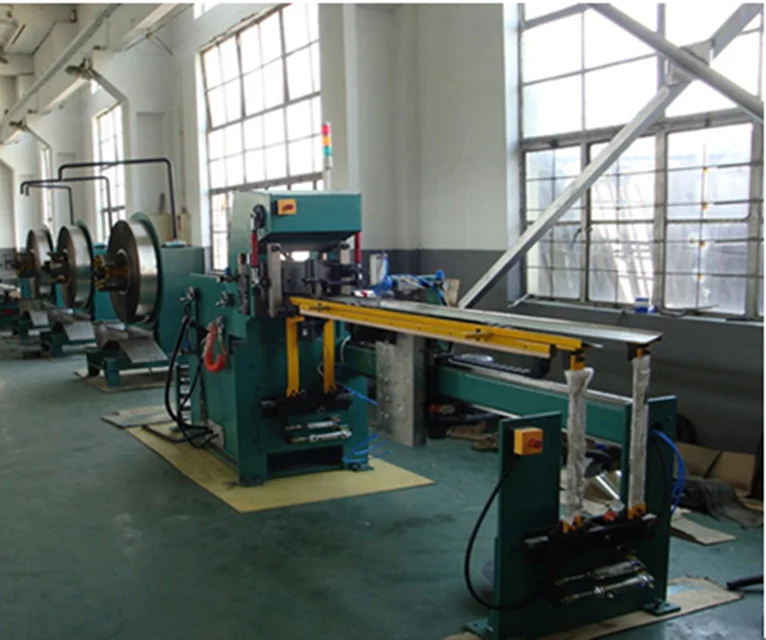

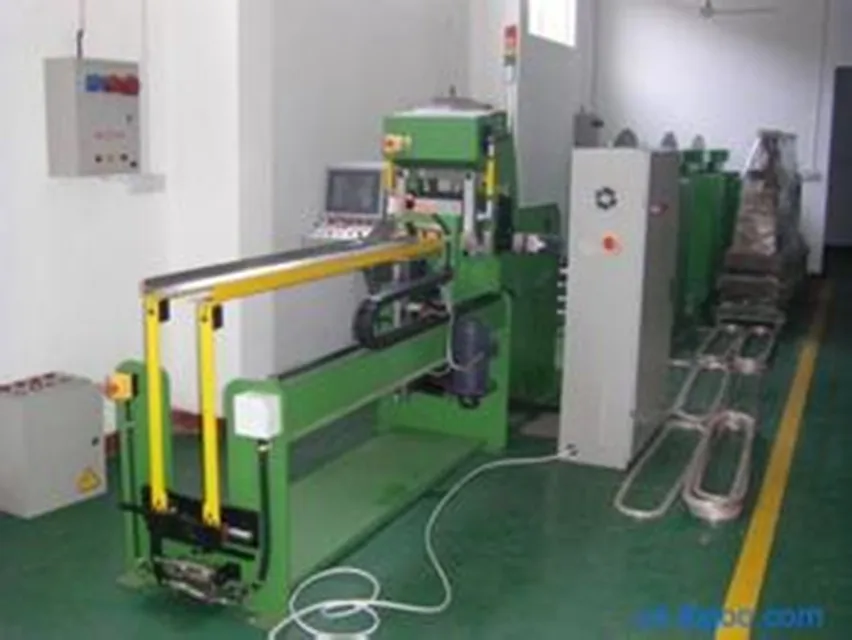

This amorphous alloy core cutting line is mainly used for the automatic cutting and stacking of the amorphous alloy transformer core. This line adopts PLC control, servo drive, touch screen operation. It has high automation, high productivity and high reliability.

Detailed Images

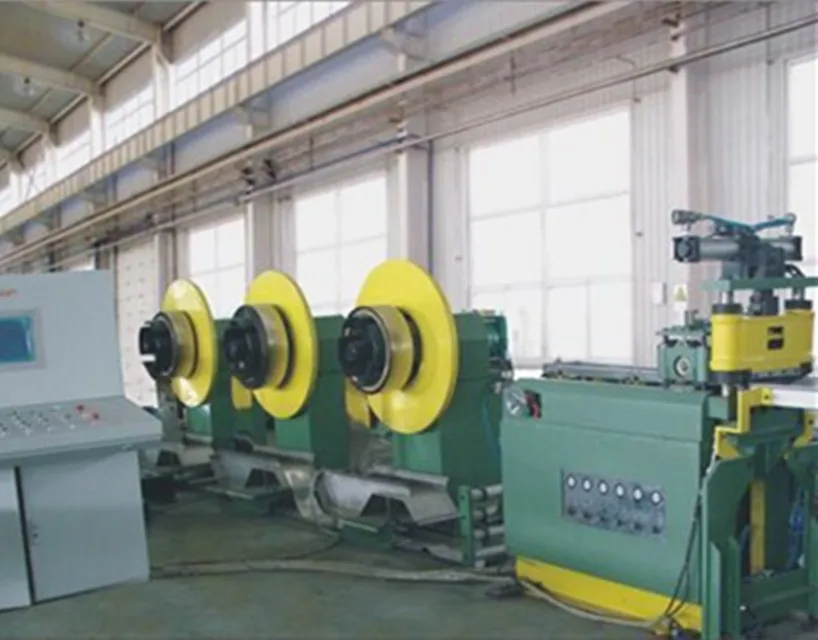

1. The decoiler is compact in structure, mechanical driven independently, adopts frequency stepless speed regulation, and has the function of automatic tracking control. Three sets of decoilers can be operated separately, also can be used together with cutting and automatic stacking system.

2. AC servo system is applied to preset length feeding with high accuracy.

3. High-power servo motor is applied to the shears that completes the cutting through speed variation mechanism and crankshaft connecting rod mechanism. The carbide alloy cutter has long lifetime.

4. Operation HMI of advanced touch screen, convenient for setting parameter, and choosing sheet shapes and saving size, and monitoring operation of the production line.

5. The production line has simple and reasonable structure' adoption of a great deal of standard parts makes it easy for maintain and upgrade.
