Automatic Transformer Corrugated Fins Wall Panel Seam Welding Machine Made In China

FOB Reference Price:Get Latest Price
$40,000.00 - $60,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
orrugated fin welding
Customization:
Size (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haohsuo
Condition:
New
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Spec:
A1300*400
Outline dimension:
230*4000*1800
Power:
3.2KW
Welding fin width:
300-1300mm
Welding fin height:
40-400mm
Control system:
Siemens PLC
Touch screen:
Siemens
Electric elements:
Schneider
Stepping motor powe:
100W
Infrared sensor:
ROKO, Taiwan
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy packing for tank welding machine
Port
Shanghai
Video Description
Description

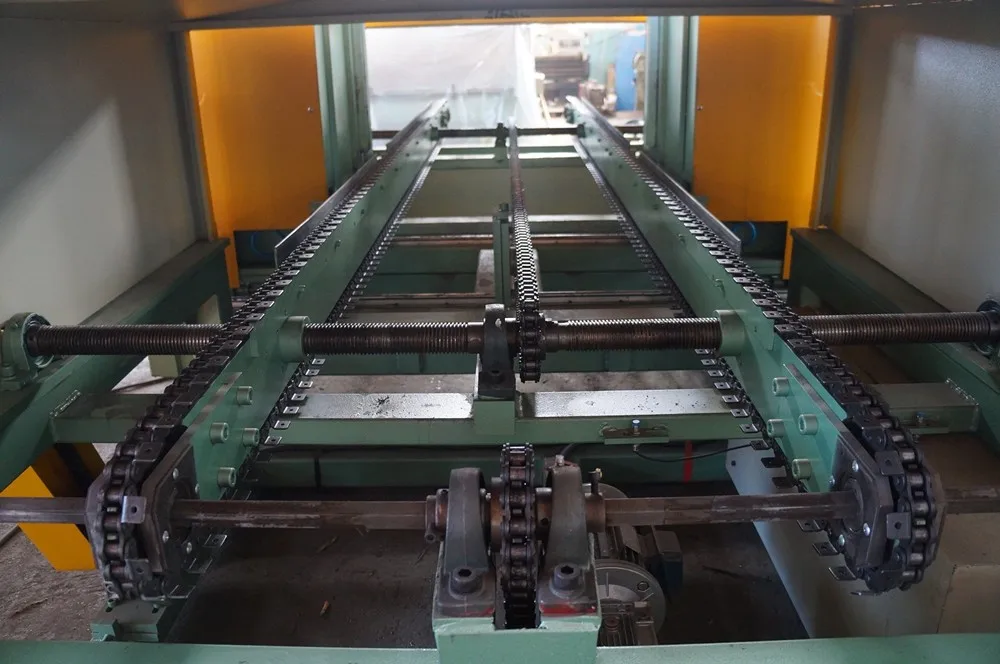

This corrugated tank welding machine is special designed for welding the corrugated fins. Use air cylinder to clamp the fin,TIG welding gun move from top to bottom to weld the fins properly. Then the fins move forward and weld again.


Looking for this transformer corrugated fin tank seam welding machine or any other transformer machine please do not hesitate to send us an inquiry!

Detailed Images
Item
Data

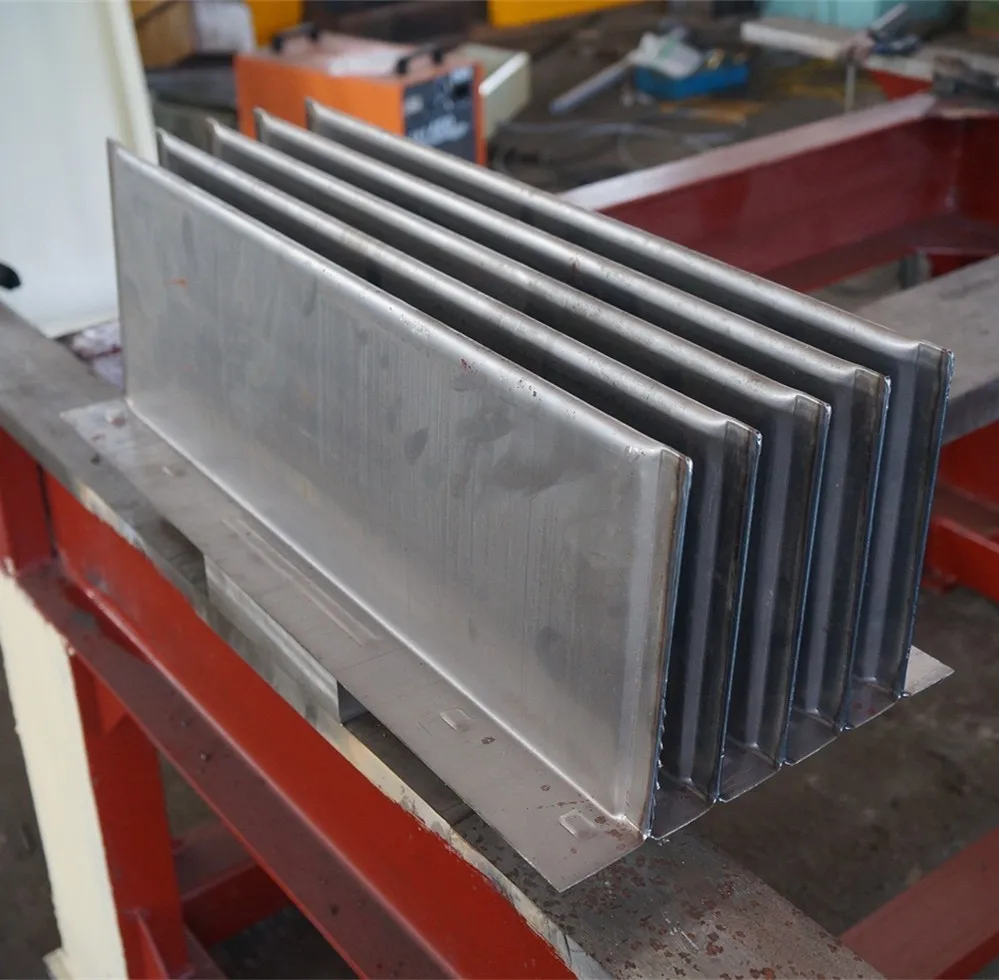

Fin Spec
Suitable material
Carbon steel
Steel thickness
1-1.5mm
Forming width
Max. 1300mm
Fin height
100-400mm
Pith distance
43-80mm
Fin gap
8mm
Motor for fin forwarding
1.1KW
Motor for width adjusting
1.5KW
Motor for welding gun moving
Step less motor 100W x 2 sets

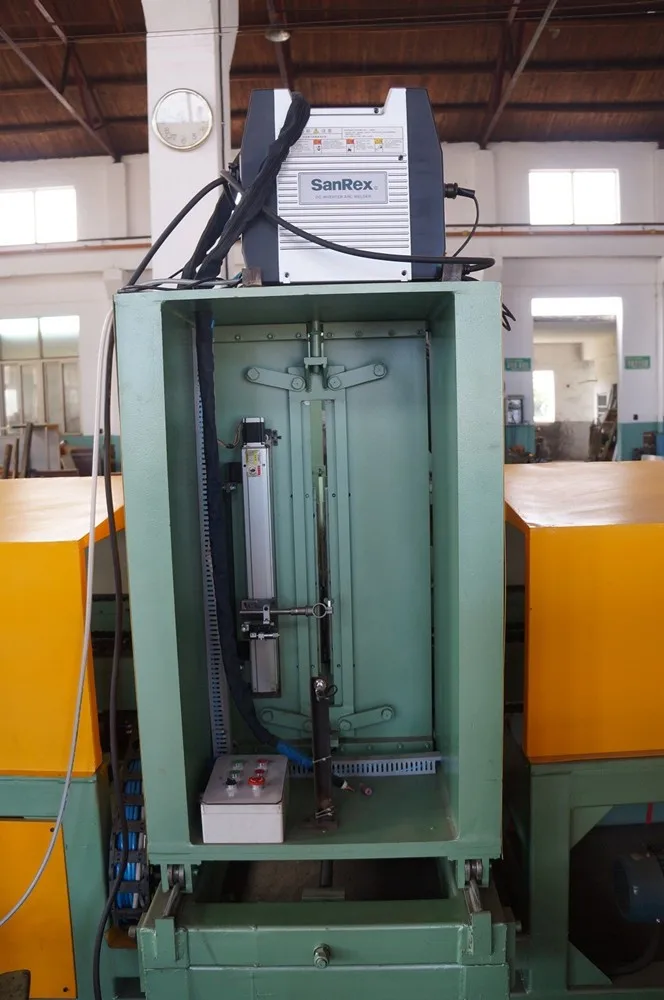

Welding machine
SanRex (Japan) TIG welder, 2 sets

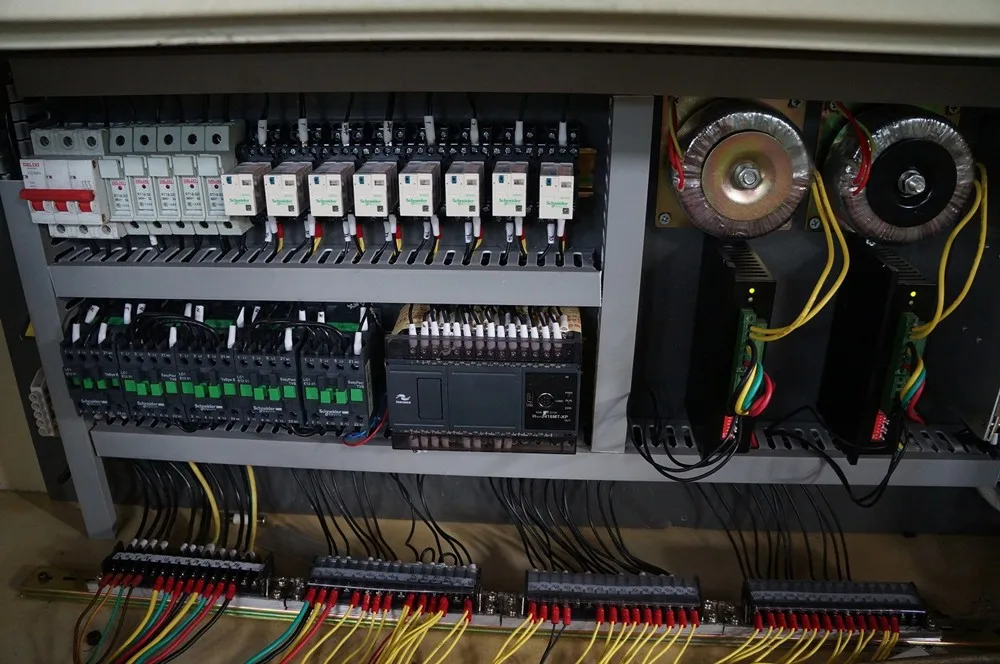

PLC system
Inovance (China) brand
Touch screen
Inovance (China) brand
Machine dimension
4000 x 2000mm (L x W)
