ZZ400 Transformer Core Center Limb Cutting Line

FOB Reference Price:Get Latest Price
$30,000.00 - $150,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Model Number:
ZZ400
Voltage:
AC380V±10%/50Hz
Rated Power:
13.5KW
Dimension(L*W*H):
8M x 2.5M x 3M
Weight:
8T
Certification:
CE ISO
Silicon steel thickness:
0.23-0.5mm
Burr:
≤0.02mm
Steel width:
40-400mm
Step-lap cutting width:
365mm max
Length tolerance:
≤0.1mm
Hole diameter:
made as per demand
Workpiece length:
150-2500mm
Cutting angle accuracy:
±0.05°
Paint of the machine:
according to Buyer's demands
Line direction:
left to right, or as per your need
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Lead Time :
Shipped in 60 days after payment
Video Description
A LETTER FOR YOU

Dear buyer,

1. Please feel free to contact us.

2. Send us details, so that we can make a quotation for you.

3. Click ' Add to My Favorites' if you have any interest.

Waiting for your inquiry!

Thanks&regards,

Rene Chen

Whatsapp: 0086 159 6183 9091
Wuxi Haoshuo Technology Co., Ltd.

Product Description

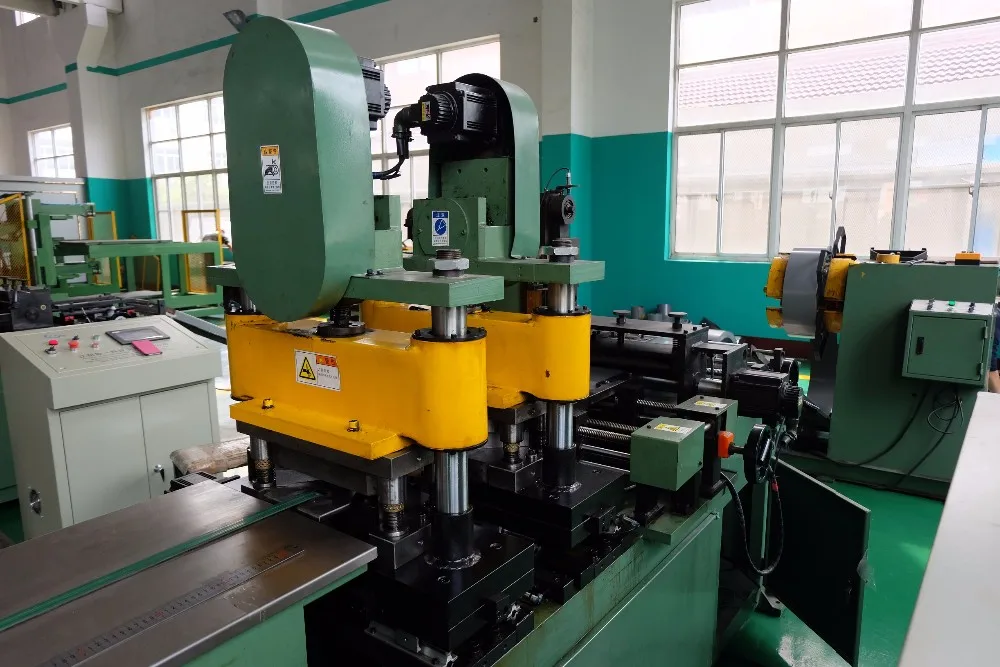

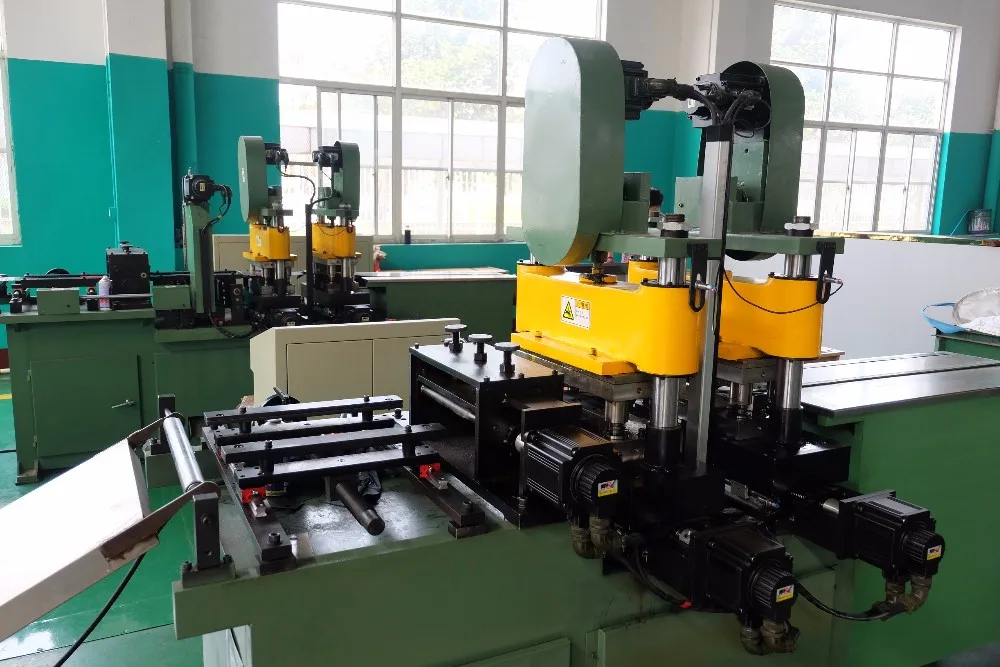

This production line is automatic cutting line specialized for transformer center limb production, it has two V cut shears. This line does not needs foundation work. Compared with ‘two shear + two punch’ type core cutting line to cut center limb, this line only needs two time cut to finish one center limb production, the cutting speed is fast and the precision is more accurate. It is the necessary machine for core production when the quantity is large. All electric elements use international famous brand products. The line has high stable performance with high precision.

Work Process

Coil decoiling – guiding – servo feeding – hole punching – servo electric shear – product receiving
