XE400 Automatic Reactor Core Cutting Line

FOB Reference Price:Get Latest Price
$10,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Model Number:
XE400
Voltage:
AC380V±10%/50Hz
Rated Power:
8KW
Dimension(L*W*H):
8M x 2.5M x 3M
Weight:
8T
Certification:
CE ISO
Silicon steel thickness:
0.23-0.5mm
Burr:
≤0.02mm
Steel width:
25-400mm
Length tolerance:
≤0.05mm
Diagonal tolerance:
≤0.05mm
Hole diameter:
made as per demand
Workpiece length:
10-9999mm
Feeding speed:
max 120m/min
Paint of the machine:
according to Buyer's demands
Line direction:
left to right, or as per your need
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Lead Time :
Shipped in 60 days after payment
A LETTER FOR YOU

Dear buyer,

1. Please feel free to contact us.

2. Send us details, so that we can make a quotation for you.

3. Click ' Add to My Favorites' if you have any interest.

Waiting for your inquiry!

Thanks&regards,

Rene Chen

Whatsapp: 0086 159 6183 9091
Wuxi Haoshuo Technology Co., Ltd.

Product Description

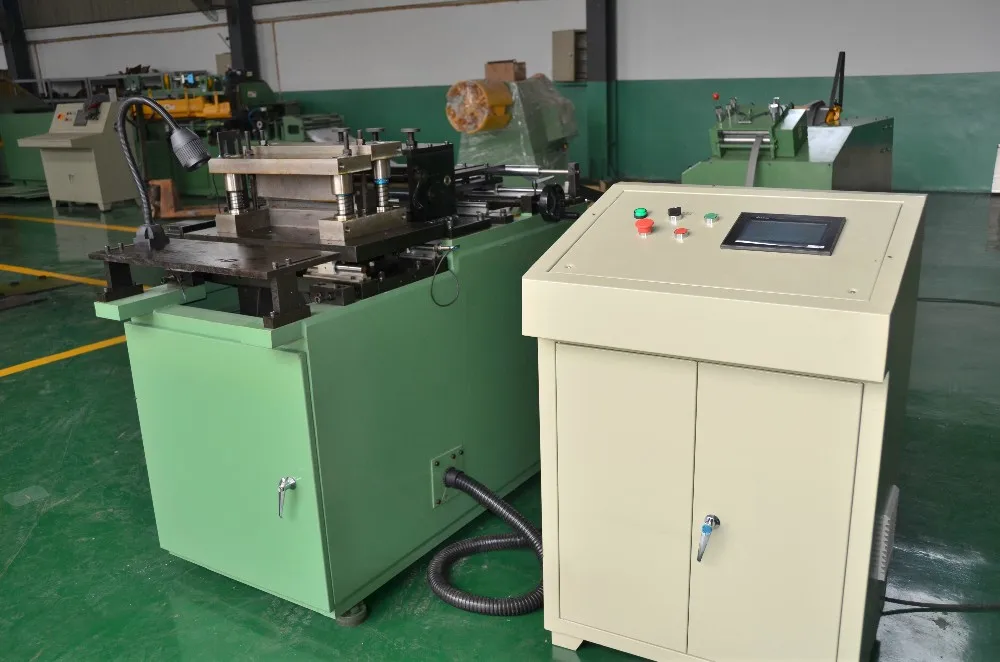

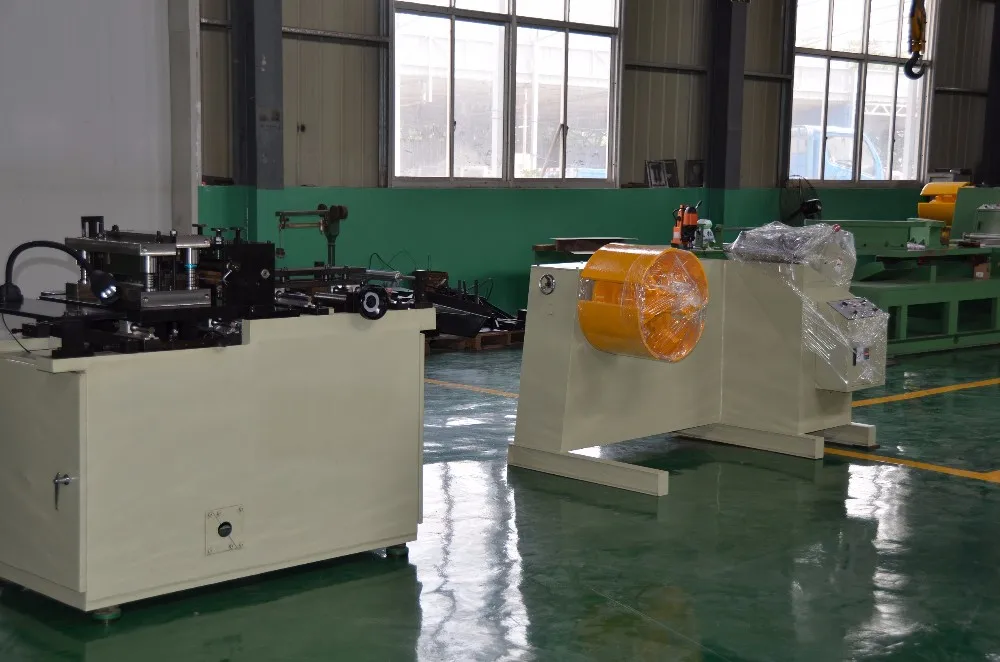

This line is specially for reactor core cutting and production. This production line is automatic cutting line for silicon steel coil, is necessary production equipment for transformer lamination manufacturing. It can cut 90 degree with hole punching. The line can be suitable for cutting rectangular shapes of work pieces used in the reactor industry. Our production line has high quality with high speed. All electric elements use international famous brand products. The line has high stable performance with high precision.

Work Process

Coil decoiling – guiding – servo feeding – hole punching and servo electric shear – product stacking
