High Precision Slitting Machine 0.3-3*1600mm Stainless Steel Slitting Line

FOB Reference Price:Get Latest Price
$190,000.00 - $260,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 Negotiable
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
1 Year
maximum coil weight:
Material thickness:
Length accuracy:
±1.0mm (L=2000m)
Diagonal accuracy:
±1.5mm (L=2000mm)
Leveling accuracy:
Total weight:
about 60 tons
Paint of the machine:
according to Buyer's demands
Total power:
pprox. 210KW
Supply Ability
Supply Ability:
40 Set/Sets per Year
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 120 To be negotiated
Video Description
Product Description

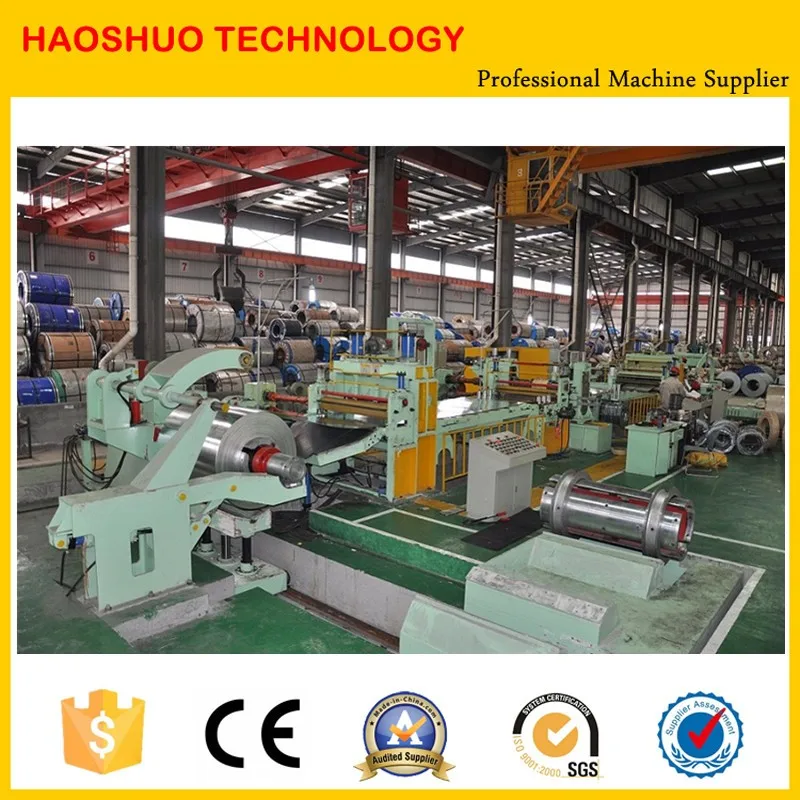

Stainless Steel Slitting Line

As a professional supplier of slitting line and cut to length line with more than 10 years exporting experience, we supply Chinese leading slitting line. Have any requirement please do not hesitate to send us an inquiry.

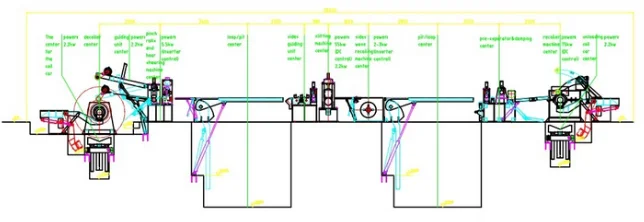

Components&Work Flow

Loading trolley→ un-coiler→ guiding device→ pinch roll feeder→ entry crop shear → buffer pit 1→ centering device→ rotary slitter→ scrap winder→ buffer pit 2→ pre-separating and tensioning→ re-coiler→ unloading trolley

Machine Common Data

1. Standard power source: AC380V±10%/50Hz, or as per Buyer's requirement

2. Main power: about 210KW

3. Machine speed: 0-120mpm

4. Machine outline(L×W): about 20M×8M

5. Installation height: about 3M

6. Weight: Approx 60 ton

7. Operators for the machine: 4-5 workers

8. Paint of the machine: main body in green, safety area in yellow (or according to Buyer's demands)

9. Running direction (decoiling direction): right to left, or as per your requirement
