Variable Pressure Vacuum Drying Oven for Transformer Tank and Coil Drying

FOB Reference Price:Get Latest Price
$50,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Model Number:
HS-35A
Condition:
New
Application:
vacuum drying for transformer
Heating source:
thermal conductive oil
Oil filling:
optional
Leakage rate:
≤100Pa L/S
Limit vacuum:
≤30Pa
Rotary vacuum pump:
Germany Leybold SV-300B
Door locking:
cylinders and Staggered gears
PLC:
Mitsubishi Japan
HMI:
VeinView Taiwan
Loading trolley:
Electrical driven
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing for vacuum drying oven, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof, one 20 FR and one 20 GP containers for shipping
Port
Shanghai
Lead Time :
within 60 days after advance payment
Product Description

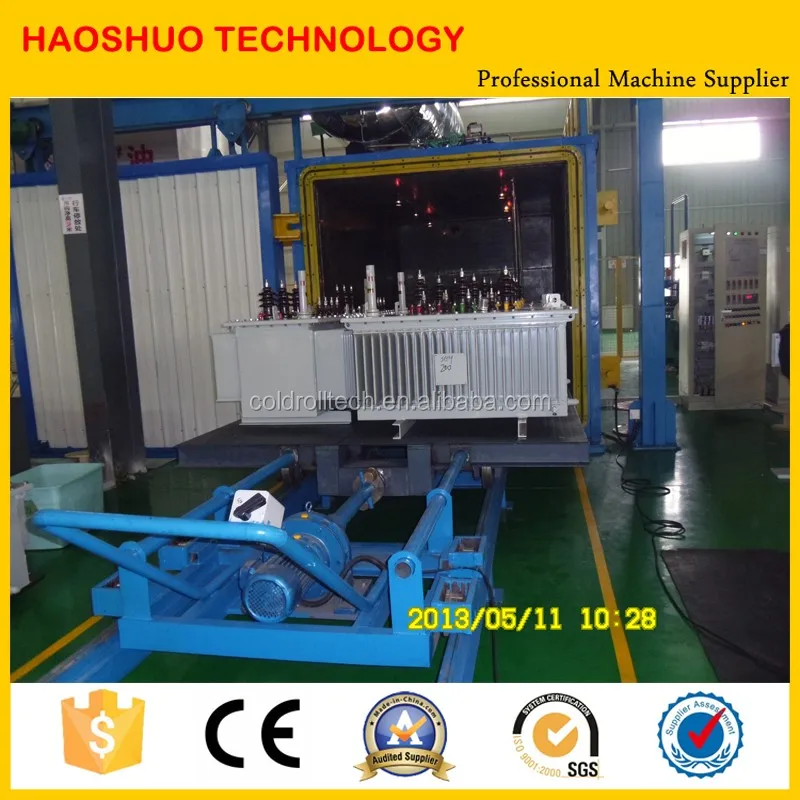

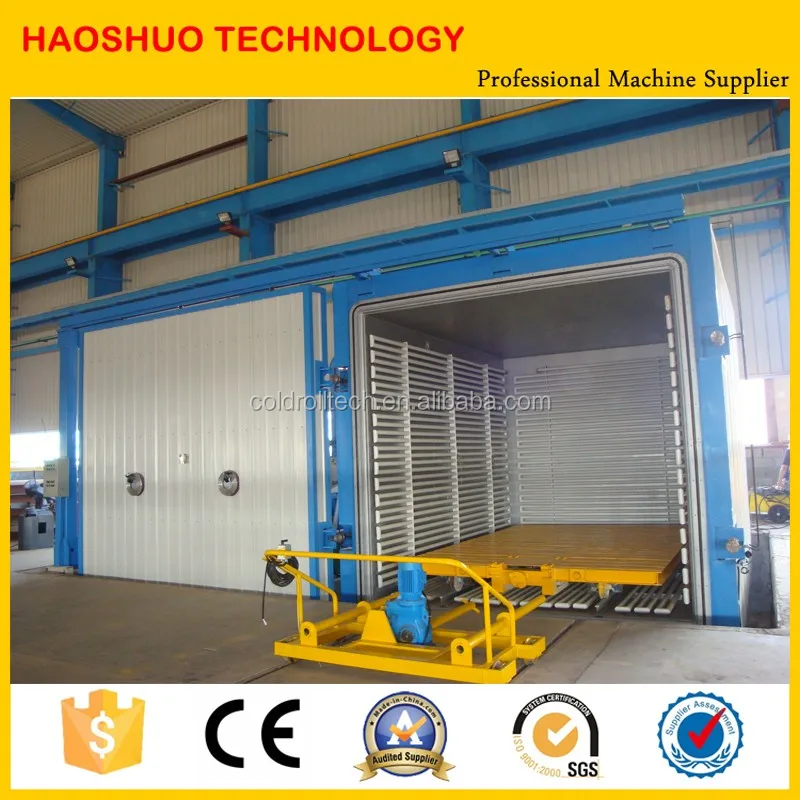

Variable Pressure Vacuum Drying Oven for Transformer Tank and Coil Drying





The vacuum drying equipment is designed for drying the parts and elemetns of transformers, reactors, and related electrical products. The equipment adopts variable pressure drying principle suggested by Dr. Moll from Germany. It can save about 30-45% time of drying compared with conventional vacuum drying system. Rectangle and round drying chamber can be option according to the production need.



Applications:

10-110KV/100MVA level transformer body drying

110-500KV level transformer winding drying

110-1000KV level current/voltage reactor body drying

capacitor drying

other electrical material drying



Main components of the Vacuum Drying Equipment

SerialComponentQuantity
1 Vacuum drying chamber system 1 set
2 Door open system 1 set
3 Trolley and driving device 1 set
4 Vacuum system 1 set
5 Low temperature condensate system 1 set
6 Heating system 1 set
7 Pneumatic pipeline system 1 set
8 Cooling water system 1 set
9 Hydraulic system 1 set
10 Control system 1 set
11 Heat preservation cover 1 set
12 Spare parts 1 set


Packaging & Shipping



Packaging:

The tank is covered with water proof cloth, other parts are packed by wooden case

using steel rope and wood block to fix the machine inside container,



Shipping:

The machine will be shipped by FCL, containers will be sent to our factory for loading.

The well-cooperated experienced shipping forwarder will take care all the shipping as well as custom clearance.

Before shipping we will inspect the machine and test run the machine in our factory.



Detailed Specification and configuration of the vacuum drying equipment will be according to the effective drying chamber size. Please contact us for more details.
