HJX300/ 400/ 600/ 800 Fully Automatic CRGO Transformer Lamination Core Cutting Machine Line

FOB Reference Price:Get Latest Price
$60,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HJX400
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HS
Voltage:
AC380V±10%/50Hz
Dimension(L*W*H):
20M x 2M x 3M
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Silicon steel thickness:
0.15-0.5mm
Burr:
≤0.03mm
Steel width:
40-410mm
Width tolerance:
≤0.1mm
Linearity:
≤0.1mm/1000mm
Wavy:
≤15mm/1000mm
Workpiece length:
Workpiece length: 400-3500mm
Hole diameter:
dia. 10-24mm, hole size and position as per customer request
Paint of the machine:
according to Buyer's demands
Length tolerance:
±0.2mm/1000mm
Type:
Shearing Machines
Rated Power:
80KW
Weight:
20T
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy nude packing, using steel wire and wood block to fix the machine inside container, and using the film cover the machine for dustproof
Port
Shanghai
Video Description
Product Description

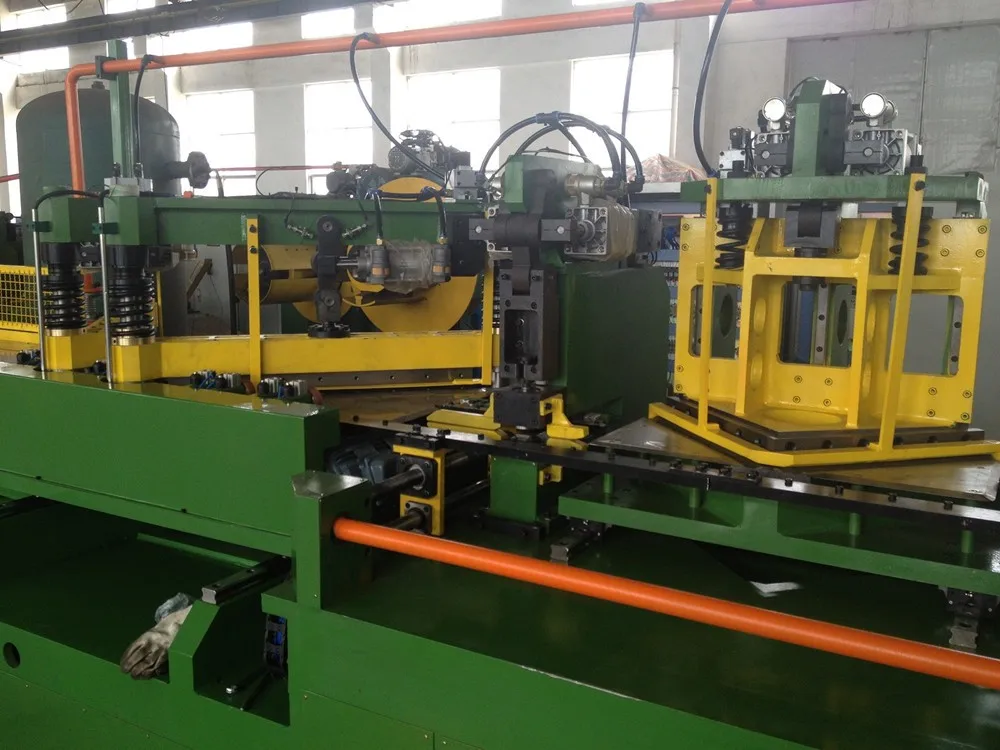

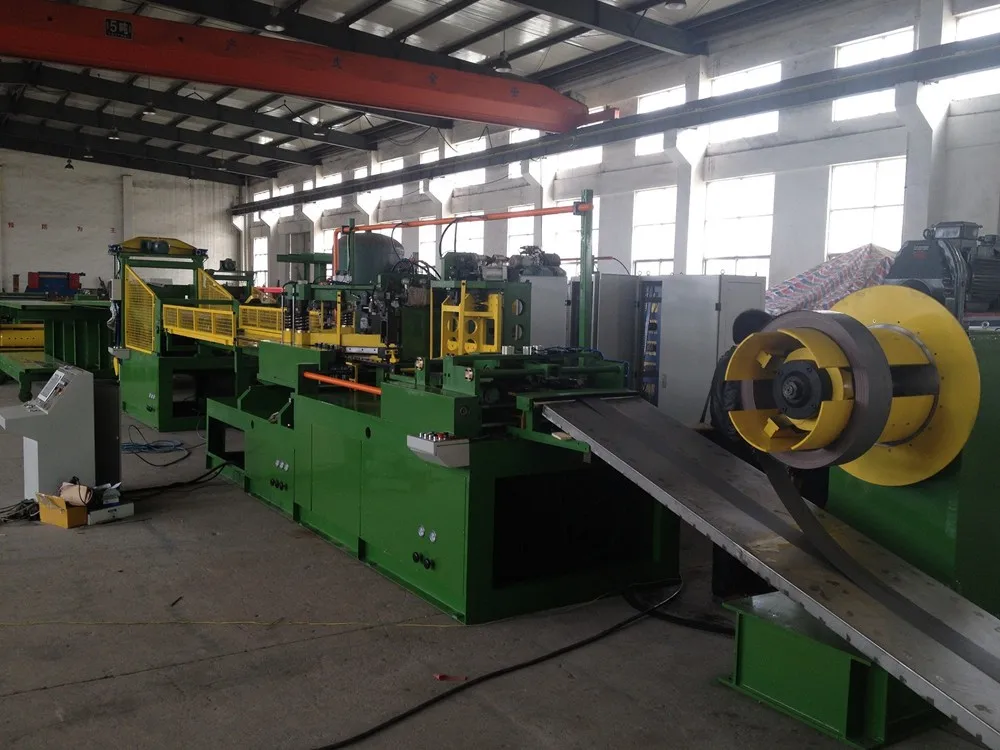

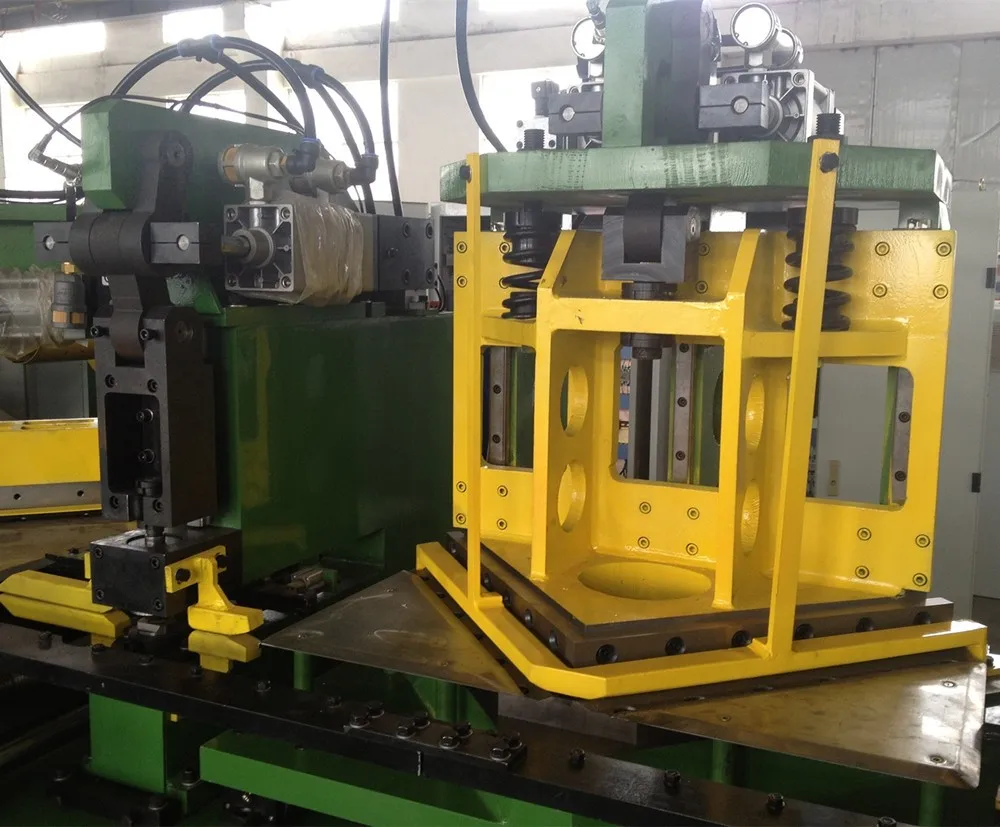

This production line is automatic cut to length line for silicon steel coil, is necessary production equipment for transformer lamination manufacturing. The line has 45 degree and 135 (or 90) degree shear, hole punching and v notching. The line can be suitable for cutting series shapes of work pieces used in the manufacturing of transformer industry. It also can cut step lap cores as per request. Our production line has high quality with high speed. All electric elements use international famous brand products. The line has high stable performance with high precision.

Work Process

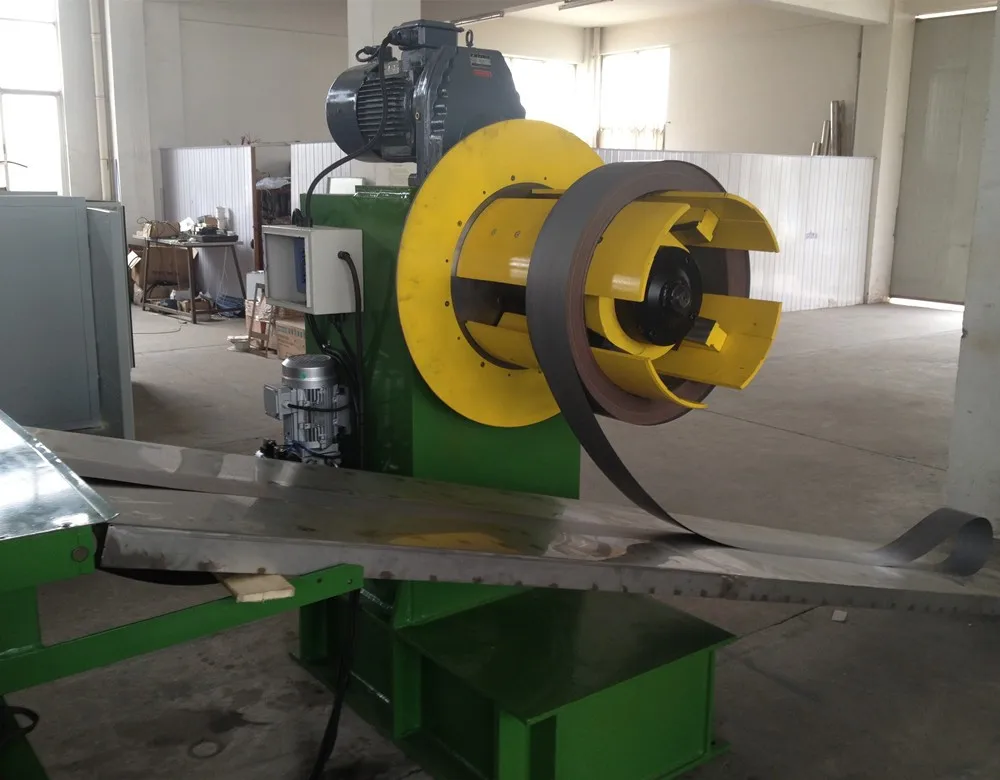

coil decoiling – speed adjusting – servo feeding for length measuring – hole punching – servo V notching – 45 (90) degree servo shearing – 135 degree servo shearing – belt conveyer – automatic product stacking
