Vacuum Drying Furnace for Power and Distribution Transformer Parts And Elements Vacuum Drying Oven Equipment

FOB Reference Price:Get Latest Price
$50,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
vacuum drying
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Haoshuo
Condition:
New
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Voltage:
Three-phrase 380V/220V
Heating temperature:
135 C
Type:
Fully Automatic
Oven size:
depends on need
Limit vacuum:
20Pa
Model Number:
HS-35A
Application:
vacuum drying for transformers
Certification:
CE ISO SGS
Heating medium:
heat transfer oil
Leakage rate:
100 Pa.L/s
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy packing for vacuum furnace
Port
Shanghai
Product Description

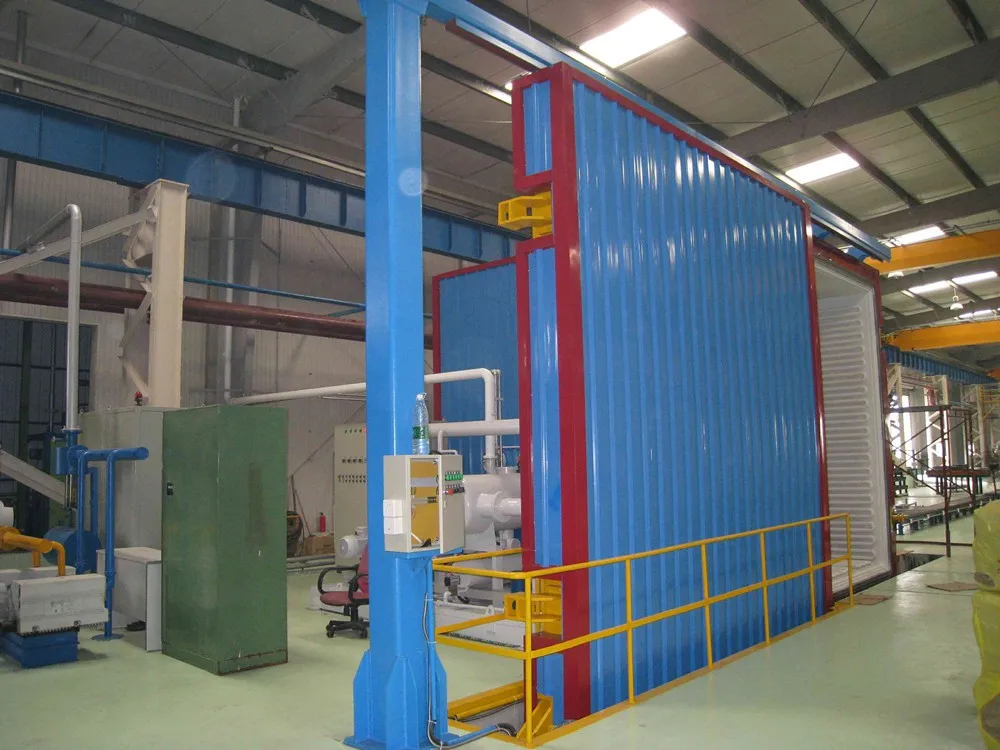

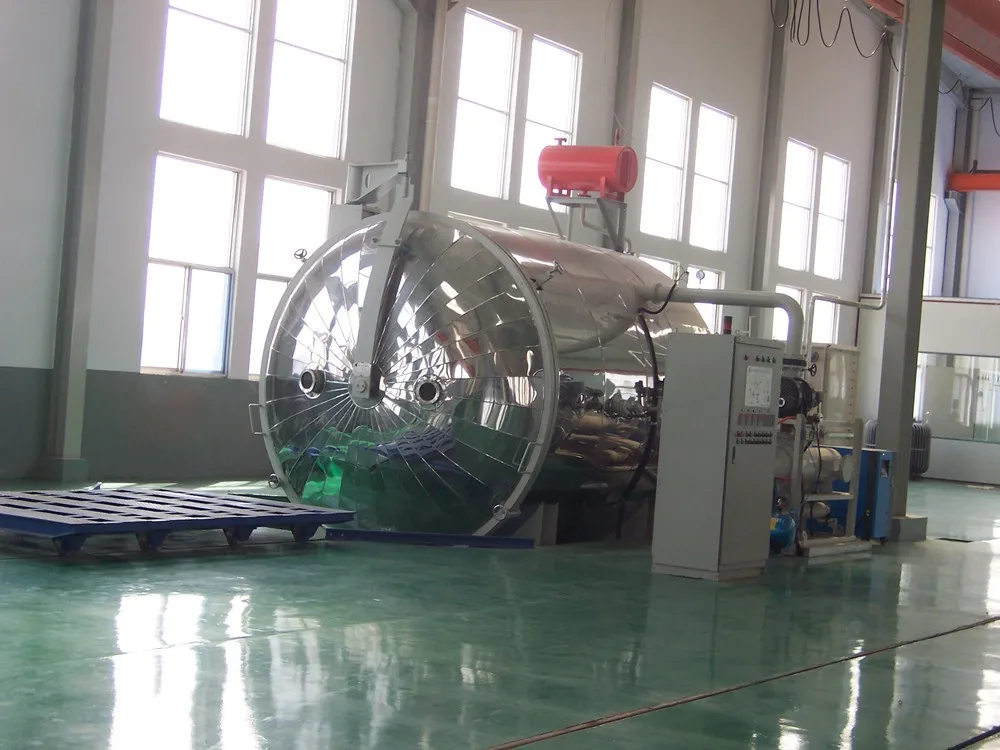

This vacuum drying oven is designed for drying the active parts of transformers under vacuum. The equipment is designed and manufactured with abundant experience and advanced technology, it can save about 40-50% time of drying compared with kindred products. It adopts automatically PLC control, supply drying processes (10KV & 33KV) for drying transformers 33KV 50MVA level products and other electric products.

Applications

10-110KV/100MVA level transformer body drying.

110-500KV level transformer winding drying.

110-1000KV level current/voltage reactor body drying.

Capacitor drying.

Other electrical material drying.

Characteristics

1.Advanced vacuum system design, enough condensate water release in the low temperature condenser, effectively prevent the contamination to the vacuum pump caused by the moisture in the drying process.

2.According to the b chamber body temperature during the heating process, adopt repeatedly alternating pressure automatically, periodically lower vacuum pressure in the tank to a certain value, to create the most suitable conditions for the evaporation of water within the insulation body, so that moisture from the drying vaporation process in a reasonable best state.

3.Through the alternating pressure drying process, product can effectively solve the rust problem of iron core during the drying process.

4.The level of automation and the level of the product of the treatment process of this equipment, reach advanced international level, and the product quality can reach the superior level product in the industry.

Main Components
Name
Quantity
Vacuum tank
1 set
Trolley and driving device
1 set

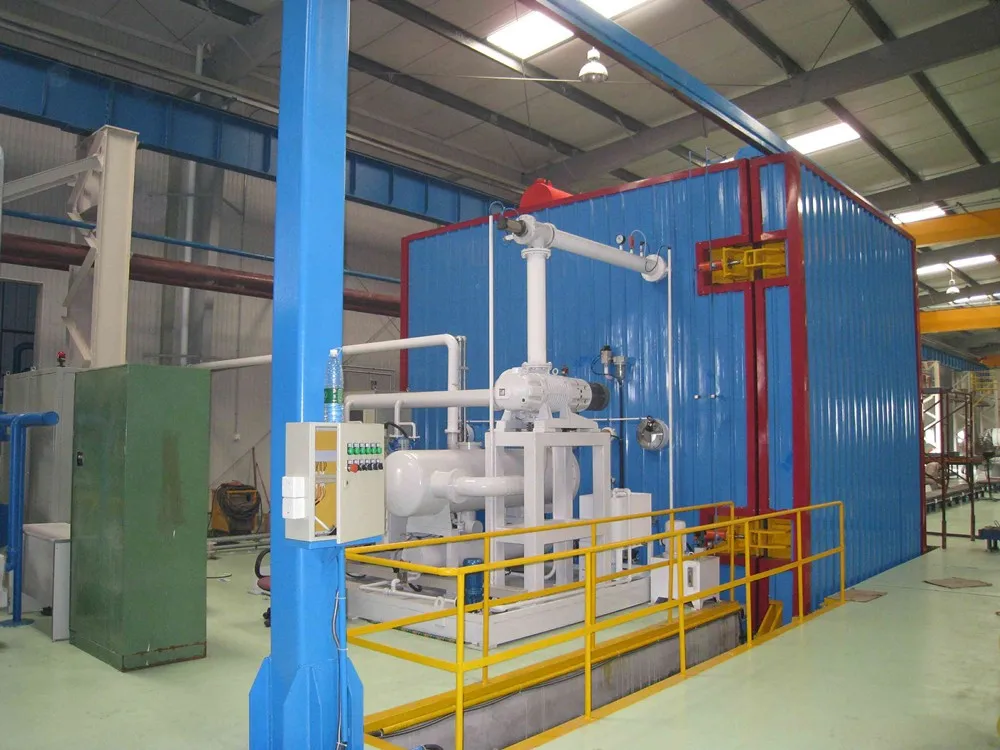

Vacuum pump system
1 set
Low temperature condensate system
1 set
Heating system
1 set
Pneumatic pipeline system
1 set
Cooling water system
1 set
Hydraulic system
1 set
Control system
1 set
